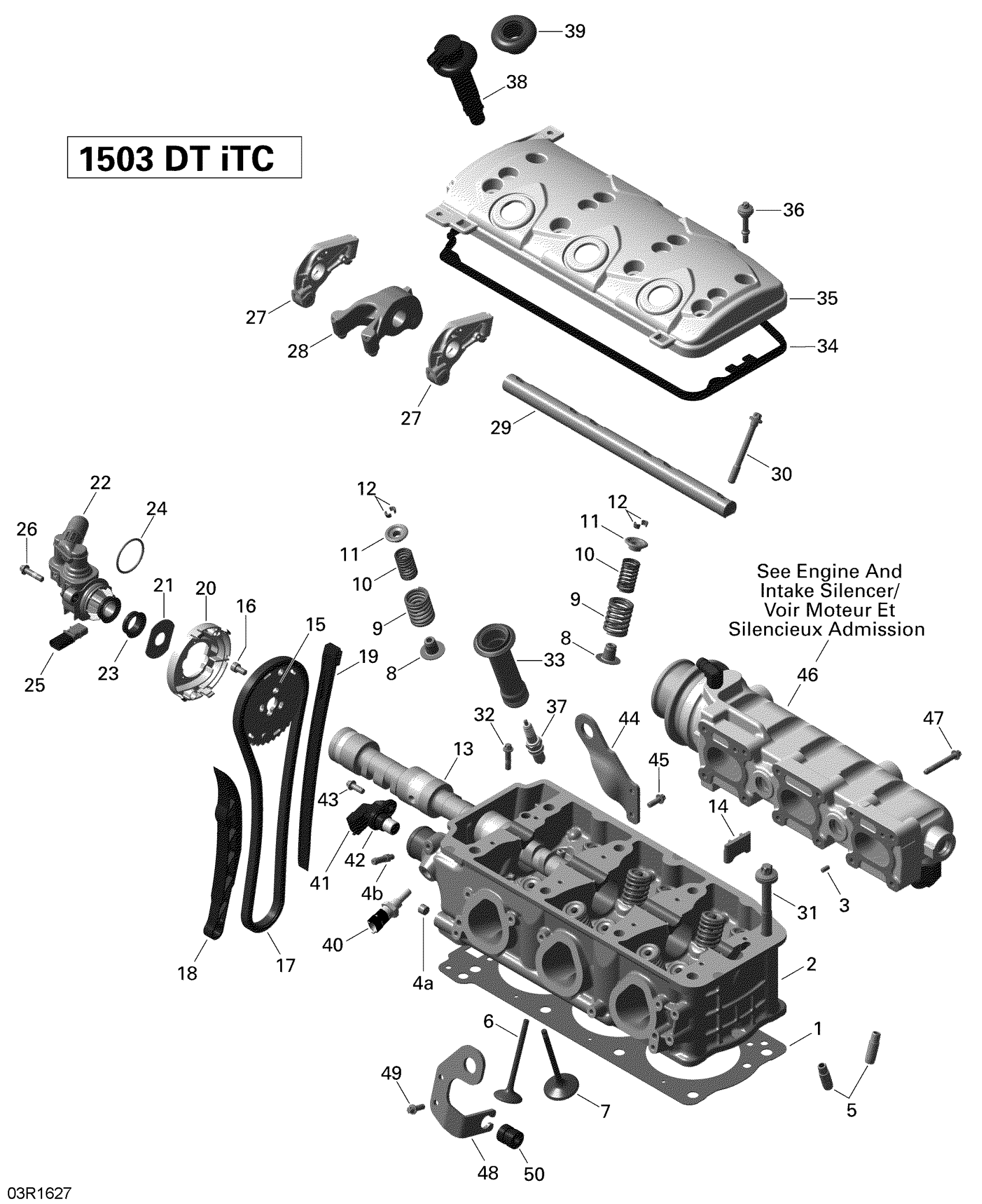

Sea-doo GTI-GTR-GTS, 2016 Cylinder Head - 130 Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

$121.99

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

$776.99

3

Drive Pin 5 X 10

420929650

$1.68

4a

Plug Screw M10 X 1

420641323

$14.28

4b

Hose Nipple

420924724

$14.83

5

Valve Guide | Inner diameter machined

420253929

$46.49

6

Exhaust Valve, 31 mm

420254682

$104.99

7

Intake Valve 38MM

420253163

$41.49

8

Valve Steam Seal

420630202

$7.90

9

Valve Spring

420238180

$15.89

10

Valve Spring Inside

420838280

$12.72

11

Valve Spring Retainer

420254283

$8.57

12

Valve Cotter

420253645

$7.41

13

CAMSHAFT - Call your local BRP dealership

420837854

Unavailable

14

Camshaft Guide

420851694

$31.99

15

Timing Gear, 38 Teeth

420254309

$69.99

16

Torx Flange Screw M6 X 12

420841080

$4.61

17

Camshaft Chain

420898042

$97.49

18

Chain Tension Guide

420236541

$15.89

19

Chain Guide

420236501

$14.28

20

Cover

420660037

$23.49

21

Thrust Washer

420627494

$7.41

22

Vent Valve Ass'y | Includes no. 39-42

420856504

$110.99

23

V-Ring 20S FPM Blow By Valve

420630125

$11.63

24

O-Ring

420950870

$5.39

25

TOPS Switch

420665951

$42.49

26

Torx Flange Screw M6 X 25

420641238

$3.27

27

Rocker Arm, Exhaust

420254329

$137.49

28

Rocker Arm, Inner

420254316

$179.99

29

Rocker Arm, Shaft

420854594

$201.49

30

Torx Screw M8 X 72

420641080

$5.29

31

Torx Flange Screw M11 X 147

420641110

$11.58

32

Torx Flange Screw M6 X 25

420641238

$3.27

33

Spark Plug Pipe

420851754

$27.49

34

Valve Cover Gasket | Included in gasket kit

420950820

$32.99

35

Valve Cover

420811589

$153.49

36

Allen Screw M6 x 30,5

420440561

$4.44

37

Spark Plug, NGK DCP-R8E

715900637

$6.35

38

Ignition Coil Kit This part replaces 420664020.

296000307

$104.99

39

Sealing Cup

420460830

$21.99

40

Temperature Sensor

278002895

$39.99

41

Camshaft Position Sensor Ass'y

420664046

$88.99

42

O-Ring

420631890

$5.18

43

Torx Flange Screw M6 X 16

420641048

$2.96

44

Transport Bracket PTO

420851618

$27.49

45

Torx Flange Screw M6 X 16

420641048

$2.96

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Torx Flange Screw M6 X 45

420641198

$4.12

48

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

Unavailable

49

Torx Flange Screw M6 X 16

420641048

$2.96

50

Rubber Bracket

420660090

$4.12
