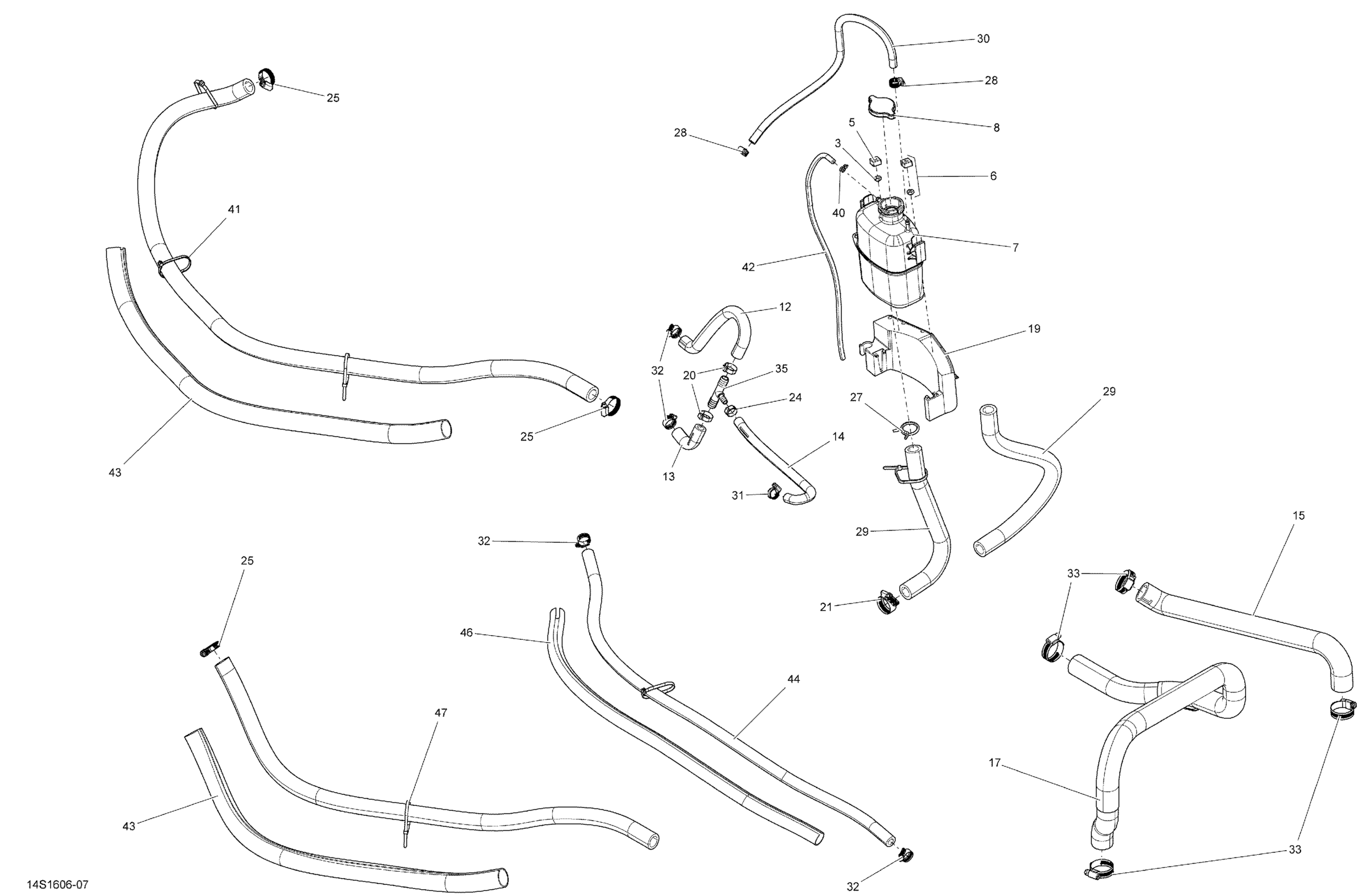

Sea-doo GTI-GTR-GTS, 2016 Cooling System Diagram

#

Description
Price

5

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

6

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

7

Coolant Tank

276000086

$100.72

8

Pressure Cap | Includes 720 to 720a

276000100

$23.85

12

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$17.88

13

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$17.88

14

Formed Hose | Without Catalyst

276000246

$17.13

15

RH Radiator Hose

276000248

$52.21

17

Hose-Left

276000355

$61.16

19

SUPPORT ASS'Y - Call your local BRP dealership

291003082

Unavailable

20

Oetiker Clamp

293650012

$5.67

21

Tridon Gear Clamp

293650019

$5.52

24

Oetiker Clamp | Europe

293650030

$4.96

25

Tridon Gear Clamp

293650051

$4.15

27

Spring Clamp

293650115

$2.82

28

Tridon Gear Clamp

293650170

$2.00

29

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

30

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

31

Tridon Gear Clamp

293650171

$2.82

32

Tridon Gear Clamp

293650172

$3.07

33

Tridon Gear Clamp

293650185

$12.52

35

T-Fitting

293710116

$16.39

40

Tie Wrap 94 mm | 4X4

293750001

$0.96

41

Tie Wrap 368 mm

293750008

$0.97

42

Polyurethane Hose 10000Mm Long

219704410

$52.96

43

Tubing 25 MM 1000MM Long

219704402

$14.57

44

Was 276000001 Hose 12.5 mm

219704394

$49.22

46

Was 515175319 Tubing 22 mm

219704423

$13.60

47

Tie-Rap 180 mm

414115200

$0.10
