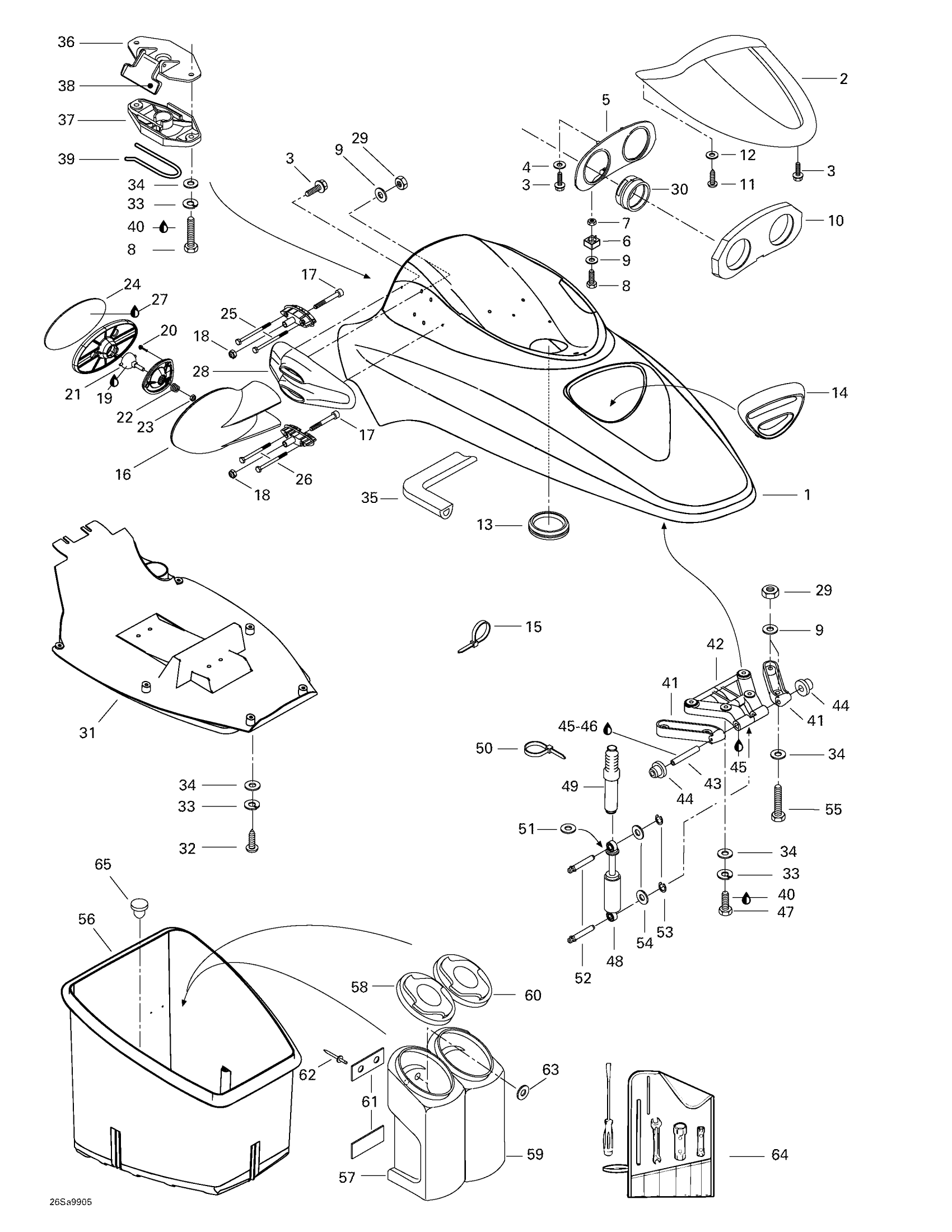

Sea-doo GTI, 5884/5885, 1999 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover Upper

269500592

Unavailable

2

Deflector

269500590

Unavailable

3

Hex. Flange Screw K40 X 16

241141660

$1.25

4

Flat Washer 4 mm, Stainless

234041600

$0.91

5

DASH BOARD - Call your local BRP dealership | Includes 13 - 16.

269500588

$40.74

6

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Hex. Screw M6 X 25

207162560

$1.22

9

Flat Washer M6, Stainless

234062600

$0.64

10

Gauge Support

269500577

Unavailable

11

Screw

211000098

$3.69

12

Flat Washer

211200007

Unavailable

13

Rubber Ring

570276900

Unavailable

14

GRILL INTAKE (BLACK) - Call your local BRP dealership

269500694

$18.43

15

Tie Wrap 142 mm

293750002

$0.88

16

RH Mirror Ass'y | Includes 16 - 27.

269500602

Unavailable

LH Mirror Ass'y

269500597

Unavailable

17

Socket Head Screw M8 X 75

205087560

Unavailable

18

Hex. Elastic Nut M8

232581600

$1.25

19

Synthetic Grease, 400 G

293550010

Unavailable

20

Hex. Flange Screw K40 X 16

241141660

$1.25

21

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

22

Mirror Spring

269500453

$7.97

23

Hex. Elastic Stop Nut M6

232561600

$0.92

24

MIRROR - Call your local BRP dealership

269500454

Unavailable

25

Hex. Screw M6 x 80

207068060

$1.99

26

Hex. Screw M6 X 70

207067060

$4.62

27

Silicone Sealant 51388, 300 ml

296000309

$35.72

28

RH Support Mirror

269500600

Unavailable

LH Support Mirror

269500595

Unavailable

29

Hex. Elastic Stop Nut M6

232561600

$0.92

30

Gauge Support

293720047

Unavailable

31

Lower Storage Cover

269500660

Unavailable

32

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

208661660

Unavailable

33

Lock Washer Helical M6

234161601

$0.92

34

Stainless Flat Washer M6

234061600

$0.25

35

Neoprene Seal 3000Mm Long

219704371

$45.47

36

Latch Ass'y

269700109

$20.12

37

Latch Ass'y

269700109

$20.12

38

Latch Ass'y

269700109

$20.12

39

Latch Spring

269700017

$7.27

40

Loctite 243, 10 ml

293800060

$20.77

41

RH HINGE - Call your local BRP dealership

269700022111

$36.12

LH HINGE - Call your local BRP dealership

269700023111

$36.12

42

COVER HINGE - Call your local BRP dealership

269700038

$63.82

43

AXLE - Call your local BRP dealership

269700024

Unavailable

44

CUSHION - Call your local BRP dealership

293350016

Unavailable

45

Sealant Loctite 648

219703000

$35.72

46

Was 293800041 Loctite Primer 7649

219704458

$41.99

47

Hex. Forming Screw M6 X 20

207162060

$1.03

48

Gas Shock Ass'y | Includes 82 - 85.

269500261

$92.92

49

BELLOW - Call your local BRP dealership

291000919

Unavailable

50

Tie Wrap 94 mm | 4X4

293750001

$0.83

51

Washer

211200034

Unavailable

52

SHORT PIN - Call your local BRP dealership

211400006

$7.94

53

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

54

Stainless, Flat Washer 8 mm

234081600

$0.46

55

Hex. Screw M6 X 35

207063560

$1.85

56

Storage Tray | Includes 77 - 78.

269500269

Unavailable

57

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

$23.82

58

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

59

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

$23.82

60

Storage Cap

269500604

Unavailable

61

GASKET - Call your local BRP dealership

293250037

$5.00

62

Pop Rivet 1/8''

293150033

Unavailable

63

Flat Washer M3, Stainless

234032600

$0.54

64

Tool Kit

295000066

Unavailable

65

Rubber Bumper

293830005

$5.33
