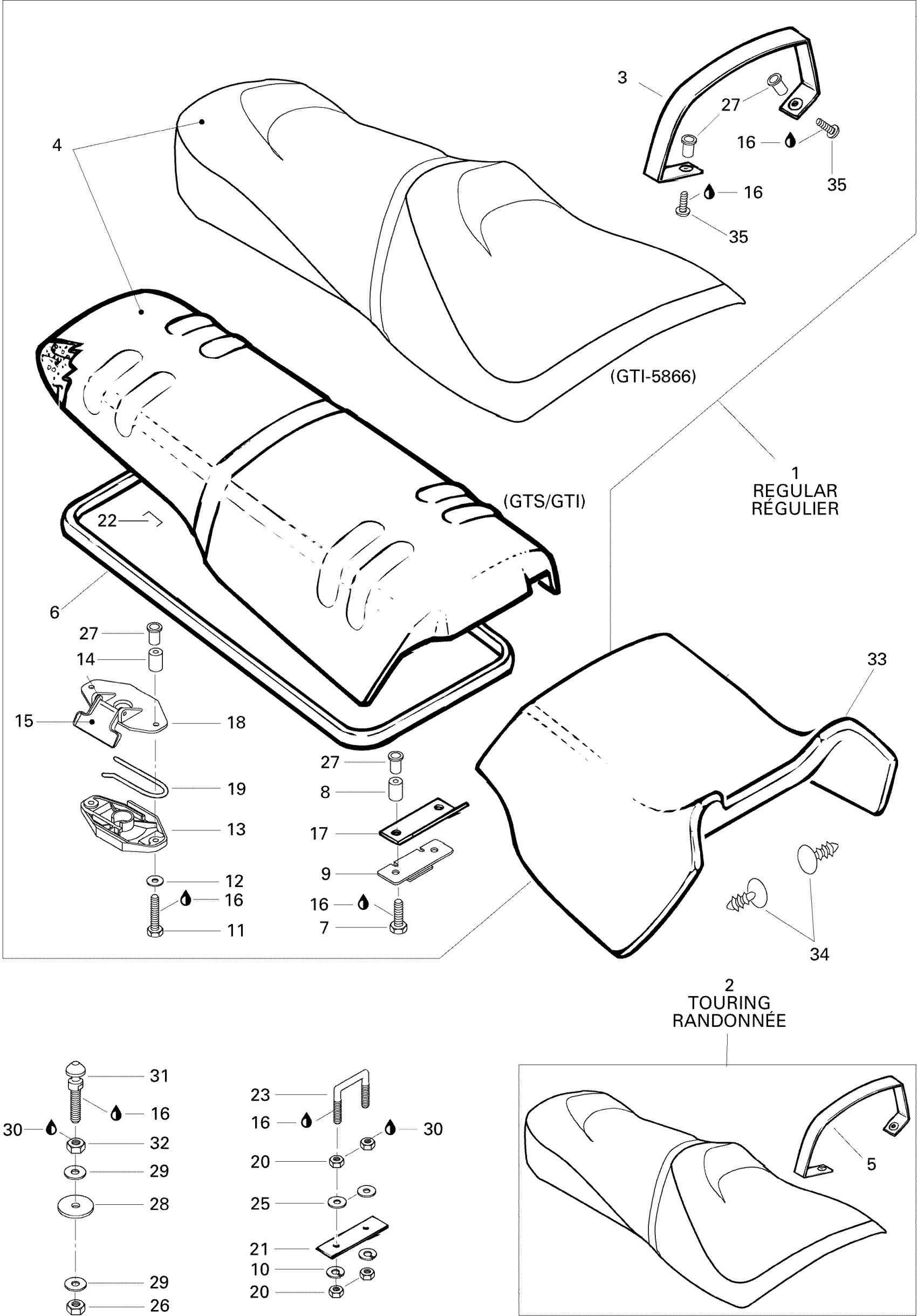

Sea-doo GTI, 5865, 1996 Seat 5865 Diagram

#

Description
Price

1

Regular Seat Ass‘y (Yellow)

269000300

Unavailable

2

Touring Seat Kit (Yellow) | (GTI, GTS 96 / 97-98 GTS)

295500323

Unavailable

3

Regular Seat Strap (Yellow)

269000309

Unavailable

4

Regular Seat Cover and Foam (Yellow)

269000307

Unavailable

5

Touring Seat Strap (Yellow)

269000315

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

Hex. Forming Screw M6 X 20

207162060

$1.29

8

SPACER - Call your local BRP dealership

291000176

Unavailable

9

Base Keeper

291000174

$19.99

10

Lock Washer Helical M6

234161601

$1.15

11

Hex. Screw M6 X 30

207163060

$1.48

12

Stainless Flat Washer M6

234061600

$0.33

13

Latch Ass'y

269700109

$24.99

14

SPACER - Call your local BRP dealership

291000177

Unavailable

15

Latch Ass'y

269700109

$24.99

16

Loctite 243, 10 ml

293800060

$21.49

17

PROTECTION PLATE - Call your local BRP dealership

269000043

Unavailable

18

Latch Ass'y

269700109

$24.99

19

Latch Spring

269700017

$9.19

20

Hex. Nut M6

232061600

$1.15

21

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

22

Staple

293730005

Unavailable

23

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

25

Flat Washer M6, Stainless

234062600

$0.77

26

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

27

Nut Welded, M6

293100003

$9.12

28

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

29

Flat Washer 10 mm, Stainless

234002600

$2.22

30

Loctite 271, 10 ml

293800005

$26.99

31

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

32

Hex. Jam Nut M10

232100600

$2.22

33

Front Seat Ass‘y (Yellow)

269000305

Unavailable

34

Black Dart

293730010

$0.99

35

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11
