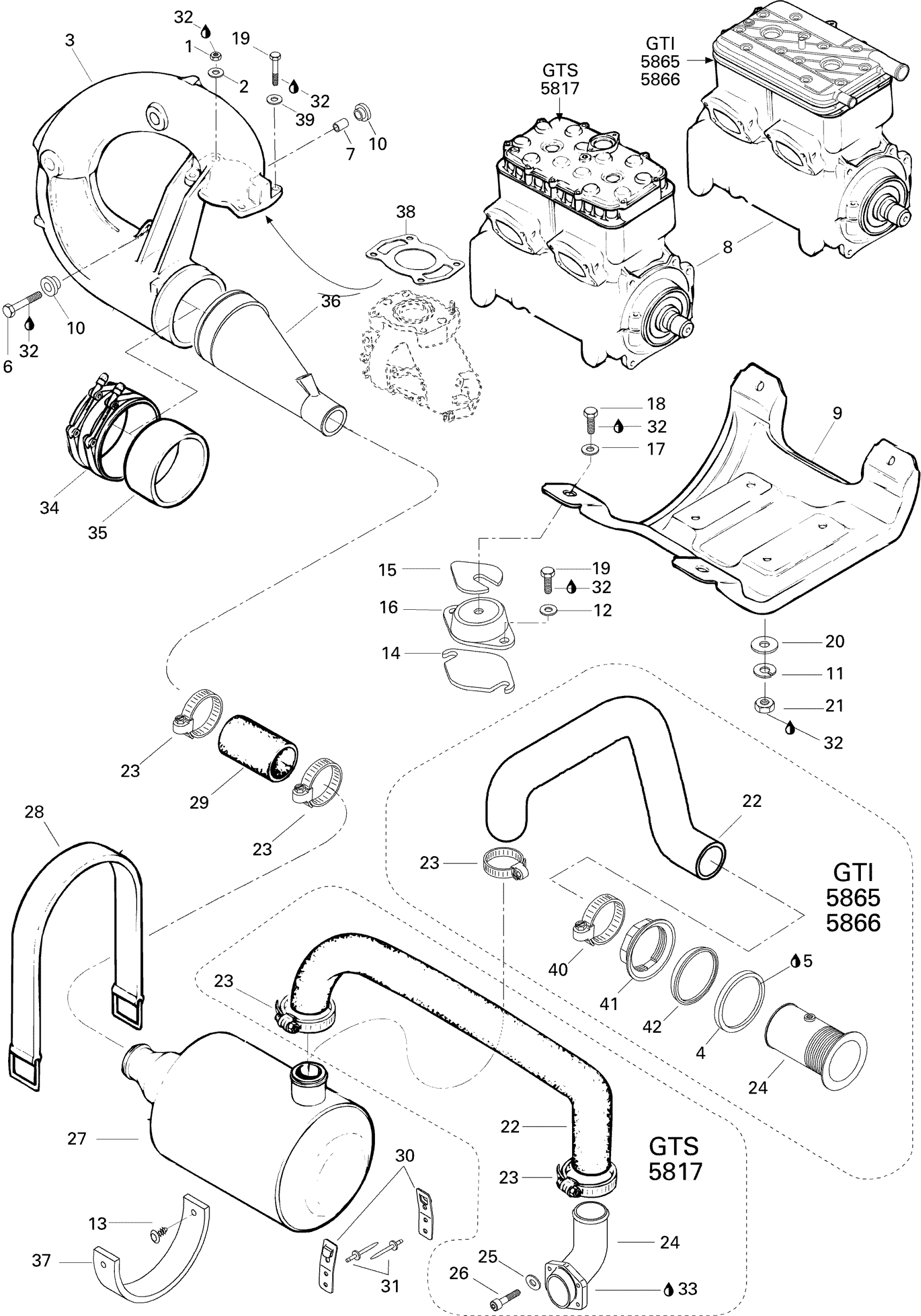

Sea-doo GTI, 5865, 1996 Exhaust System 717 Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Tuned Pipe Ass'y | Includes 1 - 4.

274000302

Unavailable

4

GASKET - Call your local BRP dealership

293250041

Unavailable

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

Hex. Screw M8 X 40

207084060

$2.22

7

Bushing

274000114

$8.85

8

Rotax Eng. 717, Double Carb. (White)

270000135

Unavailable

9

Engine Support

270000147

Unavailable

10

Rubber Bushing

293830031

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Black, Dart

293730006

$0.99

14

Shim 0.4 mm

270000006

Unavailable

14

Shim 1.3 mm

270000007

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

15

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Exhaust Hose Formed

274000273

Unavailable

23

Tridon Clamp

293650036

$7.49

24

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Muffler

274000249

Unavailable

28

Retainer Strap

293850097

$11.64

29

Exhaust Hose | GTS 5818.

274000266

Unavailable

30

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.56

32

Loctite 243, 10 ml

293800060

$21.49

33

Not Available As Spare Parts

XXX

Unavailable

34

Clamp

274000211

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Cone Ass'y | Includes 8 - 9.

274000265

Unavailable

37

Rubber Pad

293830008

Unavailable

38

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

39

Flat Washer M8.5 x 18

293050001

$3.07

40

Tridon Clamp

293650064

$8.29

41

Nut 72 mm

274000224

$16.34

42

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable
