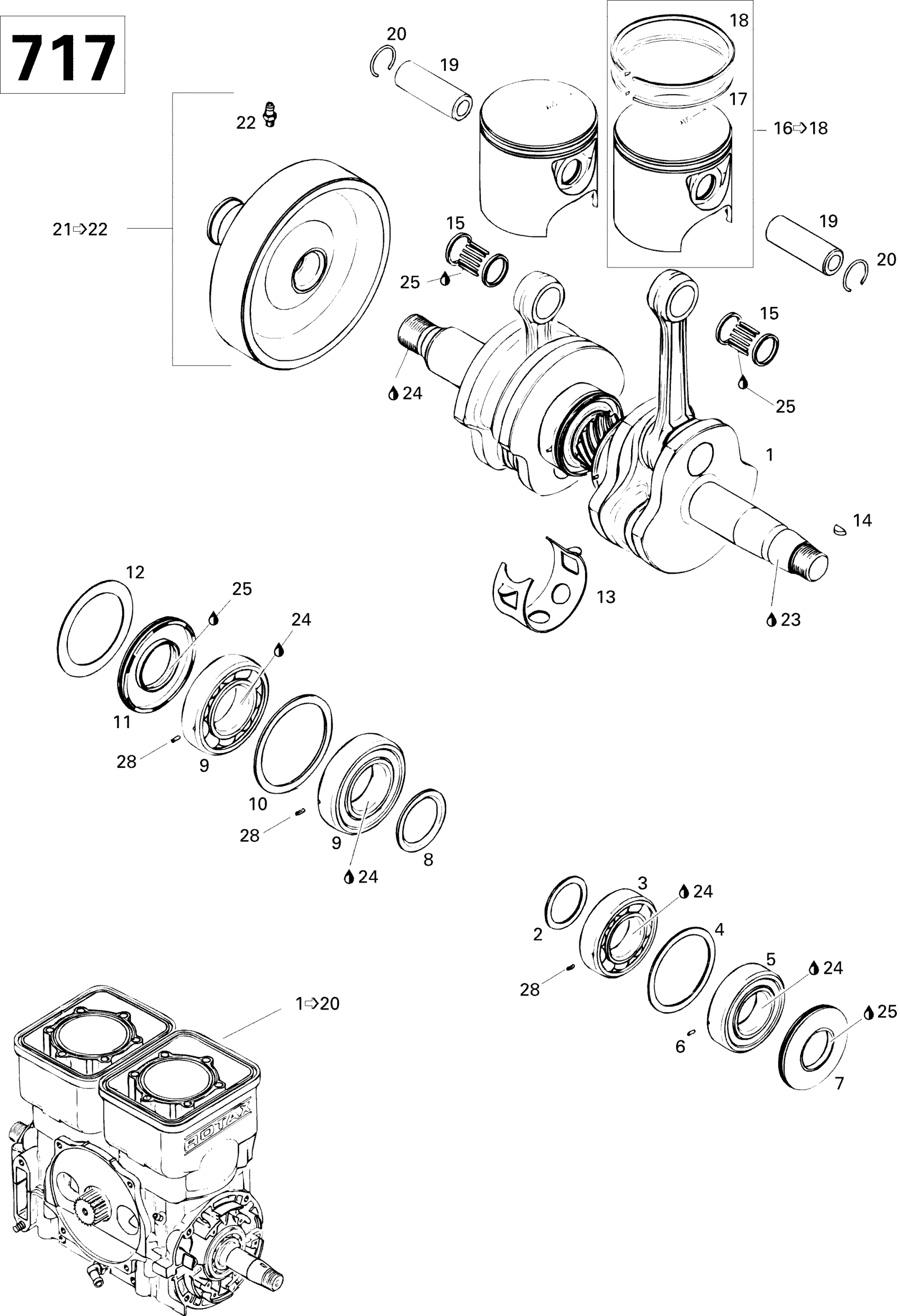

Sea-doo GTI, 5865, 1996 01- Crankshaft And Pistons 717 Diagram

#

Description
Price

1

Short Block Ass‘y | Includes 1 to 21

290881520

Unavailable

1

Crankshaft Ass‘y

290887200

Unavailable

2

RING-DISTANCE RING - Call your local BRP dealership This part replaces 290827447.

420827448

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Retaining Disk

290827050

Unavailable

5

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

6

Rolled Pin

290832470

Unavailable

7

Oil Seal This part replaces 290830749.

420830749

$18.54

8

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

9

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

10

Retaining Disk

420927710

$7.41

11

Oil Seal This part replaces 290831952.

420831952

$18.01

12

RETAINING SHIM - Call your local BRP dealership

290926060

Unavailable

13

Retaining Ring

290926070

Unavailable

14

Woodruff Key

420246055

$2.43

15

NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.

420832421

Unavailable

16

Pis ton with 2 Rings, 82.00 mm | Includes 16 - 18.

290887180

Unavailable

16

Pis ton with 2 Rings, 82.25 mm

290887181

Unavailable

16

Pis ton with 2 Rings, 82.50 mm

290887182

Unavailable

17

Rectangular Ring 82.00 mm

290815080

Unavailable

17

Rectangular Ring 82.25 mm

290815081

Unavailable

17

Rectangular Ring 82.50 mm

290815082

Unavailable

18

Semi-Trapez Ring 82.00 mm

290815070

Unavailable

18

Semi-Trapez Ring 82.25 mm

290815071

Unavailable

18

Semi-Trapez Ring 82.50 mm

290815072

Unavailable

19

Piston Pin This part replaces 290916402.

420916404

$28.49

20

Circlip

290845100

Unavailable

21

Clutch-Flywheel | Includes 23 - 24.

290958011

Unavailable

22

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

25

Dow Corning 111, 150 g

413707000

$59.99

26

Engine Gasket Set (Not Shown)

290886317

Unavailable

27

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886316

Unavailable

28

Dowel Pin

420929972

Unavailable
