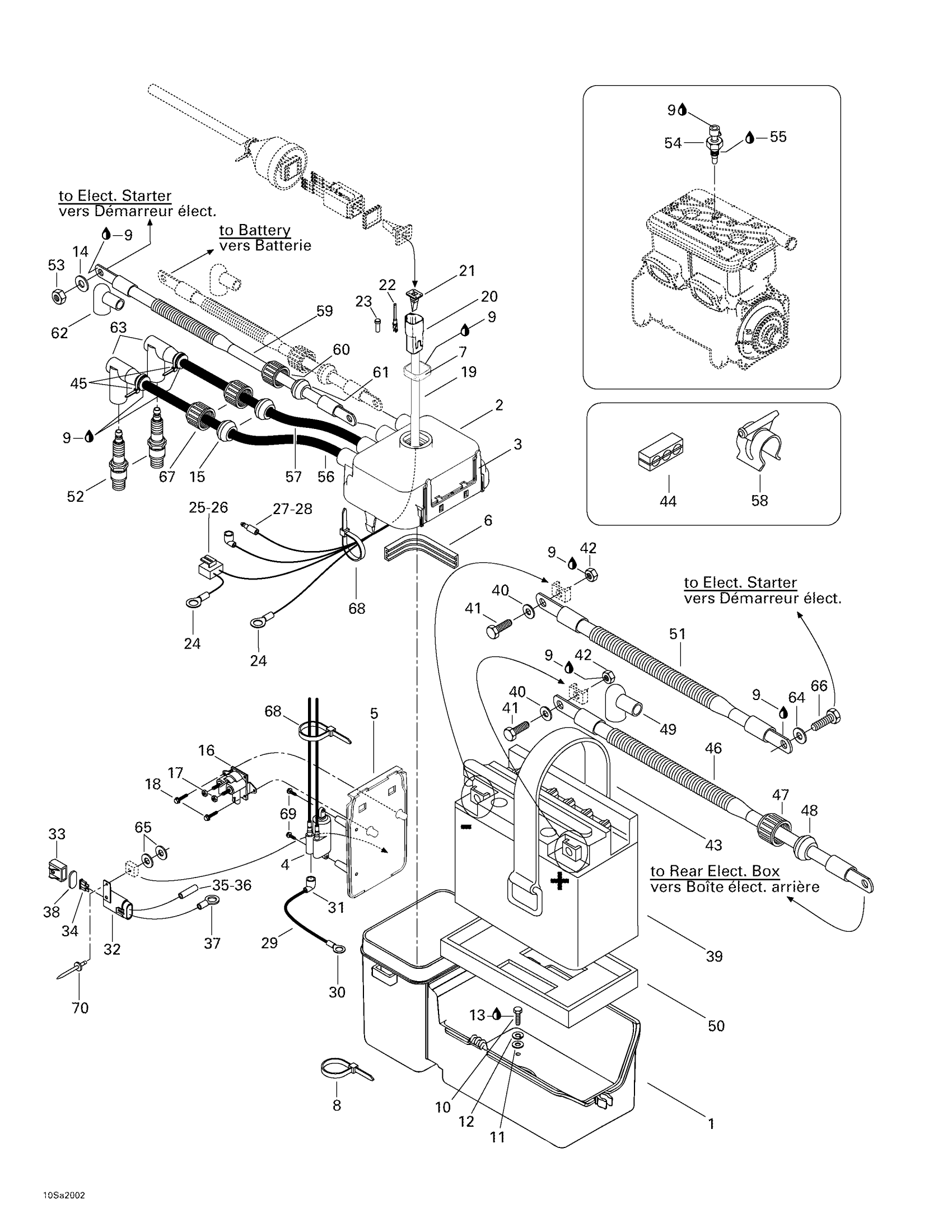

Sea-doo GTI, 5647/5657, 2000 Rear Electrical Box Diagram

#

Description
Price

1

Base

278001191

Unavailable

2

Cover

278001265

Unavailable

3

Ground Plate

278000732

Unavailable

4

IGNITION COIL - Call your local BRP dealership

278001130

Unavailable

5

Mounting Plate

278000826

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

Tie-Rap 173 mm

293750009

$1.04

9

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

10

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.77

12

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

13

Loctite 271, 10 ml

293800005

$26.99

14

Stainless Flat Washer M6

234061600

$0.33

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$42.49

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Hex. Flange Screw M6 X 10

210261040

$1.48

19

Rear Electric Box Harness | Includes 19 - 27.

278000861

Unavailable

20

Male Terminal Housing, 6 Circuits

710001539

$19.99

21

Female Lock, 6 Circuits

278000735

$3.19

22

Male Terminal

278000631

$4.39

23

Sealing Cap

293000052

$3.19

24

Ring Terminal

278000300

Unavailable

25

Male Connector, 2 Circuits

278001113

$16.86

26

Female Terminal

278001114

$3.19

27

Male Terminal

278000230

$4.39

28

Insulated Sheath

278001008

$3.28

29

Ground Harness | Includes 82 - 84.

278000664

Unavailable

30

Ring Terminal

278000300

Unavailable

31

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

32

Fuse Harness 15 Amp | Includes 28 - 34.

278000665

Unavailable

33

Fuse Holder Cap

278001326

$7.69

34

Fuse, 15 Amperes

278000343

$3.28

35

Female Terminal | DS 650 X

278001009

$3.19

36

Insulated Sheath

278001007

$3.58

37

Ring Terminal

278000300

Unavailable

38

Cushion

278000805

$3.28

39

Battery 19A | Includes 5 to 8

278001756

$153.36

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.74

42

Hex. Nut M6

232061414

$0.53

43

STRAP - Call your local BRP dealership

293850031

Unavailable

44

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

45

Tie Wrap 142 mm

293750002

$1.25

46

Engine Harness | RX DI 5591/5592.

278000511

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Battery Lower Pad

278001234

Unavailable

51

Battery Ground Cable

278001117

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

53

Hex. Elastic Stop Nut M6

232561600

$1.15

54

Temperature Sensor

278000965

$73.99

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

56

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

57

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

58

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

59

Starter Cable (Red) | Includes 59 - 62.

278000975

Unavailable

60

Electric Wire Cap

278000100

Unavailable

61

GROMMET - Call your local BRP dealership

278000098

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

64

Stainless, Flat Washer 8 mm

234081600

$0.55

65

Flat Washer, Emhart

213200016

$0.72

66

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

67

Electric Wire Cap

278000100

Unavailable

68

Tie Wrap 94 mm | 4X4

293750001

$1.03

69

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

70

Pop Rivet 3/16"

293150005

$0.52
