- GTI, 5647/5657, 2000
09- Seat And Engine Cover

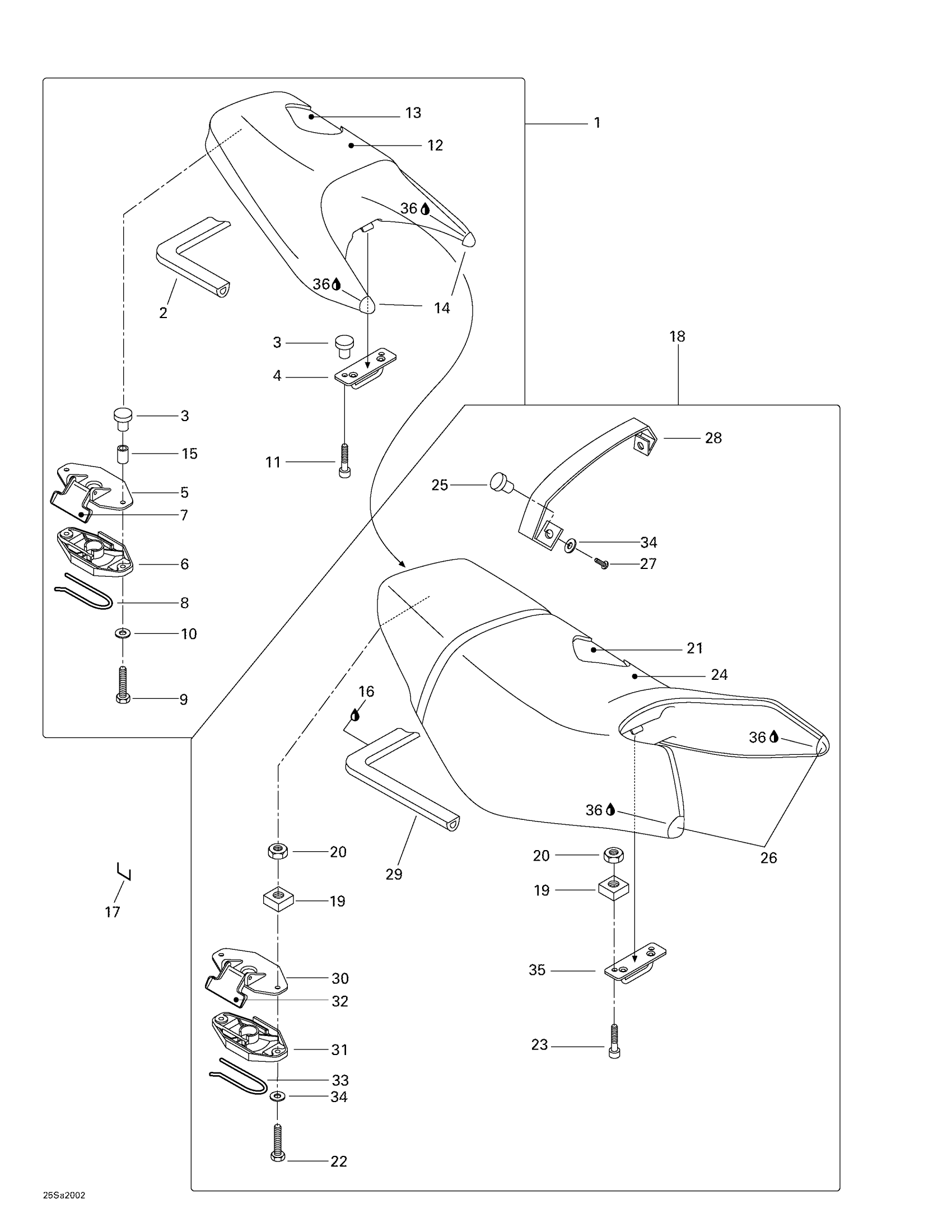

Sea-doo GTI, 5647/5657, 2000 09- Seat And Engine Cover Diagram
#
Description
Price
1
Rear Seat Ass'y | Includes 1 - 15.
269000638
Unavailable
2
Was 293200017 Neoprene Seal
219704365
$149.99
3
Nut Welded, M6
293100003
$9.12
4
Hook (Seat Base)
291001357
Unavailable
5
Latch Ass'y
269700109
$24.99
6
Latch Ass'y
269700109
$24.99
7
Latch Ass'y
269700109
$24.99
8
Latch Spring
269700017
$9.19
9
Screw Hex. M6 X 35, Scotch Grip
207363560
$1.89
10
Stainless Flat Washer M6
234061600
$0.33
11
Socket Head Screw M6 X 16, Scotch Grip
205561660
$1.68
12
REAR SEAT COVER - Call your local BRP dealership
269000639
Unavailable
13
Rear Seat Foam
269000353
Unavailable
14
RH Rear Seat Corner
269000640
Unavailable
LH Rear Seat Corner
269000641
Unavailable
15
SPACER - Call your local BRP dealership
291000532
Unavailable
16
Loctite 401, 1 Oz
293800048
Unavailable
17
Staple
293730005
Unavailable
18
Front Seat Ass'y | Includes 18 - 35.
269000642
Unavailable
19
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
20
Hex. Nut M6
232061600
$1.15
21
Front Foam
269000358
Unavailable
22
Hex. Screw M6 X 30, Scotch Grip
207363060
Unavailable
23
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
24
Front Seat Cover
269000643
Unavailable
25
Nut Welded, M6
293100003
$9.12
26
Seat Corner
269000645
Unavailable
27
Hex. Screw M6 X 16, Scotch Grip
207361660
$1.15
28
Seat Strap
269000644
Unavailable
29
Was 293200017 Neoprene Seal
219704365
$149.99
30
Latch Ass'y
269700109
$24.99
31
Latch Ass'y
269700109
$24.99
32
Latch Ass'y
269700109
$24.99
33
Latch Spring
269700017
$9.19
34
Stainless Flat Washer M6
234061600
$0.33
35
Hook (Seat Base)
291001357
Unavailable
36
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
