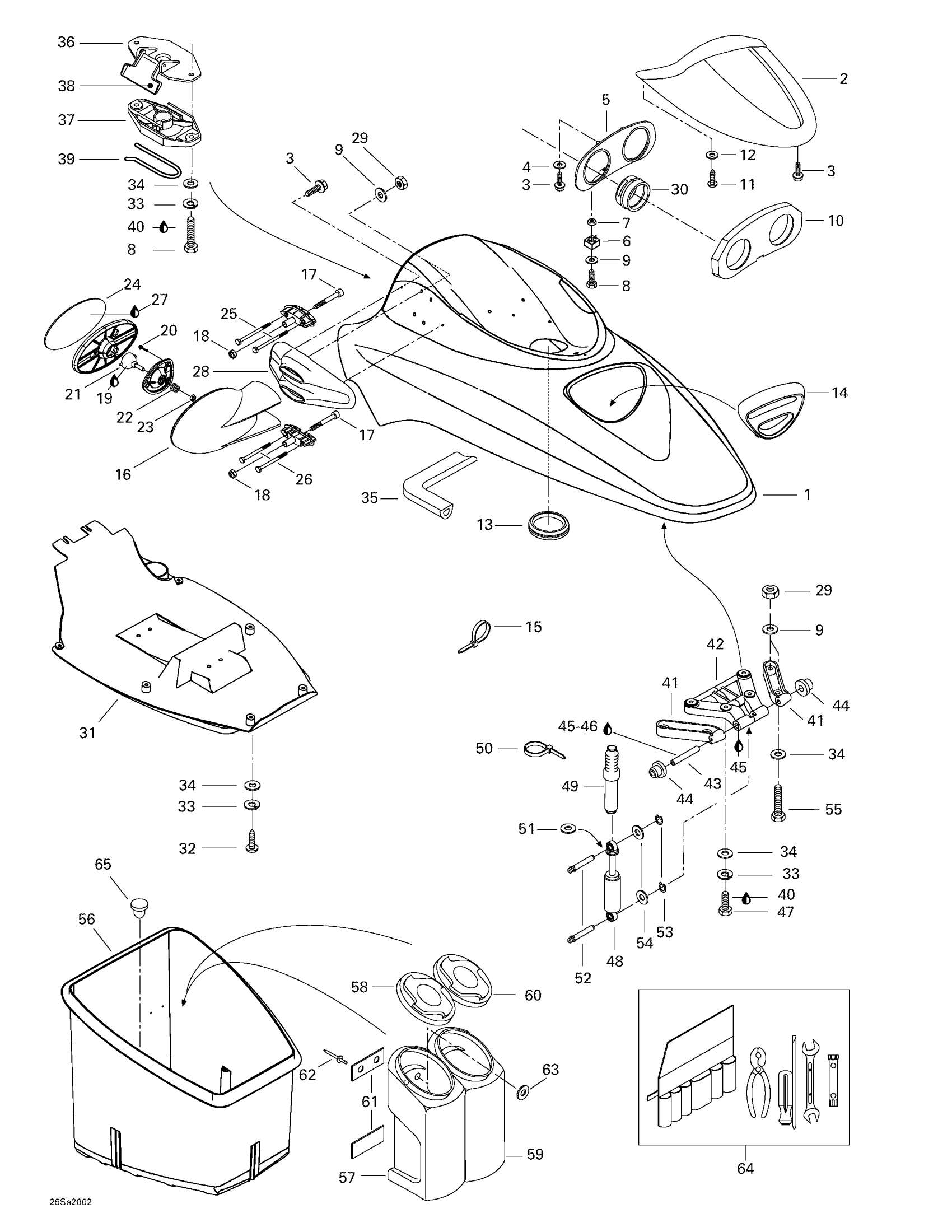

Sea-doo GTI, 5647/5657, 2000 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover Upper

269500764

Unavailable

2

Deflector

269500765

Unavailable

3

Hex. Flange Screw K40 X 16

241141660

$1.48

4

Flat Washer 4 mm, Stainless

234041600

$1.15

5

DASH BOARD - Call your local BRP dealership | Includes 13 - 16.

269500588

Unavailable

6

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Hex. Screw M6 X 25

207162560

$1.47

9

Flat Washer M6, Stainless

234062600

$0.77

10

Gauge Support

269500577

Unavailable

11

Screw

211000098

$3.80

12

Flat Washer

211200007

Unavailable

13

Rubber Ring

570276900

Unavailable

14

GRILL INTAKE (BLACK) - Call your local BRP dealership

269500694

Unavailable

15

Tie Wrap 142 mm

293750002

$1.25

16

RH Mirror Ass'y | Includes 16 - 27.

269500767

Unavailable

LH Mirror Ass'y

269500778

Unavailable

17

Socket Head Screw M8 X 75

205087560

Unavailable

18

Hex. Elastic Nut M8

232581600

$1.48

19

Synthetic Grease, 400 G

293550010

Unavailable

20

Hex. Flange Screw K40 X 16

241141660

$1.48

21

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

22

Mirror Spring

269500453

$10.49

23

Hex. Elastic Stop Nut M6

232561600

$1.15

24

MIRROR - Call your local BRP dealership

269500454

Unavailable

25

Hex. Screw M6 x 80

207068060

$2.43

26

Hex. Screw M6 X 70

207067060

$5.61

27

Silicone Sealant 51388, 300 ml

296000309

$36.99

28

RH Support Mirror

269500780

Unavailable

LH Support Mirror

269500782

Unavailable

29

Hex. Elastic Stop Nut M6

232561600

$1.15

30

Gauge Support

293720047

Unavailable

31

Lower Storage Cover

269500660

Unavailable

32

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

208661660

Unavailable

33

Lock Washer Helical M6

234161601

$1.15

34

Stainless Flat Washer M6

234061600

$0.33

35

Neoprene Seal 3000Mm Long

219704371

$51.99

36

Latch Ass'y

269700109

$24.99

37

Latch Ass'y

269700109

$24.99

38

Latch Ass'y

269700109

$24.99

39

Latch Spring

269700017

$9.19

40

Loctite 243, 10 ml

293800060

$21.49

41

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

42

COVER HINGE - Call your local BRP dealership

269700038

Unavailable

43

AXLE - Call your local BRP dealership

269700024

Unavailable

44

CUSHION - Call your local BRP dealership

293350016

Unavailable

45

Sealant Loctite 648

219703000

$45.99

46

Was 293800041 Loctite Primer 7649

219704458

$39.99

47

Hex. Forming Screw M6 X 20

207162060

$1.29

48

Gas Shock Ass'y | Includes 82 - 85.

269500261

$119.99

49

BELLOW - Call your local BRP dealership

291000919

Unavailable

50

Tie Wrap 94 mm | 4X4

293750001

$1.03

51

Washer

211200034

Unavailable

52

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

53

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

54

Stainless, Flat Washer 8 mm

234081600

$0.55

55

Hex. Screw M6 X 35

207063560

$2.22

56

Storage Tray | Includes 77 - 78.

269500269

Unavailable

57

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

58

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

59

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

60

Storage Cap

269500604

Unavailable

61

GASKET - Call your local BRP dealership

293250037

Unavailable

62

Pop Rivet 1/8''

293150033

Unavailable

63

Flat Washer M3, Stainless

234032600

$0.55

64

Owners Tool Kit

295500783

Unavailable

65

Rubber Bumper

293830005

$8.09
