09- Body, Rear View

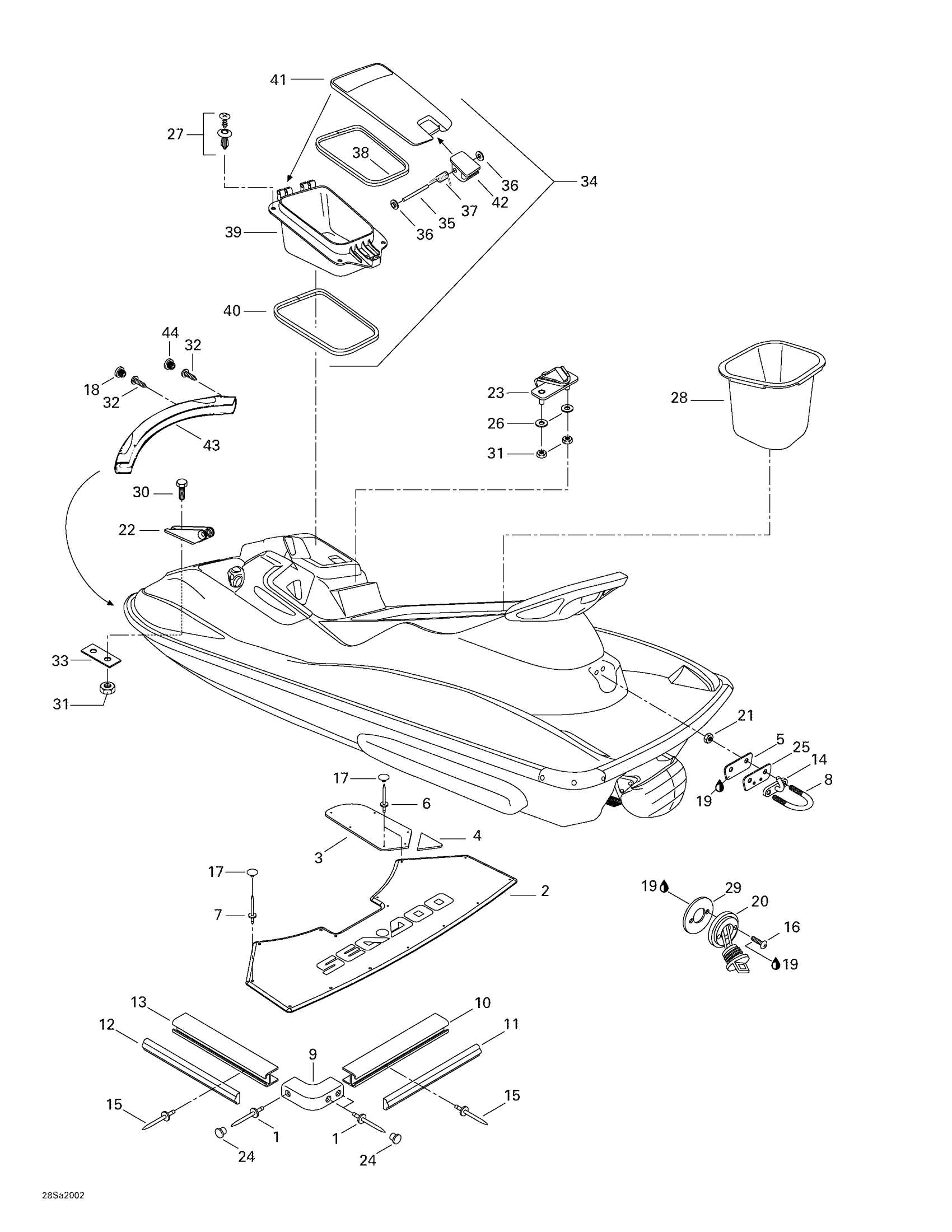

Sea-doo GTI, 5647/5657, 2000 09- Body, Rear View Diagram
#
1
Pop Rivet 3/16"
293150013
$1.37
2
Rear Carpet (Black)
291001053
Unavailable
3
RH Rear Carpet (Black)
291001051
Unavailable
LH Rear Carpet (Black)
291001052
Unavailable
4
RH Anti-Skid Carpet
291000935
Unavailable
LH Anti-Skid Carpet
291000936
Unavailable
5
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
6
Rivet 1/8"
293150016
$0.40
7
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
8
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
9
Bumper Corner
291002244
$48.99
10
Rear Bumper (Black)
291001226
Unavailable
11
REAR BUMPER TRIM - Call your local BRP dealership
291001227
Unavailable
12
SIDE BUMPER TRIM - Call your local BRP dealership
291001225
Unavailable
13
Black, Side Bumper
204050270
$179.99
14
Hook | Package LTD
291002351
$69.99
15
Pop Rivet 3/16"
293150005
$0.52
16
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
17
Black, Snap Cap
293000014
$1.09
18
Bumper Plug, Black
291001040
$7.39
19
Silicone Sealant 51388, 300 ml
296000309
$36.99
20
Drain Plug
292000187
$14.49
21
Hex. Elastic Nut M8
232581600
$1.48
22
SHOCK SUPPORT - Call your local BRP dealership
291000855
Unavailable
23
Seat Hook
291001479
Unavailable
24
Bumper Plug, Black
291000339
$2.99
25
Finition Plate
291000544
Unavailable
26
Flat Washer M6, Stainless
234062600
$0.77
27
SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership
211000088
Unavailable
28
Rear Tray (Seat)
269500270
Unavailable
29
GASKET - Call your local BRP dealership
293250030
Unavailable
30
Hex. Screw M6 X 25
207162560
$1.47
31
Hex. Elastic Stop Nut M6
232561600
$1.15
32
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
33
REINFORCEMENT PLATE - Call your local BRP dealership
291000079
Unavailable
34
Door (Box Gloves)
269500438
Unavailable
35
Pin
211400008
$9.10
36
Push Nut | Not shown
211100002
$2.19
37
Latch Spring
291000922
$7.39
38
GASKET - Call your local BRP dealership
293250060
Unavailable
39
Box Gloves
269500439
Unavailable
40
Seal 1000Mm Long
219704373
$8.26
41
Not Available As Spare Part - Friction Washer
Unavailable
42
Latch, Black
269500553
$21.99
43
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
44
Bumper Plug, Black
291001519
$5.49
