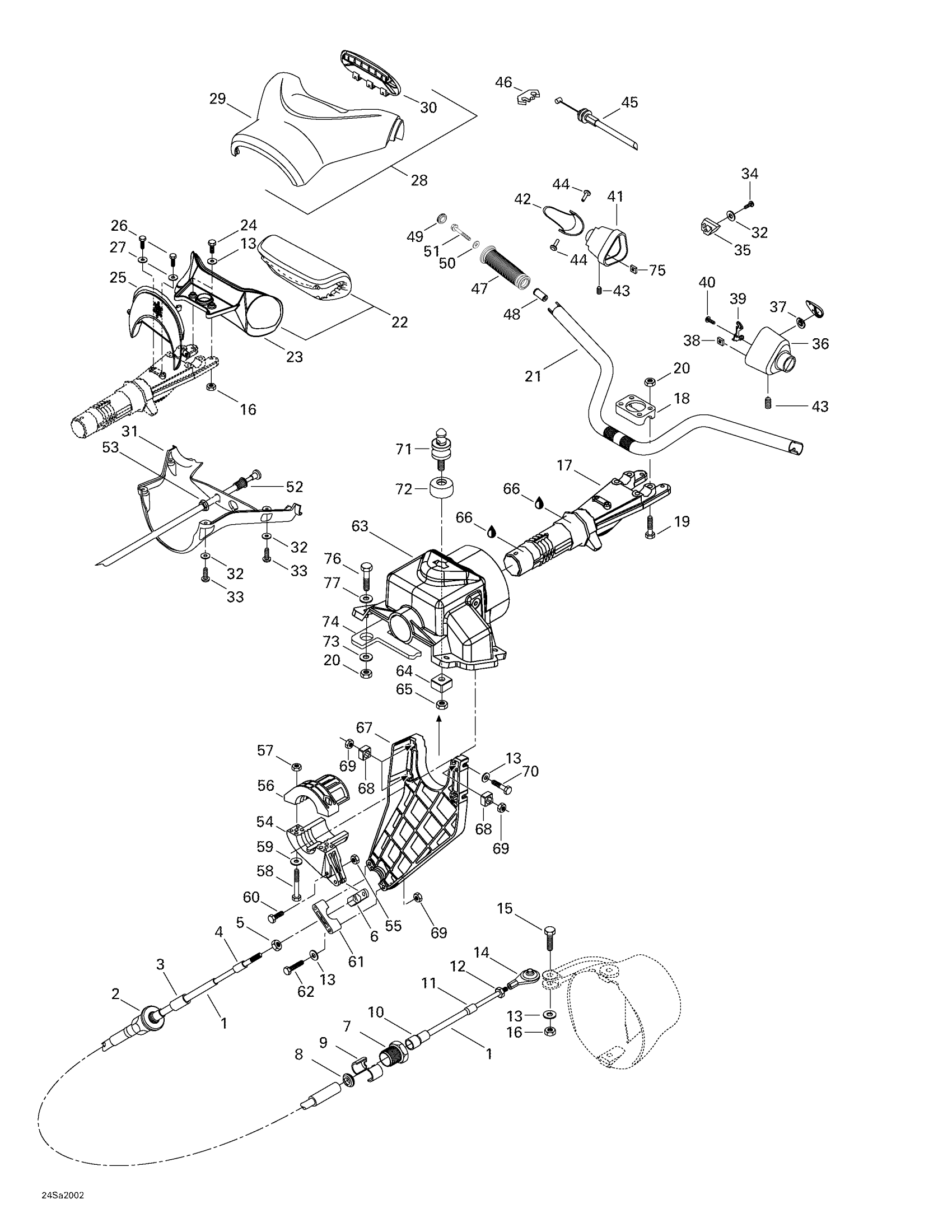

Sea-doo GTI, 5647/5657, 2000 Steering System Diagram

#

Description
Price

1

STEERING CABLE - Call your local BRP dealership | Includes 1 - 5.

277000526

Unavailable

2

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

3

Boot, Large

277000473

Unavailable

4

Boot, Small

277000466

Unavailable

5

Hex. Nut

212100005

$1.35

6

Joint

277000646

Unavailable

7

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

8

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

9

Half Ring

277000055

$9.49

10

Boot, Large

277000473

Unavailable

11

Boot, Small

277000466

Unavailable

12

Hex. Nut

212100005

$1.35

13

Stainless Flat Washer M6

234061600

$0.33

14

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

15

Hex. Screw M6 X 30

207063060

$1.89

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Steering Stem

277000562400

Unavailable

18

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

19

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

20

Hex. Elastic Nut M8

232581600

$1.48

21

Handlebar

277000824

Unavailable

22

Handle Pad (Cozumel Green) | GTI 5522/5523.

277000875

Unavailable

23

Handle Bar Pad Support

277000687

Unavailable

24

Hex. Screw M6 X 30

207063060

$1.89

25

PLATE - Call your local BRP dealership

277000549

Unavailable

26

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

27

Flat Washer M6, Stainless

234062600

$0.77

28

Upper Steering Cover | Includes 32 to 33

277000833

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Steering Plate | STD

277000823

Unavailable

31

LOWER STEERING COVER - Call your local BRP dealership

277000625

Unavailable

32

Flat Washer M5, Stainless

234051600

$0.77

33

Hex. Flange Screw K40 X 16

241141660

$1.48

34

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

35

INSERT - Call your local BRP dealership

293450153

Unavailable

36

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

37

Switch Knob

277000306

Unavailable

38

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

39

Retainer Plate

277000845

Unavailable

40

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

41

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

42

Throttle Handle

277000214

Unavailable

43

Socket Head Screw M6 X 16

250000036

$9.00

44

PIN - Call your local BRP dealership

277000381

Unavailable

45

THROTTLE CABLE - Call your local BRP dealership

277000727

Unavailable

46

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

47

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Black, Cap

277000203

$9.39

50

Flat Washer M6, Stainless

234062600

$0.77

51

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

52

CHOKE CABLE - Call your local BRP dealership | Includes 12 - 16.

270000728

Unavailable

53

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

54

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

55

Hex. Elastic Stop Nut M6

232561600

$1.15

56

Arm Thrust | Includes 43 to 44

277000519

Unavailable

57

Hex. Elastic Stop Nut M6

232561600

$1.15

58

Hex. Screw M6 X 25

207162560

$1.47

59

Flat Washer M6, Stainless

234062600

$0.77

60

Hex. Screw M6 X 30

211000081

$3.59

61

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

62

Hex. Screw M6 X 50

207065060

$2.22

63

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

64

Not Available As Spare Part - Friction Washer

Unavailable

65

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

68

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

69

Hex. Elastic Stop Nut M6

232561600

$1.15

70

Hex. Forming Screw M6 X 20

207162060

$1.29

71

Latch Stud

291001420

Unavailable

72

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

73

Flat Washer 8 mm, Stainless

234082600

$2.43

74

GASKET - Call your local BRP dealership

293250171

Unavailable

75

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

76

Hex. Screw M8 X 35

207083560

$1.47

77

Stainless, Flat Washer 8 mm

234081600

$0.55
