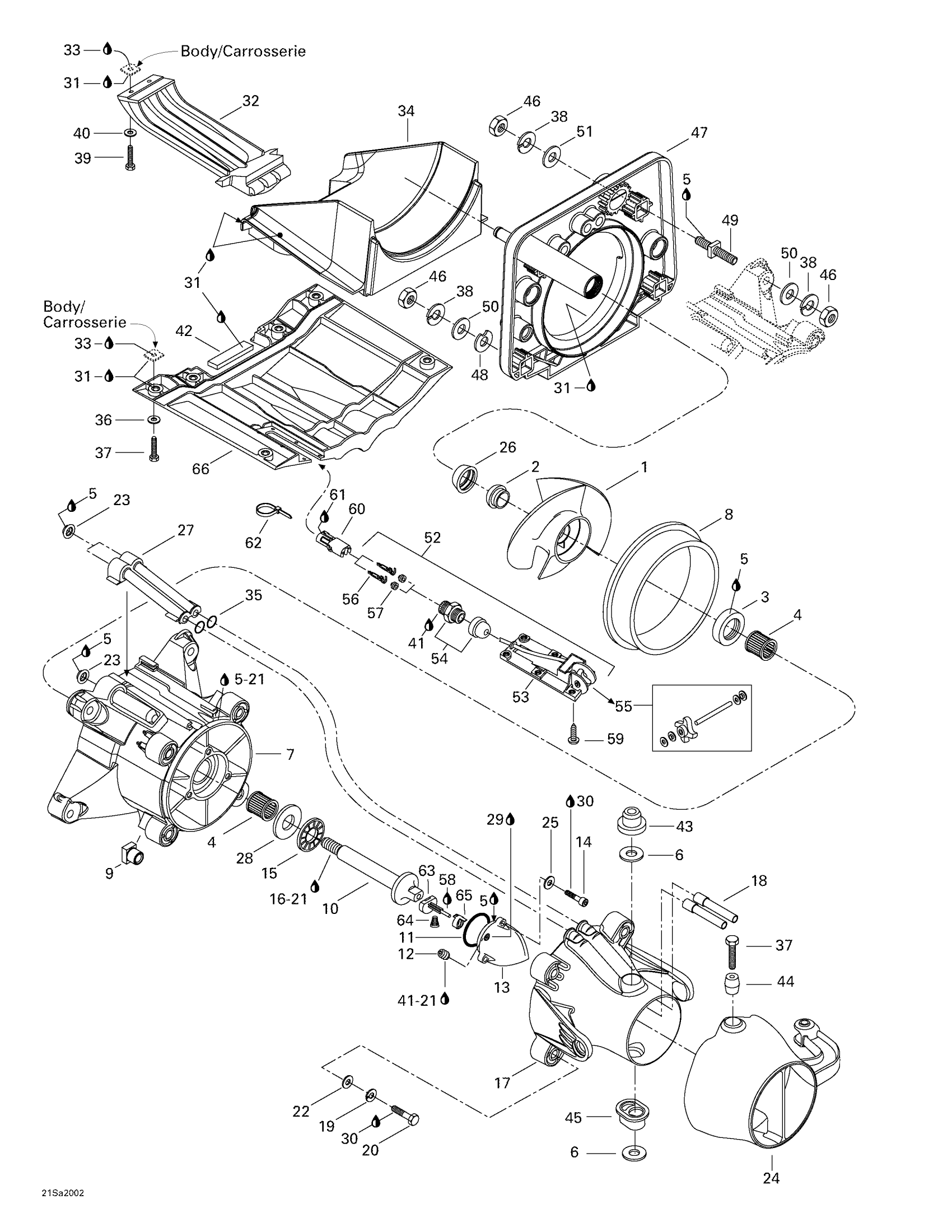

Sea-doo GTI, 5647/5657, 2000 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

204160072

Unavailable

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Flat Washer M8.5 x 18

293050001

$3.07

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 8 - 10.

204160055

Unavailable

8

Wear Ring

271000290

$58.49

9

Square Nut M8

211100033

$17.99

10

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271000895

Unavailable

14

Socket Head Screw M5 X 20

205052060

Unavailable

15

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Venturi Ass'y | Includes 17 - 18.

271000851

Unavailable

18

Siphon Tube

271000464

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Flat Washer M8.5 x 18

293050001

$3.07

23

Watertight Seal

293250084

$7.49

24

Steering Nozzle

271000889

Unavailable

25

Flat Washer M5, Stainless

234051600

$0.77

26

Impeller Ring

271000517

$9.59

27

Water Outlet

271000972

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

32

INLET GRATE - Call your local BRP dealership

271000732

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

Shoe

271000576

Unavailable

35

O-Ring

293300013

$8.18

36

Stainless, Flat Washer 8 mm

234081600

$0.55

37

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

38

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

39

Hex. Screw M6 X 25

207162560

$1.47

40

Stainless Flat Washer M6

234061600

$0.33

41

Was 293800013 Loctite 56765

219704454

$65.99

42

Neoprene Seal (1PAC=3M)

219704364

$27.49

43

Venturi Bushing

293900001

$7.62

44

Sleeve

271001816

$14.99

45

Plastic Bushing

293900010

$9.59

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

PUMP SUPPORT - Call your local BRP dealership

271000966

Unavailable

48

Shim 0.3 mm

272000053

$11.49

49

Square Stud

250300022

$20.99

50

Flat Washer 10 mm, Stainless

234001600

$1.15

51

Flat Washer 10 mm, Stainless

234002600

$2.22

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

55

Paddle Wheel Kit

295500108

Unavailable

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Synthetic Grease, 300 ml

293550025

Unavailable

59

Phillips Screw M5 x 12

250000319

$1.39

60

Female Housing, 2 Circuits

278000217

$9.59

61

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

62

Tie Wrap 142 mm

293750002

$1.25

63

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

64

SPRING - Call your local BRP dealership

271001108

Unavailable

65

SLIDER - Call your local BRP dealership

271001107

Unavailable

66

Riding Plate

271000712

Unavailable
