Description

Price

1

Flat Washer M6, Stainless

234062600

$0.77

2

Mount Dart

293730040

$1.04

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

$11.06

7

Carbon Ring

272000770

$45.99

8

Support Ring

272000064

$66.49

9

O-Ring

293300032

$6.03

10

C-CLIP - Call your local BRP dealership

272000135

Unavailable

11

DRIVE SHAFT - Call your local BRP dealership

272000127

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Screw M6 X 16

207961630

Unavailable

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

Flywheel Guard

272000132

Unavailable

16

Tie Wrap 142 mm

293750002

$1.25

17

BELLOWS - Call your local BRP dealership

272000184

$27.99

18

Synthetic Grease, 400 G

293550010

Unavailable

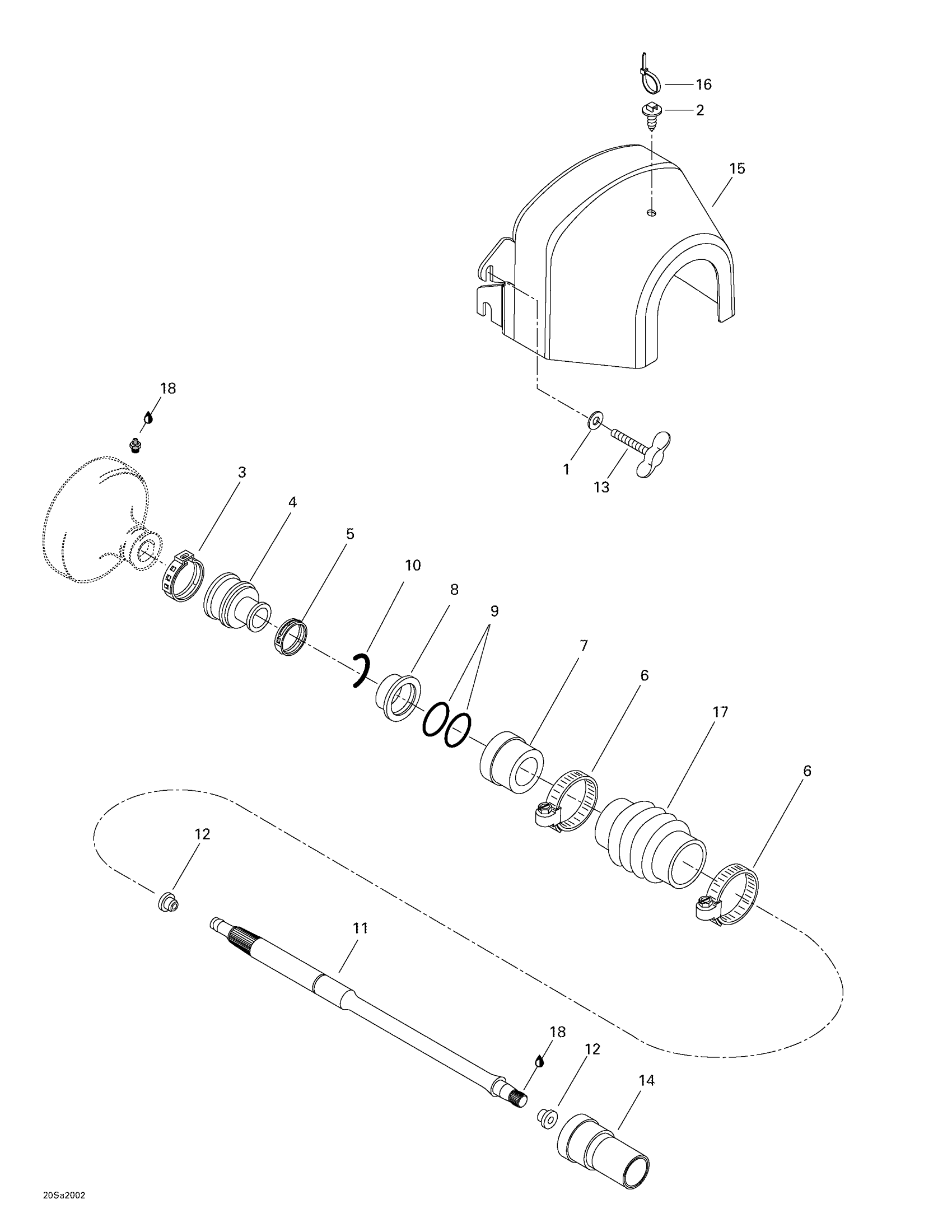

Sea-doo GTI, 5647/5657, 2000 05- Drive System Diagram

Flat Washer M6, Stainless

Mount Dart

OETIKER CLAMP - Call your local BRP dealership

RUBBER BOOT - Call your local BRP dealership

OETIKER CLAMP - Call your local BRP dealership

Norma Clamp

Carbon Ring

Support Ring

O-Ring

C-CLIP - Call your local BRP dealership

DRIVE SHAFT - Call your local BRP dealership

DRIVE SHAFT PLUG - Call your local BRP dealership

Wing Screw M6 X 16

HULL INSERT, 33 MM - Call your local BRP dealership

Flywheel Guard

Tie Wrap 142 mm

BELLOWS - Call your local BRP dealership

Synthetic Grease, 400 G
