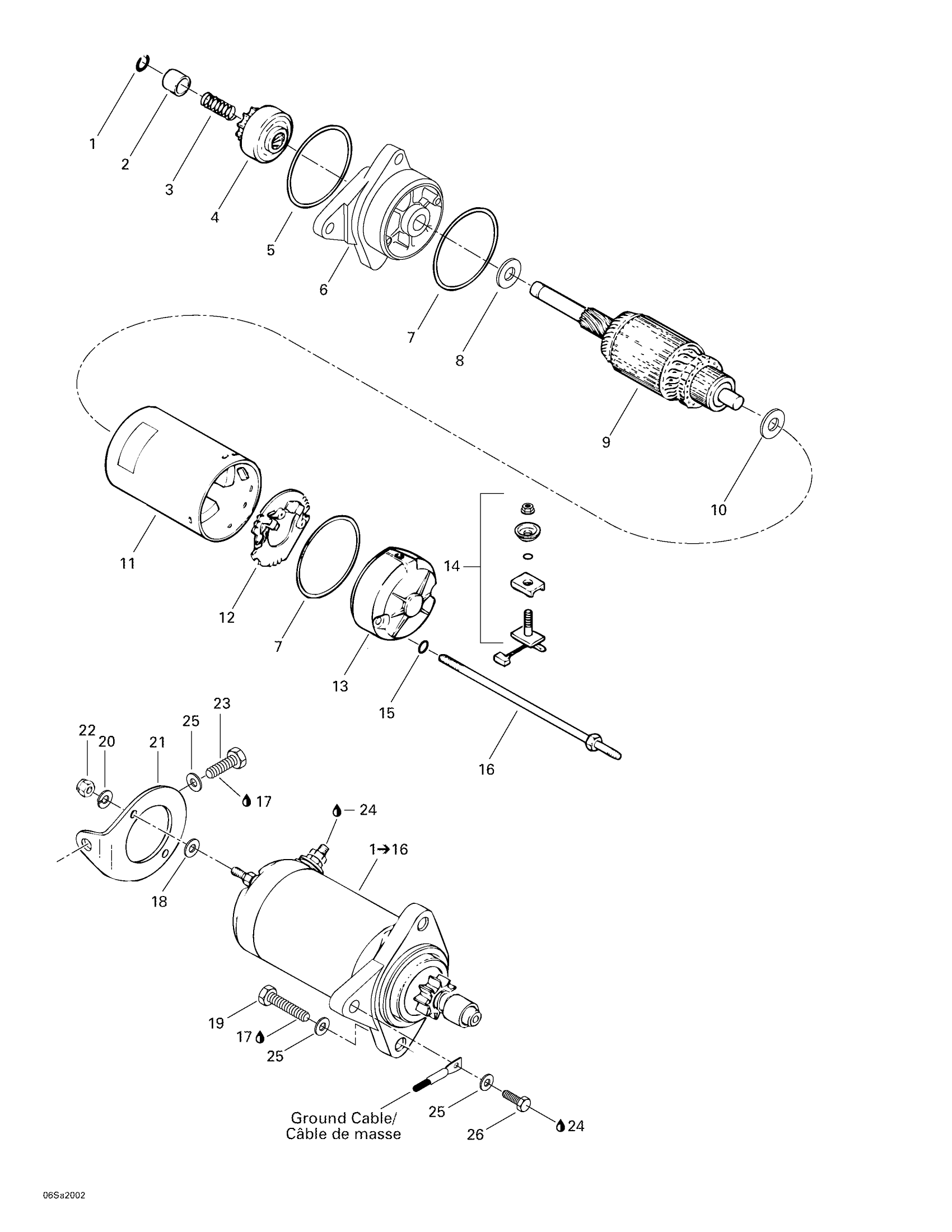

Sea-doo GTI, 5647/5657, 2000 Starter Diagram

#

Description
Price

1

Starter Ass'y, Black | Includes 1 - 16. This part replaces 278001300.

278001935

$234.49

1

SNAP RING - Call your local BRP dealership

410207700

Unavailable

2

Stopper Bushing

278000254

Unavailable

3

SPRING - Call your local BRP dealership

278000168

Unavailable

4

Starter Clutch Ass'y

295500089

Unavailable

5

O-RING - Call your local BRP dealership

278000694

Unavailable

6

Housing Ass'y

278000697

Unavailable

7

O-Ring

278000695

$14.24

8

Flat Washer

278000054

Unavailable

9

Armature

278000699

Unavailable

10

THRUST WASHER - Call your local BRP dealership

278000056

Unavailable

11

Yoke Ass'y

278000057

Unavailable

12

Brush Holder

278001296

$40.99

13

Commutator End Frame

278000251

Unavailable

14

Brush Starter Kit

278001297

$19.49

15

O-RING - Call your local BRP dealership

278000060

Unavailable

16

RETAINER STUD - Call your local BRP dealership

278000170

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

Flat Washer M5, Stainless

234051600

$0.77

19

Hex. Screw M8 X 30

207183060

$1.58

20

Helical Lock Washer M5

234151601

$1.15

21

Starter Support

270000080

Unavailable

22

Hex. Nut M5

232051600

$1.15

23

Hex. Screw M8 X 16

207181660

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

Stainless, Flat Washer 8 mm

234081600

$0.55

26

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43
