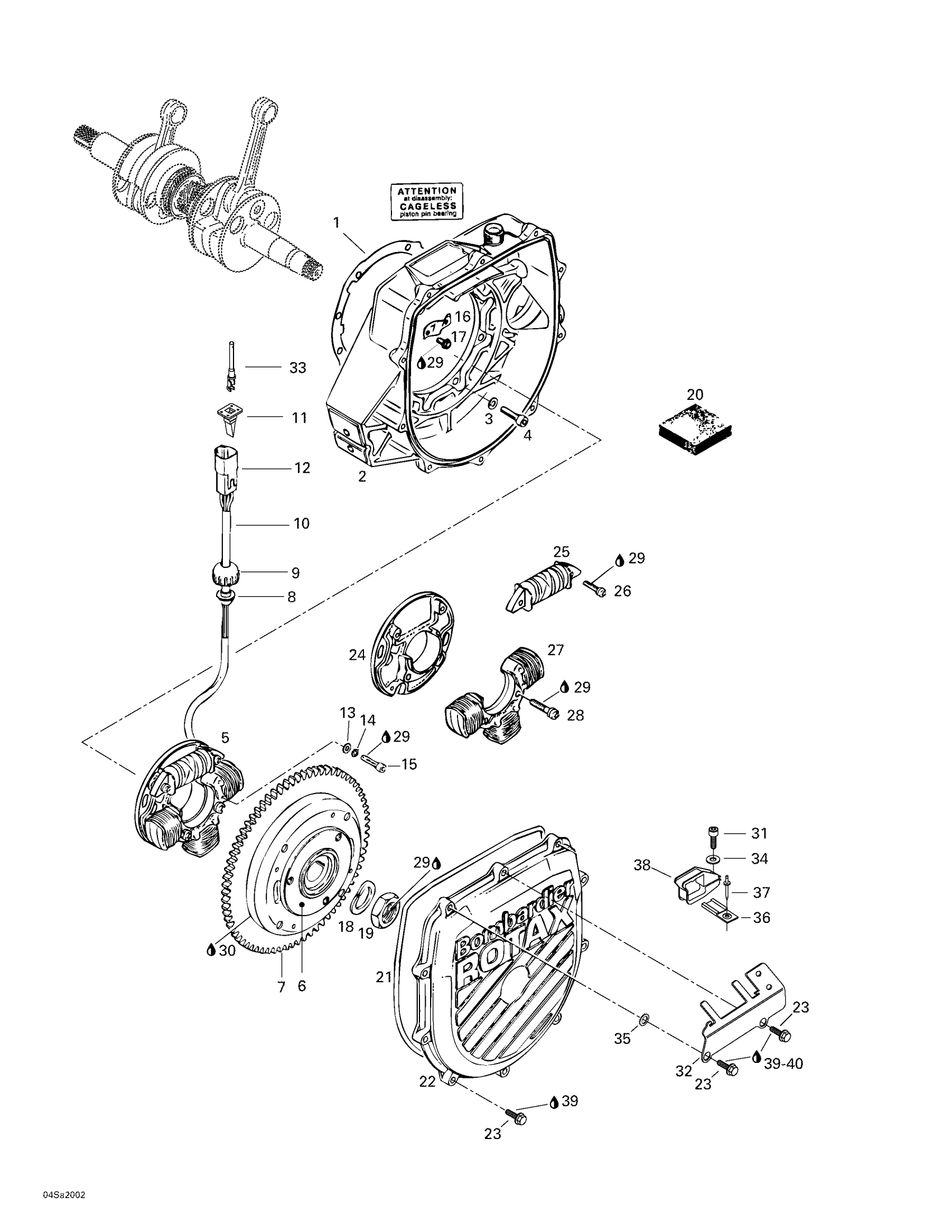

Sea-doo GTI, 5647/5657, 2000 Magneto Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

290850605

Unavailable

2

Ignition Housing (Silver)

290810852

Unavailable

3

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

4

Socket Head Screw M6 X 25

205062544

$1.15

5

ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725.

420886725

Unavailable

6

MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership | Includes 6 - 7.

290995119

Unavailable

6

Flywheel

290995118

Unavailable

7

Starter Gear 77 Teeth

290834060

Unavailable

8

Grommet

293720034

Unavailable

9

Electric Wire Cap

278000100

Unavailable

10

Tubing Isolation (75 mm)

290260931

Unavailable

11

Female Wedge, 4 Circuits

278000636

$4.39

12

Female Housing, 4 Circuits

278000635

$16.49

13

WASHER - Call your local BRP dealership

420827800

Unavailable

14

Lock Washer

420945750

Unavailable

15

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

16

Retainer Plate

290853080

Unavailable

17

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

18

Lock Washer, 22 mm

420945759

$1.90

19

Hex. Nut, M22 X 1.5

420842239

$17.53

20

Protection Mat

290860680

Unavailable

21

O-Ring

290831555

Unavailable

22

Ignition Cover

290810147

Unavailable

23

Taptite Screw

290841543

Unavailable

24

ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725.

420886725

Unavailable

25

GENERATING COIL - Call your local BRP dealership

410915200

Unavailable

26

SCREW M5 X 22 WITH WASHER - Call your local BRP dealership

420940810

Unavailable

27

Lighting Coil

410916200

Unavailable

28

SCREW M6 X 25 WITH WASHER - Call your local BRP dealership

410913900

Unavailable

29

Loctite 243, 10 ml

293800060

$21.49

30

Sealant Loctite 648

219703000

$45.99

31

Socket Screw M6 X 16

205061660

$1.48

32

Ground Plate

278001064

Unavailable

33

Male Terminal

278000631

$4.39

34

Stainless Flat Washer M6

234061600

$0.33

35

External Serrated Lock Washer 6 mm

234461608

$1.15

36

Clip

270000141

$11.49

37

Pop Rivet 3/16"

204000081

$1.49

38

Adaptor

270000158

Unavailable

39

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Engine Gasket Set (Not Shown)

290886317

Unavailable
