- Partiron
- OEM Parts
- Sea-doo
- Watercraft
- 2000
- GTI
- GTI, 5647/5657, 2000
02- Oil Injection System

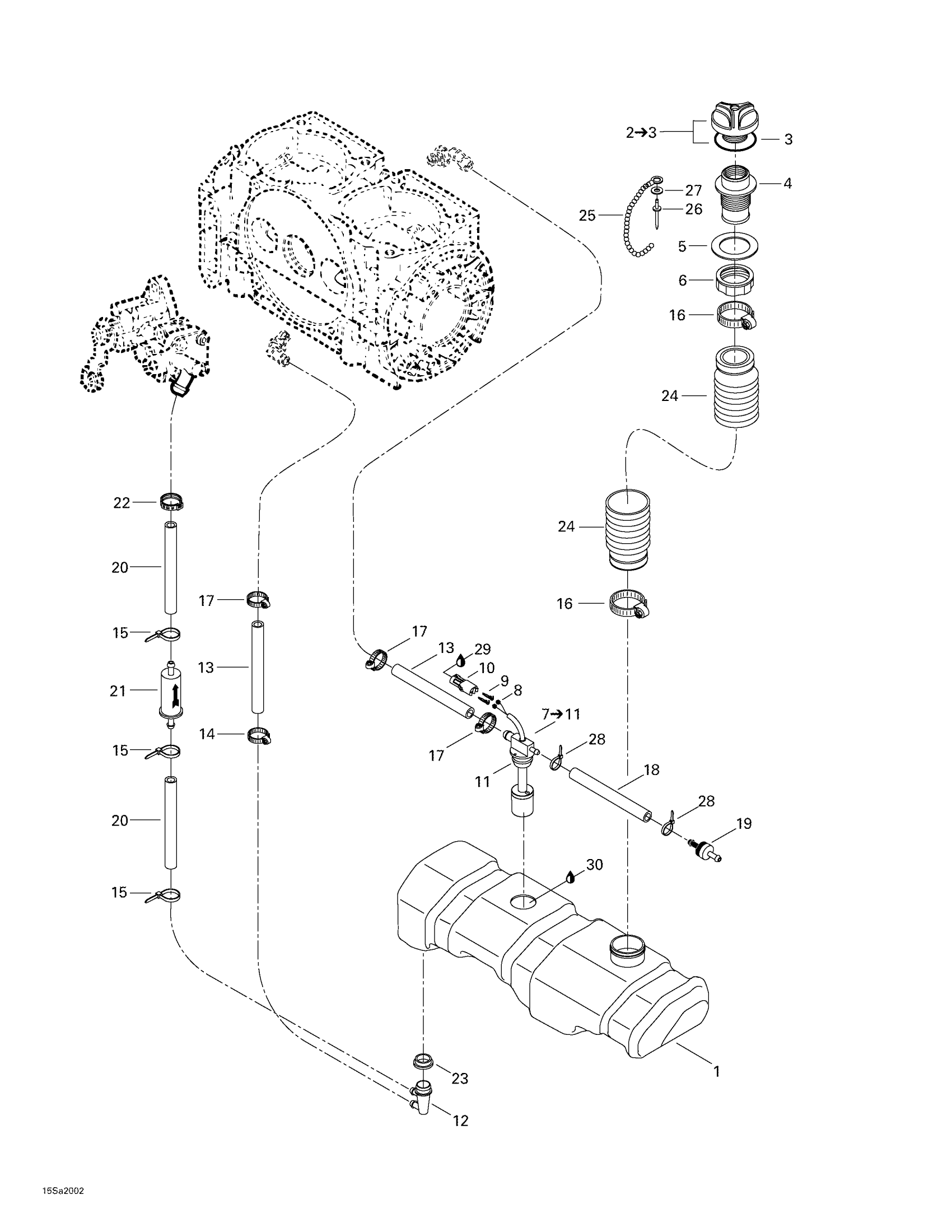

Sea-doo GTI, 5647/5657, 2000 02- Oil Injection System Diagram
#
Description
Price
1
Oil Tank
275000238
$98.99
2
Oil Cap
275000186
Unavailable
3
O-RING - Call your local BRP dealership
293250025
Unavailable
4
Filler Neck
275000212
Unavailable
5
Gasket
293250016
Unavailable
6
Nut-Neck Oil Filler
211100013
Unavailable
7
OIL LEVER SENSOR ASS'Y - Call your local BRP dealership
278001401
Unavailable
8
Wire Seal
278000218
$4.39
9
Male Terminal | XT Models
278000222
$3.19
10
Female Housing, 2 Circuits
278000217
$9.59
11
Grommet
293720008
$14.75
12
FITTING ELBOW 90 - Call your local BRP dealership
293710051
Unavailable
13
Was 275500008 Hose 12 mm
219704356
$20.49
14
Norma Clamp
293650084
$4.12
15
Tie Wrap 94 mm | 4X4
293750001
$1.03
16
Tridon Clamp
293650035
$7.29
17
Tridon Gear Clamp
293650170
$1.99
18
HOSE-6MM. 5000MM LONG - Call your local BRP dealership
219704396
Unavailable
19
Check Valve
275500398
$10.99
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
OIL FILTER - Call your local BRP dealership
275000051
Unavailable
22
Oetiker Clamp
293650042
$3.09
23
Grommet
293720008
$14.75
24
Filler Hose
275000185
Unavailable
25
Oil Cap Chain
275500015
Unavailable
26
Pop Rivet 1/8"
390407900
$1.49
27
Flat Washer M3, Stainless
234032600
$0.55
28
Tie Wrap 142 mm
293750002
$1.25
29
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
30
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
$12.99
2T Snowmobile Premium Mineral Oil This part replaces 413803000.
779120
$43.99
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership
413710500
Unavailable
OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.
293600133
Unavailable
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.
779130
Unavailable
