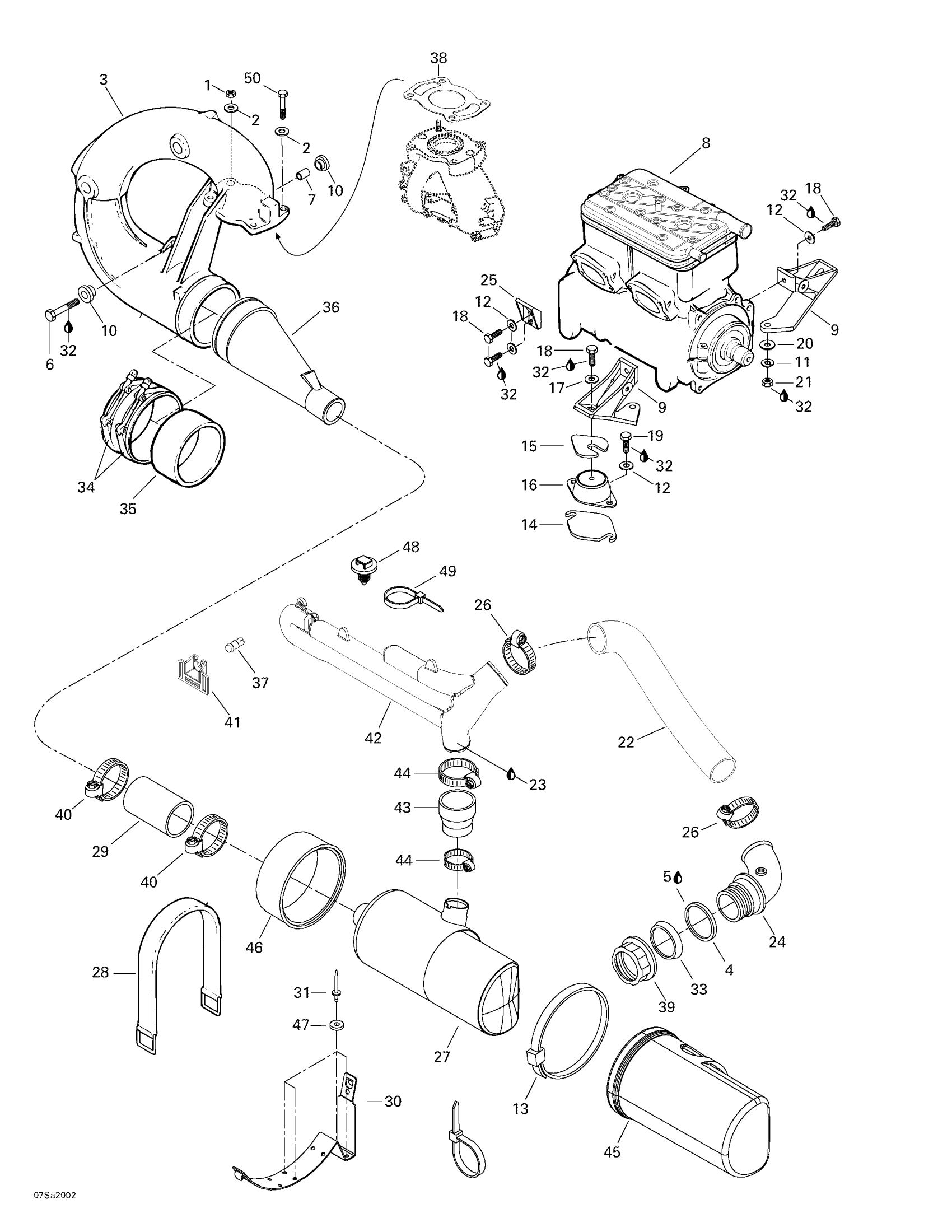

Sea-doo GTI, 5647/5657, 2000 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Tuned Pipe Ass'y | Includes 1 - 4.

274000770

Unavailable

4

GASKET - Call your local BRP dealership

293250041

Unavailable

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

Hex. Screw M8 X 40

207084060

$2.22

7

Bushing

274000114

$8.85

8

Rotax Eng. 717 Single Carb. (Silver)

270000350

Unavailable

9

RH Engine Support

270000180

Unavailable

LH Engine Support

270000181

Unavailable

10

Rubber Bushing

293830031

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

14

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Exhaust Hose

274000727

Unavailable

23

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

24

EXHAUST OUTLET - Call your local BRP dealership | Engine 1503 BVIC

274000542

Unavailable

25

Front Engine Support

270000179

Unavailable

26

Tridon Clamp

293650064

$8.29

27

Muffler

274000533

Unavailable

28

Retainer Strap

293850097

$11.64

29

Exhaust Hose

274000590

Unavailable

30

Muffler Support

274000400

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.56

32

Loctite 243, 10 ml

293800060

$21.49

33

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

34

NORMA CLAMP - Call your local BRP dealership

293650068

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Cone Ass’Y

274000488

Unavailable

37

RUBBER PAD - Call your local BRP dealership

293830062

Unavailable

38

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

39

Nut 72 mm

274000224

$16.34

40

Tridon Clamp

293650023

$13.49

41

Pad Support

291001352

Unavailable

42

UPPER RESONATOR - Call your local BRP dealership

274000683

Unavailable

43

Hose Exhaust

274000758

Unavailable

44

Tridon Clamp

293650023

$13.49

45

Rear Cover Muffler

274000806

Unavailable

46

Front Cover Muffler

274000803

Unavailable

47

Flat Washer 5 mm, Stainless

234052600

$0.77

48

Mount Dart

293730040

$1.04

49

Tie Wrap 142 mm

293750002

$1.25

50

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90
