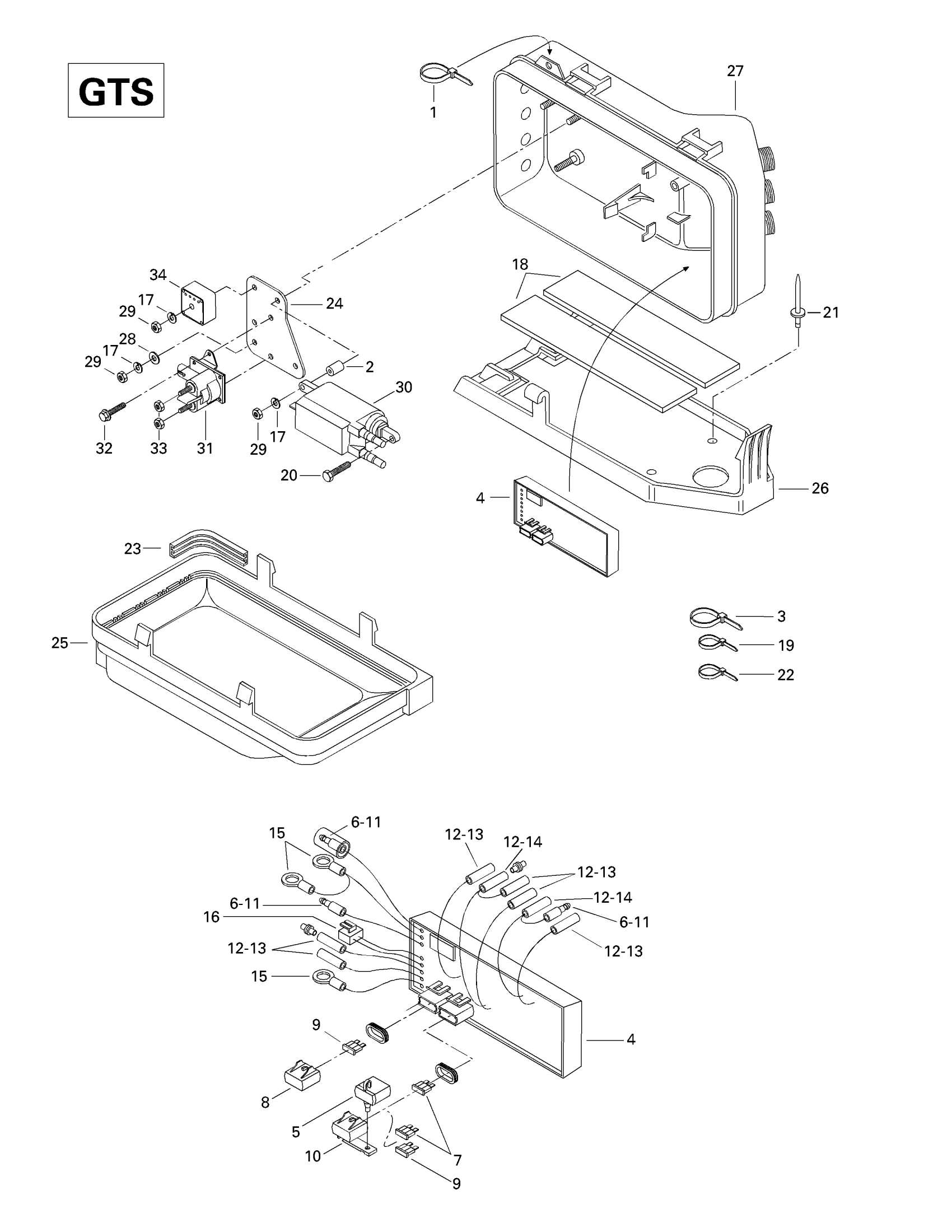

Sea-doo GTI, 5641, 1997 10- Electrical Box (GTS) Diagram

#

Description
Price

1

Tie-Rap 173 mm

293750009

$1.04

2

SPACER - Call your local BRP dealership

278000235

Unavailable

3

Tie Wrap 142 mm

293750002

$1.25

4

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 4 - 16.

278001025

Unavailable

5

Fuse Holder

278000379

Unavailable

6

Insulation Sheath

278000231

$5.08

7

Fuse, 5 Amperes | CE

278000344

$3.28

8

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

9

Fuse, 15 Amperes

278000343

$3.28

10

Fuse Holder Cap

278001326

$7.69

11

Male Terminal

278000230

$4.39

12

Female Terminal | DS 650 X

278001009

$3.19

13

Insulated Sheath

278001007

$3.58

14

Insulated Sheath

278000770

$7.90

15

Open Barrel

278000992

$2.21

16

Female Terminal

278001114

$3.19

17

Lock Washer Helical M6

234161601

$1.15

18

Rubber Strip

293830012

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

Self Tapping Screw M6.3 x 25

215462550

Unavailable

21

Avdel Rivet 3/16"

293150037

$0.56

22

Tie Wrap 368 mm

293750008

$1.04

23

Gasket

278000181

Unavailable

24

Mounting Plate

278000615

Unavailable

25

Electric Box Cover

278001082

Unavailable

26

Electric Box Support

278001119

Unavailable

27

Electric Box Base

278001085

Unavailable

28

Stainless Flat Washer M6

234061600

$0.33

29

Hex. Nut M6

232061600

$1.15

30

IGNITION COIL - Call your local BRP dealership

278000586

Unavailable

31

Starter Relay

278003012

$42.49

32

Hex. Flange Screw M6 X 10

210261040

$1.48

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable
