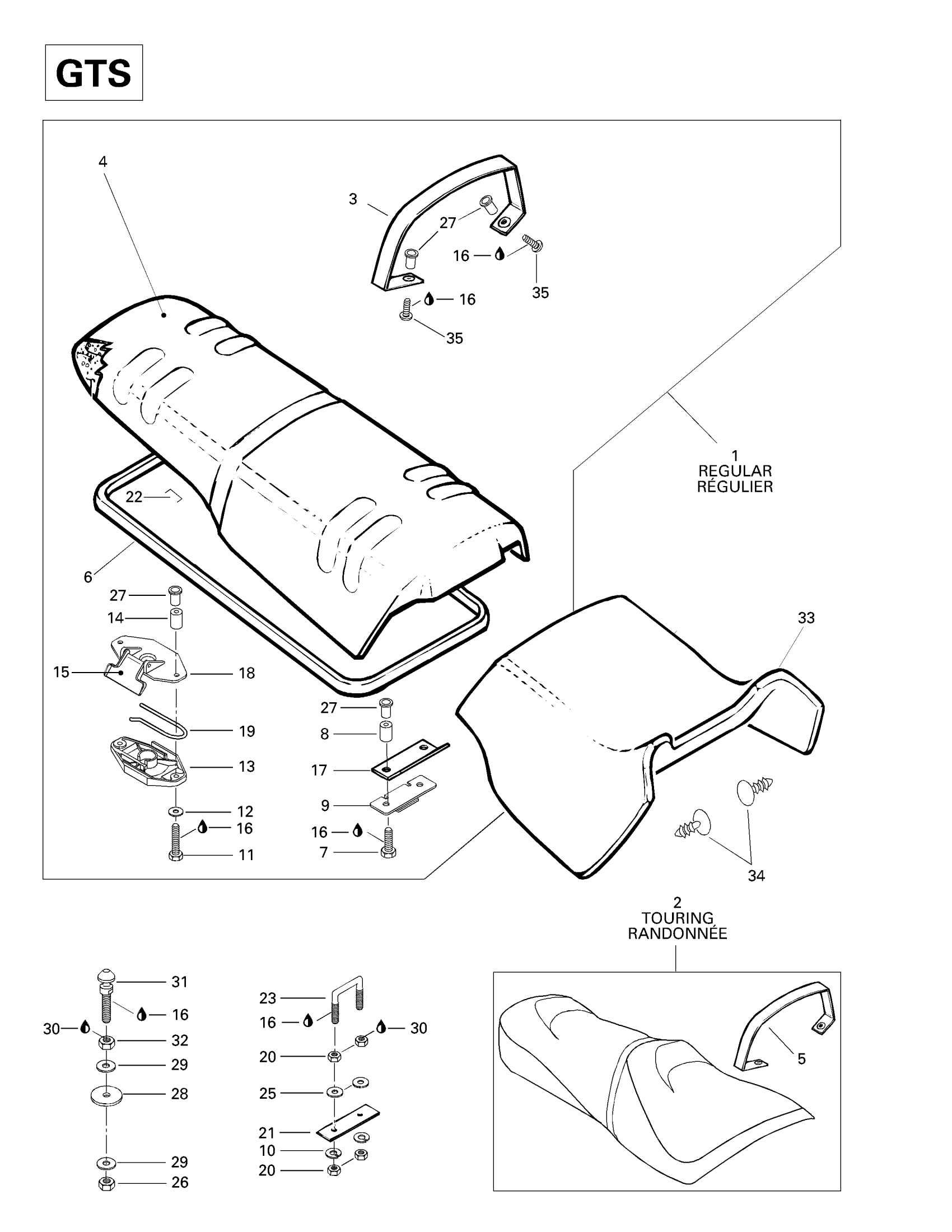

Sea-doo GTI, 5641, 1997 Seat And Engine Cover (GTS) Diagram

#

Description
Price

1

REGULAR SEAT ASS'Y(VIOLET) - Call your local BRP dealership | GTS 5818.

269000421

Unavailable

2

Touring Seat Kit (Violet) | (GTS, GTX 94-95 / 97 GTS)

295500148

Unavailable

3

Regular Seat Strap (Violet) | GTS 5818.

269000423

Unavailable

4

Regular Seat Cover and Foam (Violet) | GTS 5818.

269000422

Unavailable

5

TOURING SEAT STRAP (VIOLET) - Call your local BRP dealership | GTS 5818.

269000133

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

Hex. Forming Screw M6 X 20

207162060

$1.29

8

SPACER - Call your local BRP dealership

291000176

Unavailable

9

Base Keeper

291000174

$19.99

10

Lock Washer Helical M6

234161601

$1.15

11

Hex. Screw M6 X 30

207163060

$1.48

12

Stainless Flat Washer M6

234061600

$0.33

13

Latch Ass'y

269700109

$24.99

14

SPACER - Call your local BRP dealership

291000177

Unavailable

15

Latch Ass'y

269700109

$24.99

16

Loctite 243, 10 ml

293800060

$21.49

17

PROTECTION PLATE - Call your local BRP dealership

269000043

Unavailable

18

Latch Ass'y

269700109

$24.99

19

Latch Spring

269700017

$9.19

20

Hex. Nut M6

232061600

$1.15

21

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

22

Staple

293730005

Unavailable

23

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

25

Flat Washer M6, Stainless

234062600

$0.77

26

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

27

Nut Welded, M6

293100003

$9.12

28

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

29

Flat Washer 10 mm, Stainless

234002600

$2.22

30

Loctite 271, 10 ml

293800005

$26.99

31

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

32

Hex. Jam Nut M10

232100600

$2.22

33

Front Seat Ass'y(Violet) | GTS 5818.

269000420

Unavailable

34

Black Dart

293730010

$0.99

35

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11
