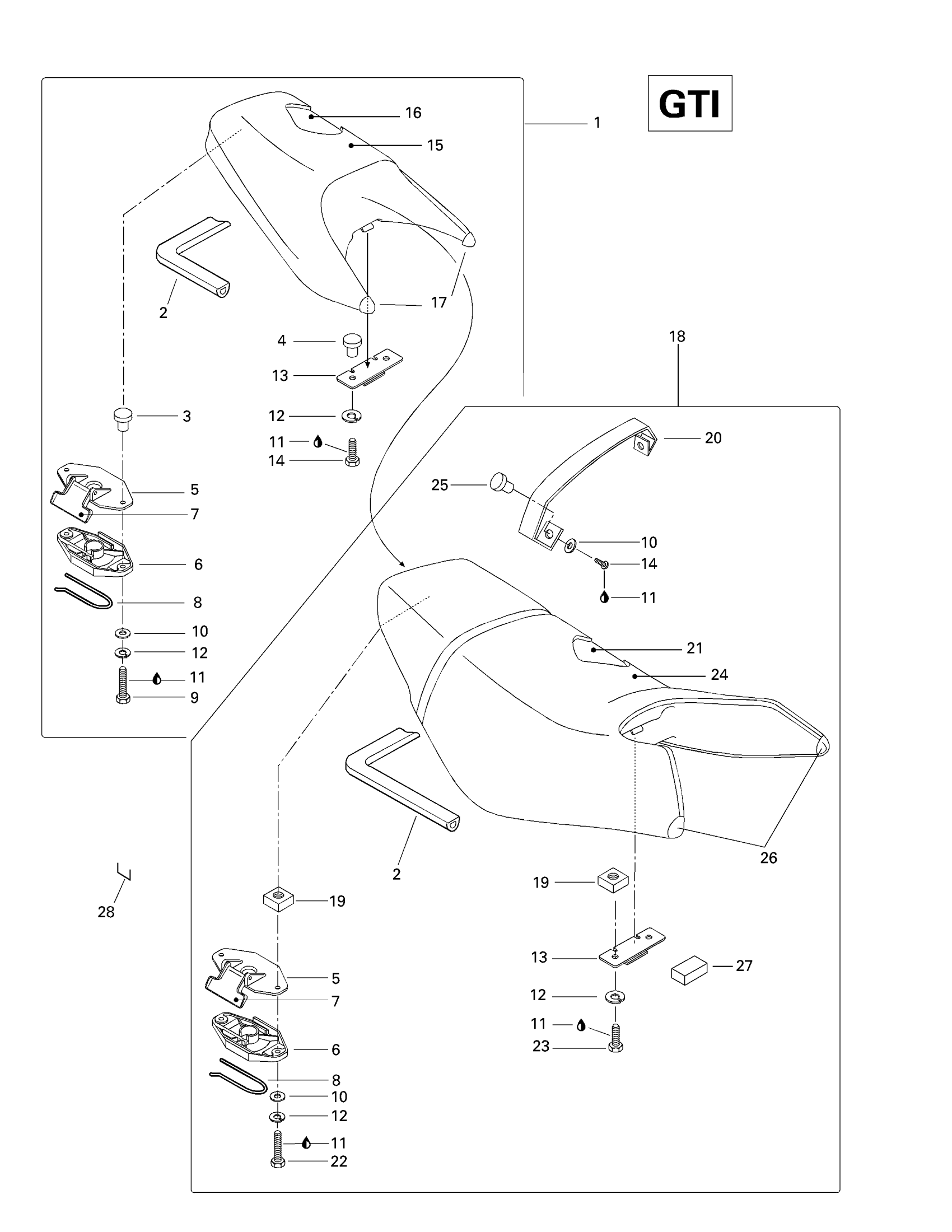

Sea-doo GTI, 5641, 1997 Seat And Engine Cover (GTI) Diagram

#

Description
Price

1

Rear Seat Ass'y(Yellow) | Includes 1 - 17. GTI 5641.

269000436

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

T-Shape Nut M6 | GTI 5641.

293100038

Unavailable

4

Threaded Insert

211100035

Unavailable

5

Latch Ass'y

269700109

$24.99

6

Latch Ass'y

269700109

$24.99

7

Latch Ass'y

269700109

$24.99

8

Latch Spring

269700017

$9.19

9

Hex. Screw M6 X 35

207163560

$1.49

10

Stainless Flat Washer M6

234061600

$0.33

11

Loctite 243, 10 ml

293800060

$21.49

12

Lock Washer Helical M6

234161601

$1.15

13

Base Keeper

291000174

$19.99

14

Hex. Screw M6 X 16

207161660

$1.59

15

Rear Seat Cover (Yellow) | GTI 5641.

269000437

Unavailable

16

Rear Seat Foam

269000353

Unavailable

17

Rear Seat Corner RH | GTI 5641.

269000438

Unavailable

Rear Seat Corner LH | GTI 5641.

269000439

Unavailable

18

Front Seat Ass'y(Yellow) | Includes 18 - 27. GTI 5641. (Incl. 2,5,6,7,8,10,11,12,13,14)

269000440

Unavailable

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

20

Strap (Yellow) | GTI 5641.

269000442

Unavailable

21

Front Foam

269000358

Unavailable

22

Hex. Screw M6 X 30

207163060

$1.48

23

Hex. Forming Screw M6 X 20

207162060

$1.29

24

FRONT SEAT COVER (YELLOW) - Call your local BRP dealership | GTI 5641.

269000441

Unavailable

25

Nut Welded, M6

293100003

$9.12

26

Seat Corner

269000459

Unavailable

27

Rubber Stopper

269000446

Unavailable

28

Staple

293730005

Unavailable
