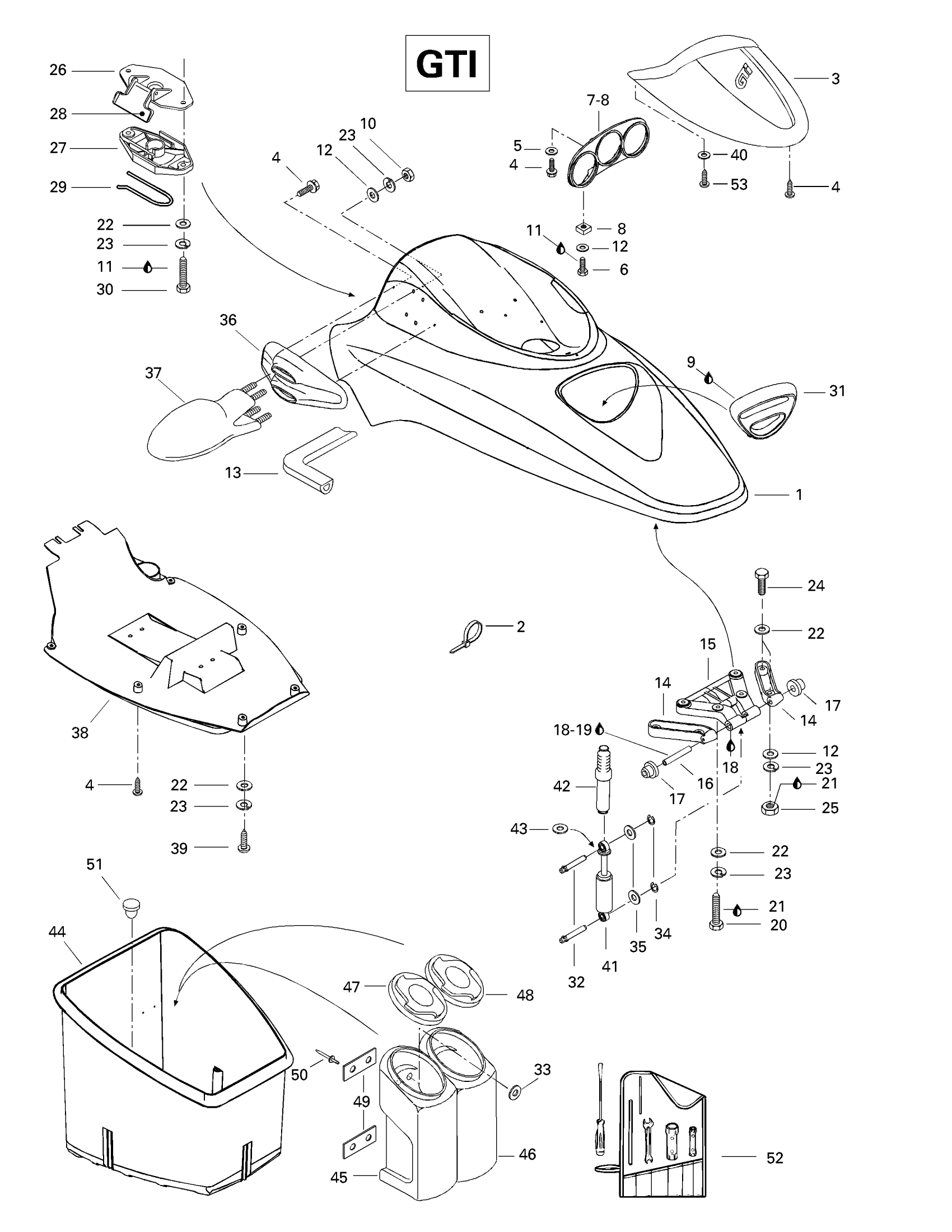

Sea-doo GTI, 5641, 1997 Front Storage Compartment (GTI) Diagram

#

Description
Price

1

Storage Cover Upper | GTI 5641.

269500347

Unavailable

2

Tie Wrap 142 mm

293750002

$1.25

3

Deflector (Yellow) | GTI 5641.

269500348

Unavailable

4

Hex. Flange Screw K40 X 16

241141660

$1.48

5

Flat Washer 4 mm, Stainless

234041600

$1.15

6

Hex. Forming Screw M6 X 20

207162060

$1.29

7

Dash Board | Includes 7 - 8.

269500355

Unavailable

8

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

9

SEALANT, SIKAFLEX BLACK # 221 - Call your local BRP dealership

293530011

Unavailable

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Loctite 243, 10 ml

293800060

$21.49

12

Flat Washer M6, Stainless

234062600

$0.77

13

Neoprene Seal 3000Mm Long

219704371

$51.99

14

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

15

COVER HINGE - Call your local BRP dealership

269700038

Unavailable

16

AXLE - Call your local BRP dealership

269700024

Unavailable

17

CUSHION - Call your local BRP dealership

293350016

Unavailable

18

Sealant Loctite 648

219703000

$45.99

19

Was 293800041 Loctite Primer 7649

219704458

$39.99

20

Hex. Forming Screw M6 X 20

207162060

$1.29

21

Loctite 243, 10 ml

293800060

$21.49

22

Stainless Flat Washer M6

234061600

$0.33

23

Lock Washer Helical M6

234161601

$1.15

24

Hex. Screw M6 X 35

207063560

$2.22

25

Hex. Nut M6

232061600

$1.15

26

Latch Ass'y

269700109

$24.99

27

Latch Ass'y

269700109

$24.99

28

Latch Ass'y

269700109

$24.99

29

Latch Spring

269700017

$9.19

30

Hex. Screw M6 X 25

207162560

$1.47

31

Intake Grille (Black) | GTI 5641.

269500351

Unavailable

32

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

33

Flat Washer M3, Stainless

234032600

$0.55

34

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

35

Stainless, Flat Washer 8 mm

234081600

$0.55

36

Support (Mirror) LH | GTI 5641.

269500402

Unavailable

Support (Mirror) RH | GTI 5641.

269500403

Unavailable

37

Mirror LH Ass'y | GTI 5641.

269500448

Unavailable

Mirror RH Ass'y | GTI 5641.

269500449

Unavailable

38

Storage Cover Lower | GTI 5641.

269500390

Unavailable

39

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

215861668

Unavailable

40

Flat Washer

211200007

Unavailable

41

Gas Shock Ass'y | Includes 82 - 85.

269500261

$119.99

42

BELLOW - Call your local BRP dealership

291000919

Unavailable

43

Washer

211200034

Unavailable

44

Storage Tray | Includes 77 - 78.

269500269

Unavailable

45

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

46

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

47

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

48

Storage Housing Cap

269500237

Unavailable

49

GASKET - Call your local BRP dealership

293250037

Unavailable

50

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

51

Rubber Bumper

293830005

$8.09

52

Tool Kit

295000066

Unavailable

53

Screw

211000098

$3.80
