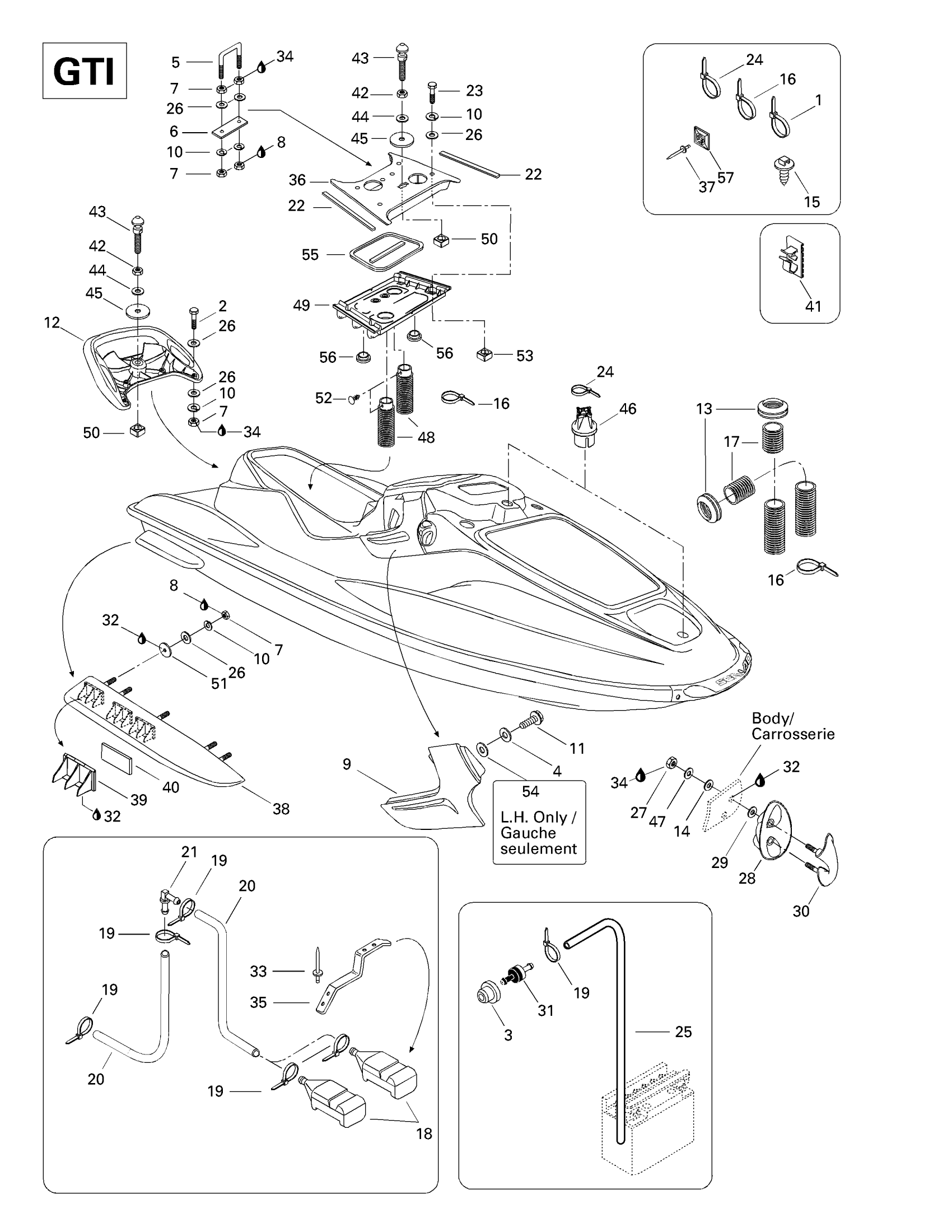

Sea-doo GTI, 5641, 1997 Body (GTI) Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.11

2

Hex. Screw M6 X 40

207064060

$1.69

3

Grommet

293720029

$1.59

4

Flat Washer 4 mm, Stainless

234042600

$1.15

5

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

6

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

7

Hex. Nut M6

232061600

$1.15

8

Loctite 243, 10 ml

293800060

$21.49

9

RH Intake Grill (Black)

291000854

Unavailable

LH Intake Grill (Black)

291000853

Unavailable

10

Lock Washer Helical M6

234161601

$1.15

11

Hex. Flange Screw K40 X 16

241141660

$1.48

12

Grab Handle (Black) | Includes 42 - 46.

295500369

Unavailable

13

VENT ADAPTOR - Call your local BRP dealership

291001100

Unavailable

14

Rubber Washer

293830037

$2.68

15

Mount Dart

293730040

$1.04

16

Tie Wrap 368 mm

293750008

$1.04

17

Vent Hose

291000884

Unavailable

18

Screen Bailer

292000079

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

23

Hex. Screw M6 X 70

207067060

$5.61

24

Tie Wrap 142 mm

293750002

$1.25

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

26

Flat Washer M6, Stainless

234062600

$0.77

27

Hex. Elastic Nut M8

232581600

$1.48

28

Shell (White)

292000258

Unavailable

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

Eye-Bow (White)

292000257

Unavailable

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Avdel Rivet 3/16"

293150037

$0.56

34

Loctite 271, 10 ml

293800005

$26.99

35

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

36

Bridge Upper

291000851

Unavailable

37

Pop Rivet 1/8''

293150033

Unavailable

38

RH Sponson Ass'y(Black) | Includes 38 - 40. GTI 5641.

292000307

Unavailable

LH Sponson Ass'y (Black) | GTI 5641.

292000308

Unavailable

39

Insert

293450149

Unavailable

40

CUSHION - Call your local BRP dealership

292000414

Unavailable

41

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

42

Hex. Jam Nut M10

232100600

$2.22

43

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

44

Flat Washer 10 mm, Stainless

234002600

$2.22

45

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

46

Grommet

293720040

Unavailable

47

Flat Washer 8 mm, Stainless

234082600

$2.43

48

Hose

237000007

Unavailable

49

Bridge Lower | GTI 5641.

291000852

Unavailable

50

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

51

GASKET - Call your local BRP dealership

293250026

Unavailable

52

Black, Dart

293730011

$0.99

53

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

54

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

55

Neoprene Seal (1PAC=3M)

219704364

$27.49

56

Plug

293000049

Unavailable

57

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

58

Elastic stop nut

231561600

Unavailable
