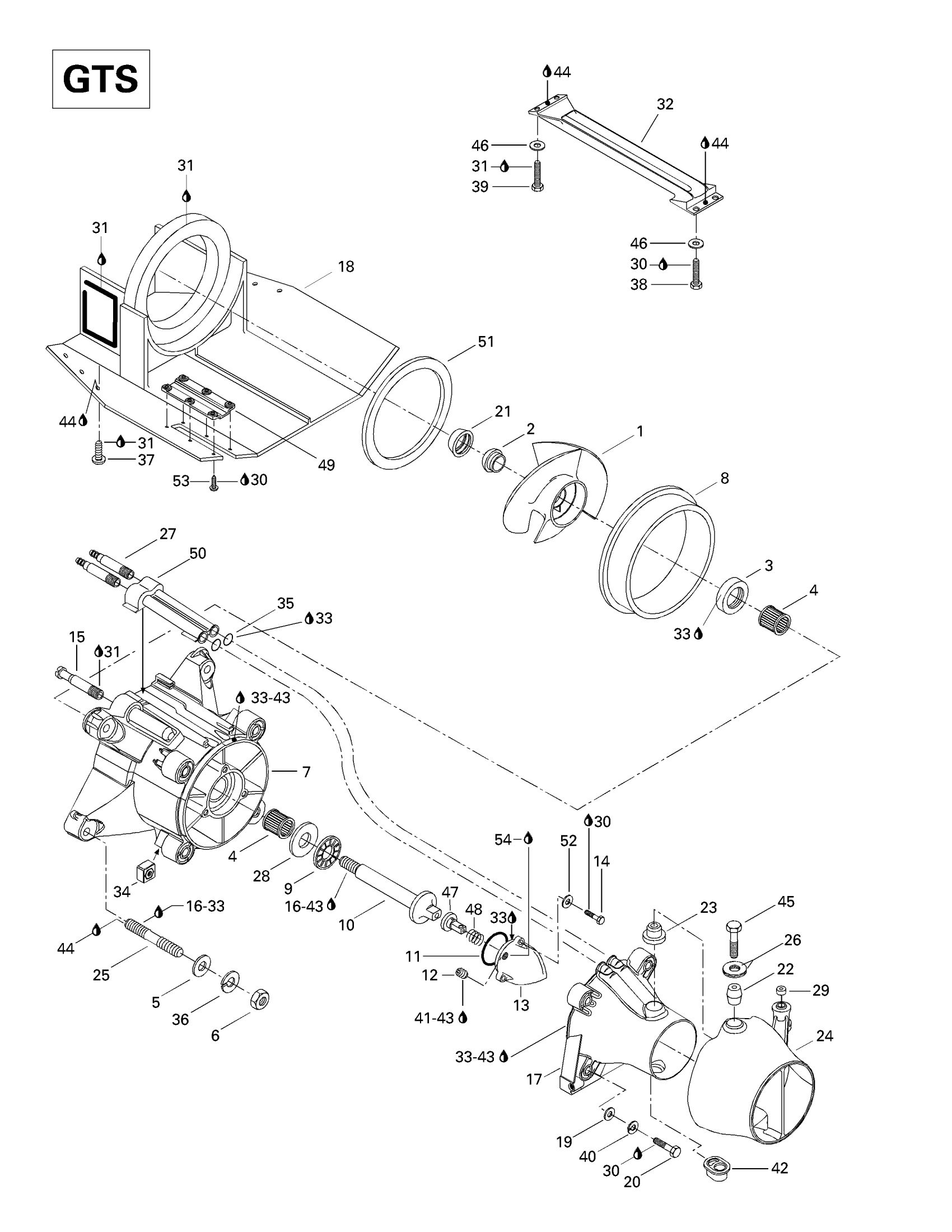

Sea-doo GTI, 5641, 1997 Propulsion System (GTS) Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000470

$391.99

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Flat Washer 10 mm, Stainless

234001600

$1.15

6

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

295500429

Unavailable

8

Wear Ring

271000290

$58.49

9

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

10

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.47

15

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

16

Loctite 271, 10 ml

293800005

$26.99

17

VENTURI ASS'Y - Call your local BRP dealership

271000510

Unavailable

18

Shoe (Black)

271000186190

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$2.43

20

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.90

21

Impeller Ring

271000517

$9.59

22

Sleeve

271001816

$14.99

23

Venturi Bushing

293900001

$7.62

24

STEERING NOZZLE ASS'Y - Call your local BRP dealership | Includes 23 - 24.

271000418

Unavailable

25

STUD-M10 - Call your local BRP dealership

211300015

Unavailable

26

Thrust Washer

211200002

Unavailable

27

BAILER FITTING - Call your local BRP dealership

293700017

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

Spacer

271000659

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

INLET GRATE - Call your local BRP dealership

271000466

Unavailable

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

34

Square Nut M8

211100033

$17.99

35

O-Ring

293300013

$8.18

36

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

37

Phillips Screw M6 X 25

208562560

$2.32

38

Hex. Screw M6 X 16

207161660

$1.59

39

Hex. Forming Screw M6 X 20

207162060

$1.29

40

Lock Washer 8 mm, Stainless

234181601

$0.55

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

Plastic Bushing

293900010

$9.59

43

Was 293800041 Loctite Primer 7649

219704458

$39.99

44

Silicone Sealant 51388, 300 ml

296000309

$36.99

45

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

46

Stainless Flat Washer M6

234061600

$0.33

47

Pusher

271000703

Unavailable

48

SPRING - Call your local BRP dealership

271000704

Unavailable

49

Ride Shoe Cap

291000446

Unavailable

50

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

51

SEAL NEOPRENE - Call your local BRP dealership

293200024

Unavailable

52

Flat Washer M5, Stainless

234051600

$0.77

53

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

54

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99
