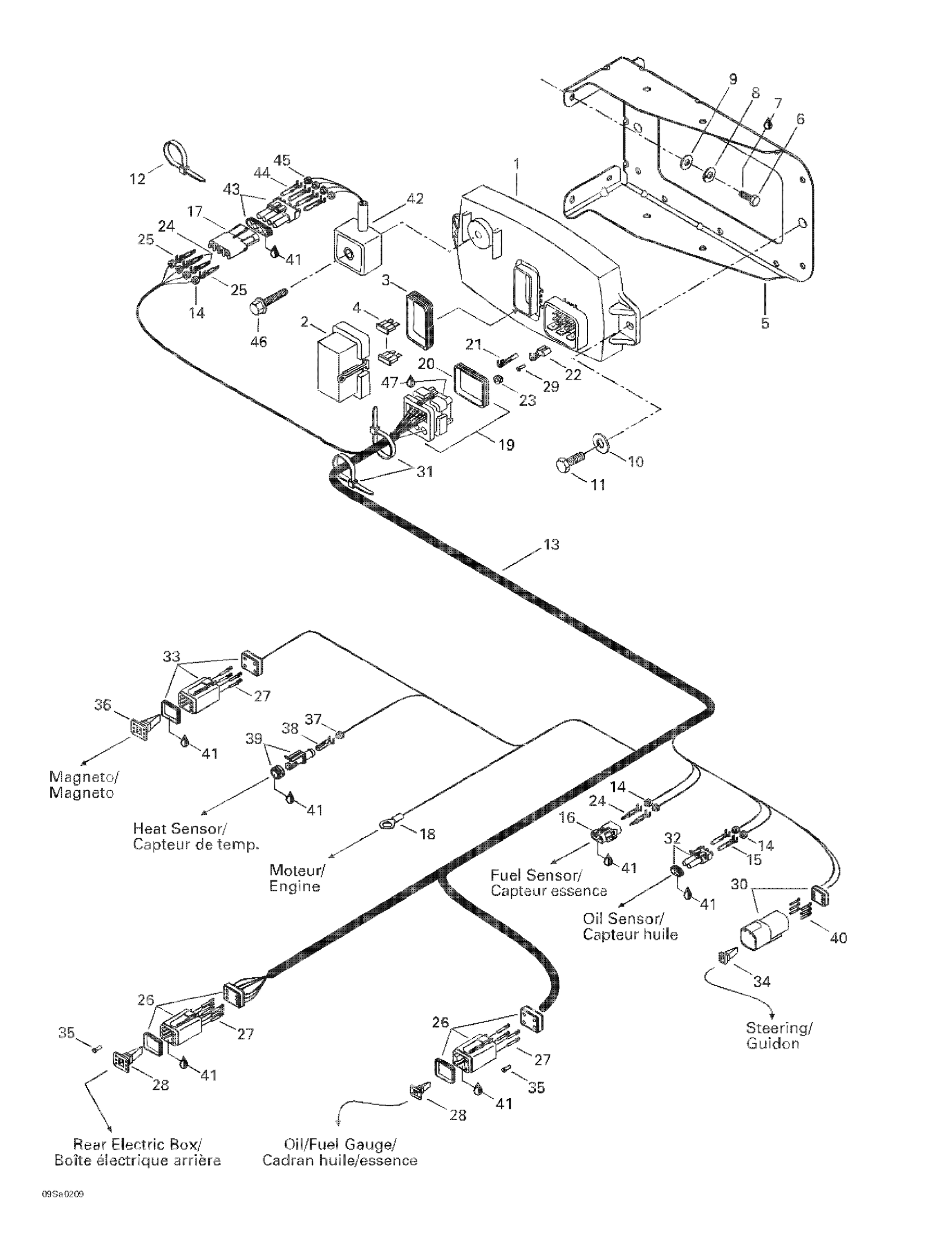

Sea-doo GTI, 5558/5559/6116, 2002 Electrical System Diagram

#

Description
Price

1

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 1 - 4.

278001496

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$2.72

Fuse, 5 Amperes | CE

278000344

$3.12

5

BOX SUPPORT ASS?Y - Call your local BRP dealership

278001644

Unavailable

6

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

7

Loctite 271, 10 ml

293800005

$20.77

8

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

9

Flat Washer 5 mm, Stainless

234052600

$0.64

10

Flat Washer M6, Stainless

234062600

$0.64

11

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

12

Tie-Rap 180 mm

414115200

$0.09

13

Main Harness Ass'y | Includes 13 - 40.

278001645

Unavailable

14

Wire Seal

278000218

$3.48

15

Female Terminal

278000223

$2.55

16

Female Housing, 2 Circuits

278000217

$7.59

17

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

18

Interrupter T.O.P.S.

278001992

$66.27

19

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

20

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

21

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

22

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

23

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

24

Male Terminal | XT Models

278000222

$2.55

25

Male Terminal

409004300

$5.30

26

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

27

Female Terminal

278000632

$1.69

28

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

29

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

30

Male Terminal Housing, 6 Circuits

710001539

$15.57

31

Tie Wrap 142 mm

293750002

$0.88

32

Male Connector, 2 Circuits

278000220

$11.02

33

Male Connector, 4 Circuits | CE

278000739

$14.92

34

Female Lock, 6 Circuits

278000735

$2.93

35

Sealing Cap

293000052

$2.55

36

Male Lock, 4 Circuits | CE

278000738

$2.82

37

Wire Seal

278001013

$2.72

38

Female Terminal

278001014

$2.72

39

Male Housing, 1 Circuit

278001012

$12.65

40

Male Terminal

278000631

$4.00

41

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

42

RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.

278001239

Unavailable

43

Male Housing, 4 Circuits

278000395

$14.57

44

Female Terminal

409007300

$0.36

45

Wire Seal

278000218

$3.48

46

Hex. Tapping Screw

211000139

Unavailable

47

*(Ormd) *Deoxit Aerosol *

293550034

$38.99
