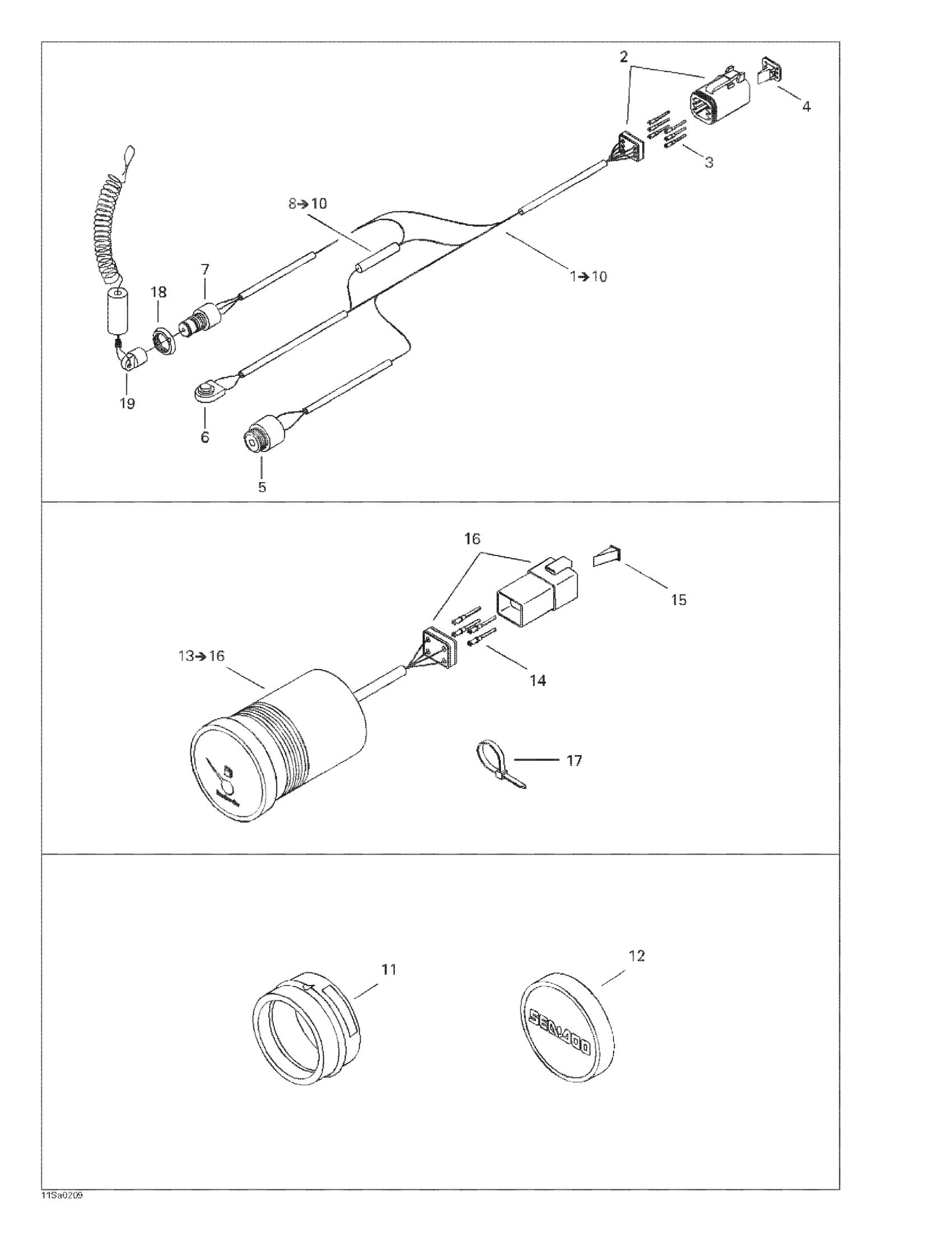

Sea-doo GTI, 5558/5559/6116, 2002 Electrical Accessories Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 10.

278001659

Unavailable

2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

3

Female Terminal

278000632

$2.09

4

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

5

BUZZER - Call your local BRP dealership

278001586

Unavailable

6

SWITCH - Call your local BRP dealership

278001587

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

Male Terminal

278000230

$4.39

9

Insulated Sheath

278001008

$3.28

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Gauge Support

293720047

Unavailable

12

Gauge Cap | STD

293000068

Unavailable

13

Oil/Fuel Gauge | Includes 59 to 62 / STD

278001622

Unavailable

14

Male Terminal | GTI RFI LE

278001664

Unavailable

15

Female Wedge, 4 Circuits

278000636

$4.39

16

Female Housing, 4 Circuits

278000635

$16.49

17

Tie-Rap 180 mm

414115200

$0.11

18

Safety Nut (DESS Switch)

278002963

$3.28

19

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99
