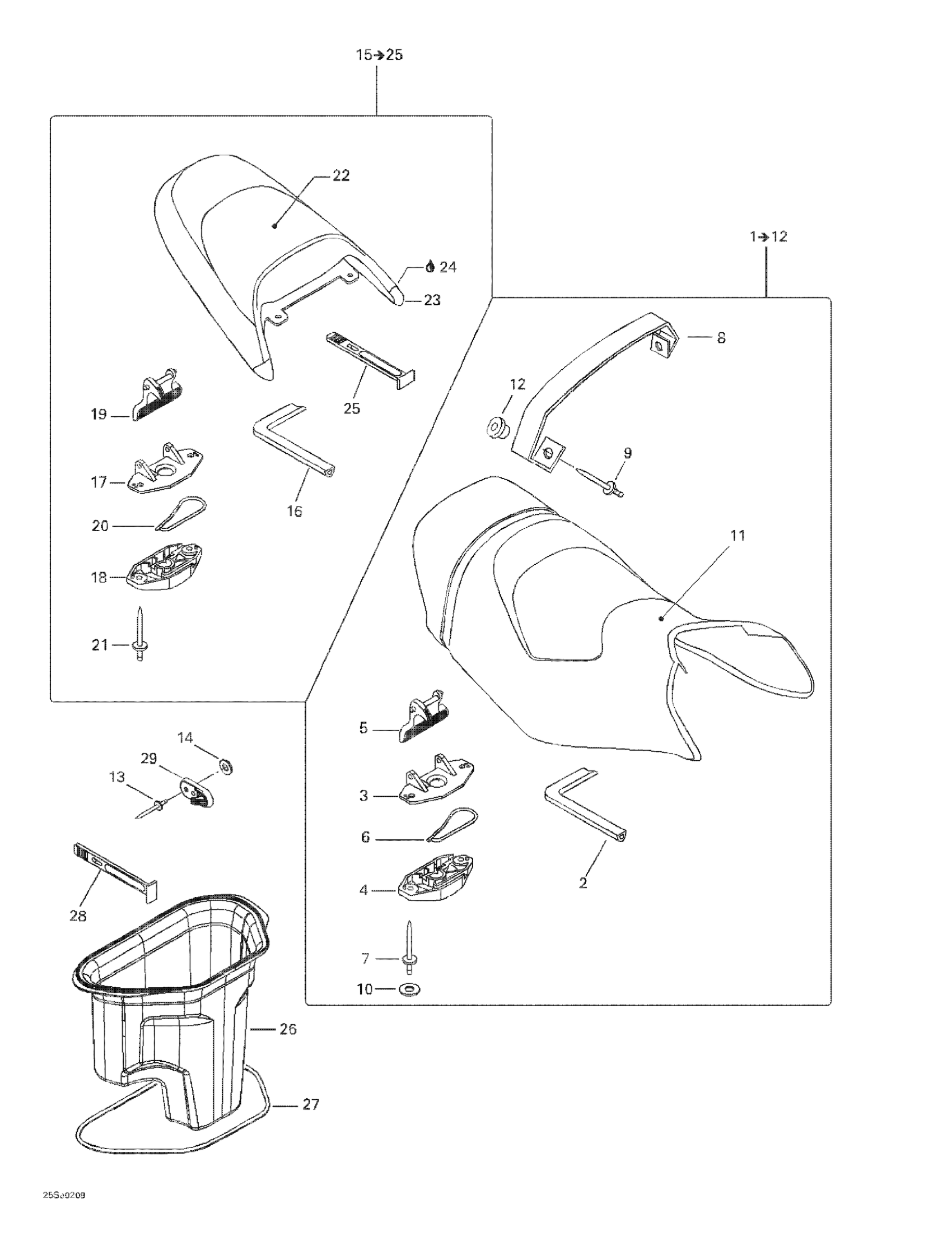

Sea-doo GTI, 5558/5559/6116, 2002 Seat Diagram

#

Description
Price

1

Seat Ass'y (Ultraviolet) | Includes 1 - 12.

269000800

Unavailable

2

Was 293200062 Seal

219704366

$76.49

3

Latch Ass'y

269700109

$24.99

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

8

Seat Strap, Violet

269000802

Unavailable

9

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable

10

Stainless Flat Washer M6

234061600

$0.33

11

Cover and Foam (Ultraviolet)

269000801

Unavailable

12

Grommet

293720067

$12.99

13

Pop Rivet 3/16"

293150039

$1.49

14

Flat Washer 5 mm, Stainless

234052600

$0.77

15

Rear Seat (Ultraviolet) | Includes 15 - 25.

269000796

Unavailable

16

Was 293200062 Seal

219704366

$76.49

17

Latch Ass'y

269700109

$24.99

18

Latch Ass'y

269700109

$24.99

19

Latch Ass'y

269700109

$24.99

20

Latch Spring

269700017

$9.19

21

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

22

Rear Seat Cover (Ultraviolet)

269000797

Unavailable

23

RH Seat Corner, Violet

269000798

Unavailable

LH Seat Corner, Violet

269000799

Unavailable

24

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

25

Strap

269502417

$17.69

26

Rear Tray

269500990

Unavailable

27

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

28

Strap

269502417

$17.69

29

Hook

269500521

$9.09
