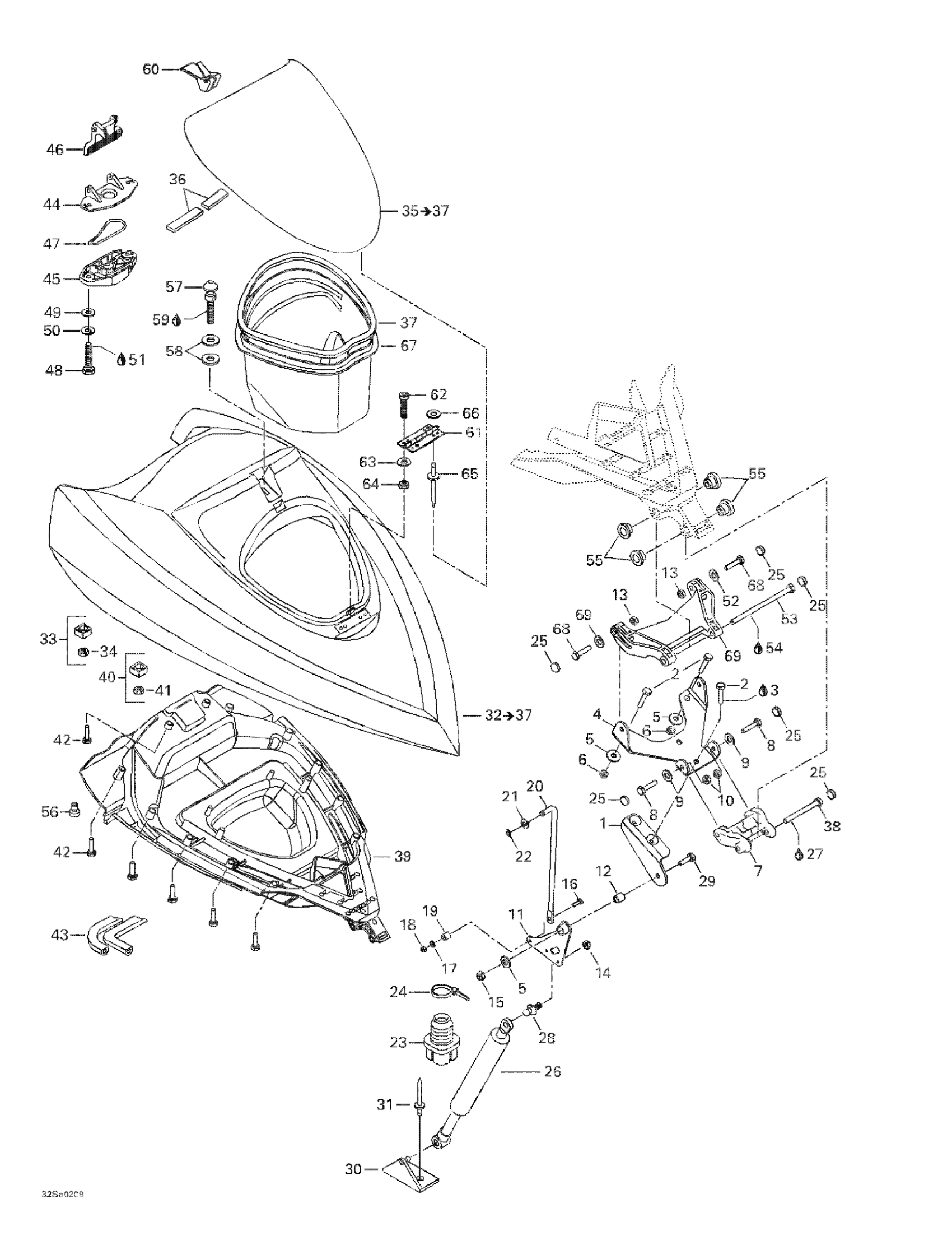

Sea-doo GTI, 5558/5559/6116, 2002 Front Storage Compartment Diagram

#

Description
Price

1

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

2

Hex. Forming Screw M6 X 20

207162060

$1.03

3

Loctite 243, 10 ml

293800060

$20.77

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.64

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

8

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

9

Stainless Flat Washer M6

234061600

$0.25

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

LEVER - Call your local BRP dealership

269501020

Unavailable

12

SPACER - Call your local BRP dealership

269501022

Unavailable

13

Hex. Elastic Stop Nut M6

232561600

$0.92

14

Hex. Elastic Nut M8

232581600

$1.25

15

Hex. Elastic Stop Nut M6

232561600

$0.92

16

Hex. Screw M4 X 16 | Europe

207141660

$1.22

17

Flat Washer 4 mm, Stainless

234041600

$0.91

18

Elastic Stop Nut M4

232541600

$0.92

19

Spacer

269500841

Unavailable

20

ROD - Call your local BRP dealership

269500842

Unavailable

21

Stainless Flat Washer M6

234061600

$0.25

22

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

23

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

24

Tie-Rap 180 mm

414115200

$0.09

25

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

26

GAS SHOCK - Call your local BRP dealership

269500988

Unavailable

27

Loctite 243, 10 ml

293800060

$20.77

28

Ball Head Stud

250300016

$11.69

29

Hex. Screw M6 X 30

207163060

$1.25

30

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.47

32

Cover, Violet | GTI.

269501100

Unavailable

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

34

Hex. Nut M6

232061600

$0.91

35

ACCESS COVER, VIOLET - Call your local BRP dealership | GTI.

269501102

Unavailable

36

Neoprene Seal (1PAC=3M)

219704364

$22.72

37

Was 293200017 Neoprene Seal

219704365

$118.27

38

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

39

Lower Strorage Cover

269500702

Unavailable

40

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

41

Hex. Nut M6

232061600

$0.91

42

Hex. Flange Screw K40 X 13

241141360

$0.56

43

Was 293200017 Neoprene Seal

219704365

$118.27

44

Latch Ass'y

269700109

$20.12

45

Latch Ass'y

269700109

$20.12

46

Latch Ass'y

269700109

$20.12

47

Latch Spring

269700017

$7.27

48

Hex. Screw M6 X 30

207063060

$1.51

49

Stainless Flat Washer M6

234061600

$0.25

50

Lock Washer Helical M6

234161601

$0.92

51

Loctite 243, 10 ml

293800060

$20.77

52

REAR ARM - Call your local BRP dealership

269500705

Unavailable

53

Hex. Screw M6 X 100

230060060

$6.08

54

Loctite 243, 10 ml

293800060

$20.77

55

Sleeve

269500706

$4.30

56

Rubber Bumper

293830005

$5.33

57

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

58

Flat Washer M6, Stainless

234062600

$0.64

59

Loctite 243, 10 ml

293800060

$20.77

60

Latch

269501487

$12.97

61

HINGE - Call your local BRP dealership

269500338

Unavailable

62

Socket Head Screw M5 X 16

205451660

$1.04

63

Flat Washer 5 mm, Stainless

234052600

$0.64

64

Hex. Elastic Nut M5 | X

232551600

$0.91

65

Pop Rivet 3/16"

204000081

$1.31

66

Flat Washer 5 mm, Stainless

234052600

$0.64

67

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

68

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

69

Stainless Flat Washer M6

234061600

$0.25
