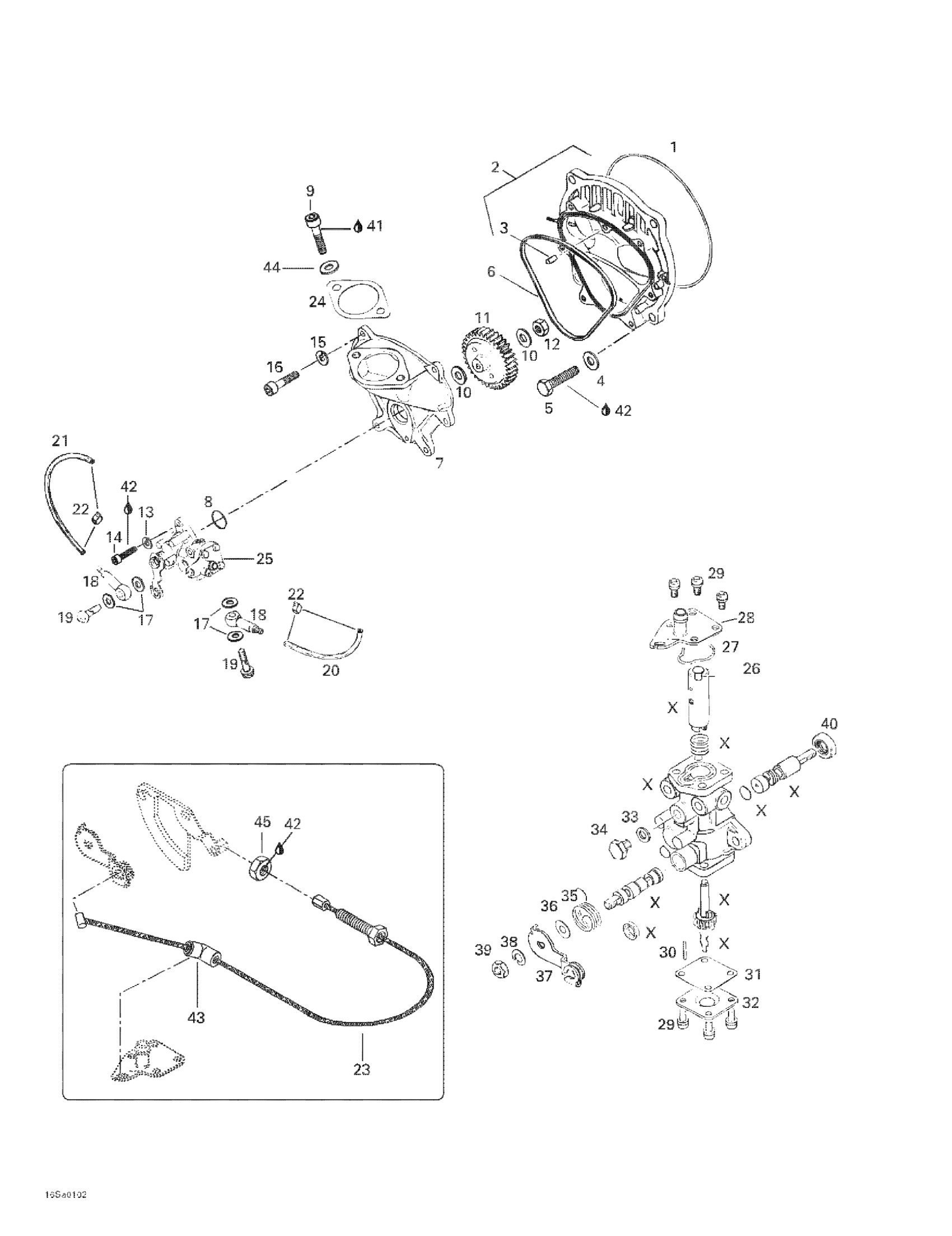

Sea-doo GTI, 5558/5559/6116, 2002 Oil Injection System, Oil Pump, Rotary Valve Diagram

#

Description
Price

1

O-RING - Call your local BRP dealership

293300023

Unavailable

2

Rotary Valve Cover | Includes 2 - 3.

290811252

Unavailable

3

Drive Pin 5 X 10

420929650

$1.68

4

Washer 8.4 mm

290250313

Unavailable

5

Hex. Screw M8 X 20

207182044

$0.74

6

Rubber Ring

290850160

Unavailable

7

Oil Pump Flange

290811193

Unavailable

8

O-RING - Call your local BRP dealership

293300018

Unavailable

9

Socket Head Screw M8 x 75 (Scotch Grip)

205587560

Unavailable

10

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

11

Oil Pump Gear 41 Teeth

290935945

Unavailable

12

Elastic Stop Nut M6

232561414

$0.55

13

Lock Washer

290845389

Unavailable

14

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

15

Lock Washer 6 mm

290845381

Unavailable

16

Socket Head Screw M6 X 20

205062060

$2.32

17

Sealing Washer

404146600

$2.97

18

Valve Ass’Y

420956010

$17.53

19

Banjo Bolt M6 X 16

404146800

Unavailable

20

Oil Hose 1500Mm Long

219704404

$17.26

21

Oil Hose 1500Mm Long

219704404

$17.26

22

Clamp 3.5 mm

290853843

Unavailable

23

INJECTION CABLE - Call your local BRP dealership

270000540

Unavailable

24

Gasket This part replaces 293250070.

293250134

$13.76

25

Oil Pump Ass'y | Includes 25 - 40.

290996725

Unavailable

26

Retainer

290256085

Unavailable

27

O-RING - Call your local BRP dealership

293300019

Unavailable

28

Pump Upper Plate

290956340

Unavailable

29

SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership

420241975

Unavailable

30

Stop Pin

290929900

Unavailable

31

Gasket

420850200

Unavailable

32

Pump Lower Plate

290956031

Unavailable

33

GASKET - Call your local BRP dealership

420227505

Unavailable

34

Hex. Screw M6 x 8

290841583

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Washer 6.2 mm

290227665

Unavailable

37

Lever Control

290848162

Unavailable

38

Lock Washer 6 mm

290845381

Unavailable

39

Hex. Nut M6

290242623

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Synthetic Grease, 400 G

293550010

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49

43

CABLE GUIDE - Call your local BRP dealership

270000187

Unavailable

44

Stainless, Flat Washer 8 mm

234081600

$0.55

45

Hex. Nut M6

232160600

$1.15

46

ENGINE GASKET SET - Call your local BRP dealership This part replaces 290886319.

420886319

Unavailable
