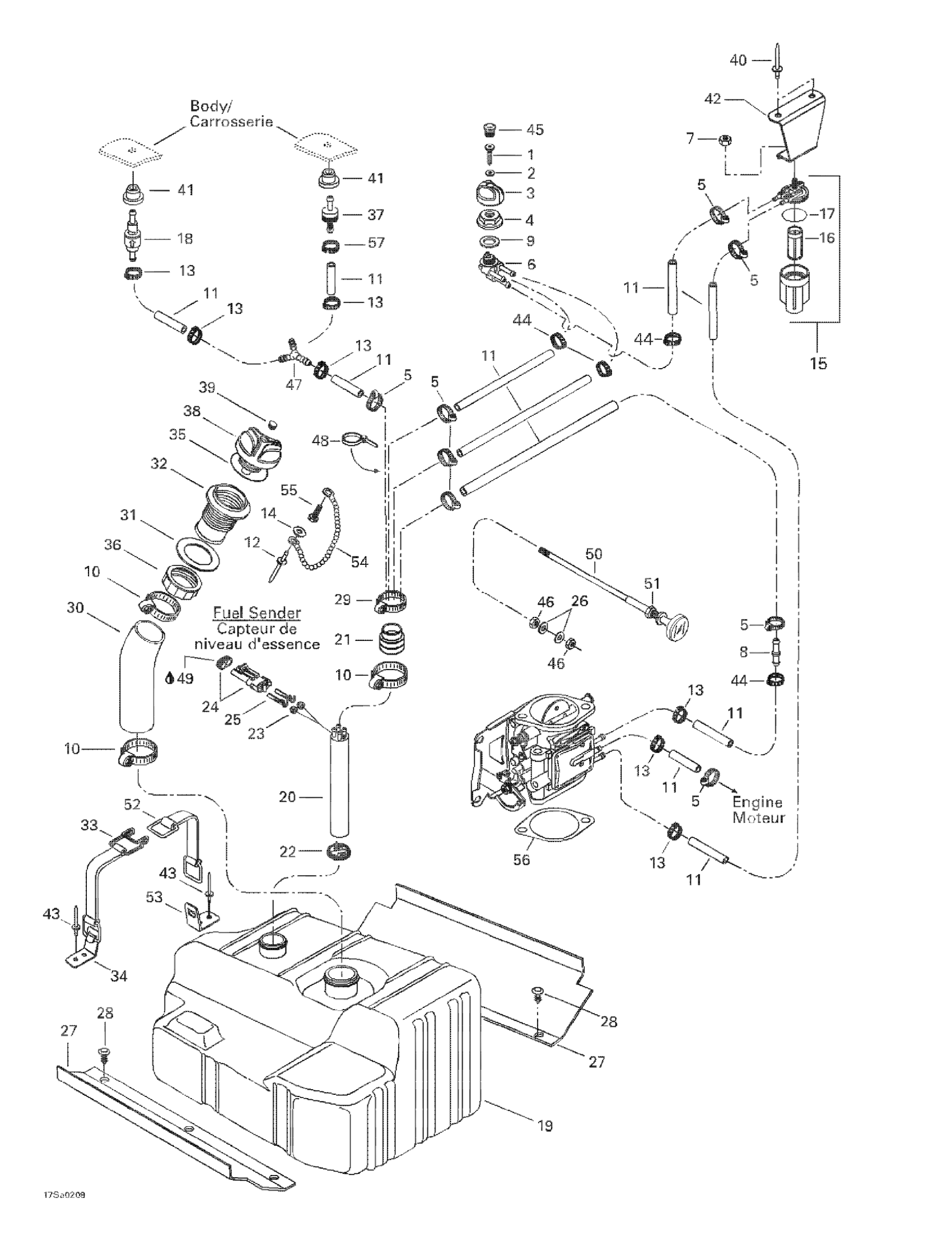

Sea-doo GTI, 5558/5559/6116, 2002 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$1.49

3

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Tridon Gear Clamp

293650170

$2.00

6

Fuel Valve

275500098

$43.99

7

Hex. Elastic Stop Nut M6

232561600

$1.49

8

Straight Fitting

293710039

$7.59

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$13.99

11

Was 275500549 Hose 1/4"

219704357

$199.99

12

Pop Rivet 1/8"

390407900

$1.49

13

Oetiker Gear Clamp

293650025

$3.19

14

Flat Washer M3, Stainless

234032600

$1.49

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$42.49

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$8.79

18

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

19

Fuel Tank

275500291

Unavailable

20

BAFFLE - Call your local BRP dealership | Includes 20 to 25

275500470

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

$4.49

24

Male Connector, 2 Circuits

278000220

$15.99

25

Female Terminal

278000223

$3.29

26

Stainless Flat Washer M6

234061600

$1.49

27

Rubber Pad

293830077

Unavailable

28

Black, Dart

293730006

$1.49

29

Tridon Clamp

293650035

$7.49

30

Filler Hose Neck

275500520

Unavailable

31

Gasket

293250029

$15.49

32

Filler Neck, Fuel

275500231

$14.75

33

Strap | Includes 33 - 34.

293850064

Unavailable

34

STRAP CLIP - Call your local BRP dealership

293850069

Unavailable

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.49

37

Check Valve

275500398

$11.49

38

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$28.99

39

Black, Snap Cap

293000034

$9.59

40

Pop Rivet 3/16"

293150043

$2.09

41

Grommet

293720029

$1.69

42

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

43

Avdel Rivet 3/16"

293150037

$1.49

44

Oetiker Clamp

293650042

$3.19

45

Black, Cap

275500241

$3.59

46

Hex. Nut M6

232160600

$1.49

47

Y-Fitting

293710059

$9.89

48

Tie-Rap 180 mm

414115200

$1.49

49

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

50

CHOKE CABLE - Call your local BRP dealership

270000545

Unavailable

51

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

52

Fuel Tank Strap

293850036

$18.99

53

STRAP CLIP - Call your local BRP dealership

293850069

Unavailable

54

Fuel Cap Chain

275500974

$19.99

55

Screw K40 X 10

241140060

$1.49

56

Gasket This part replaces 293250070.

293250134

$13.76
