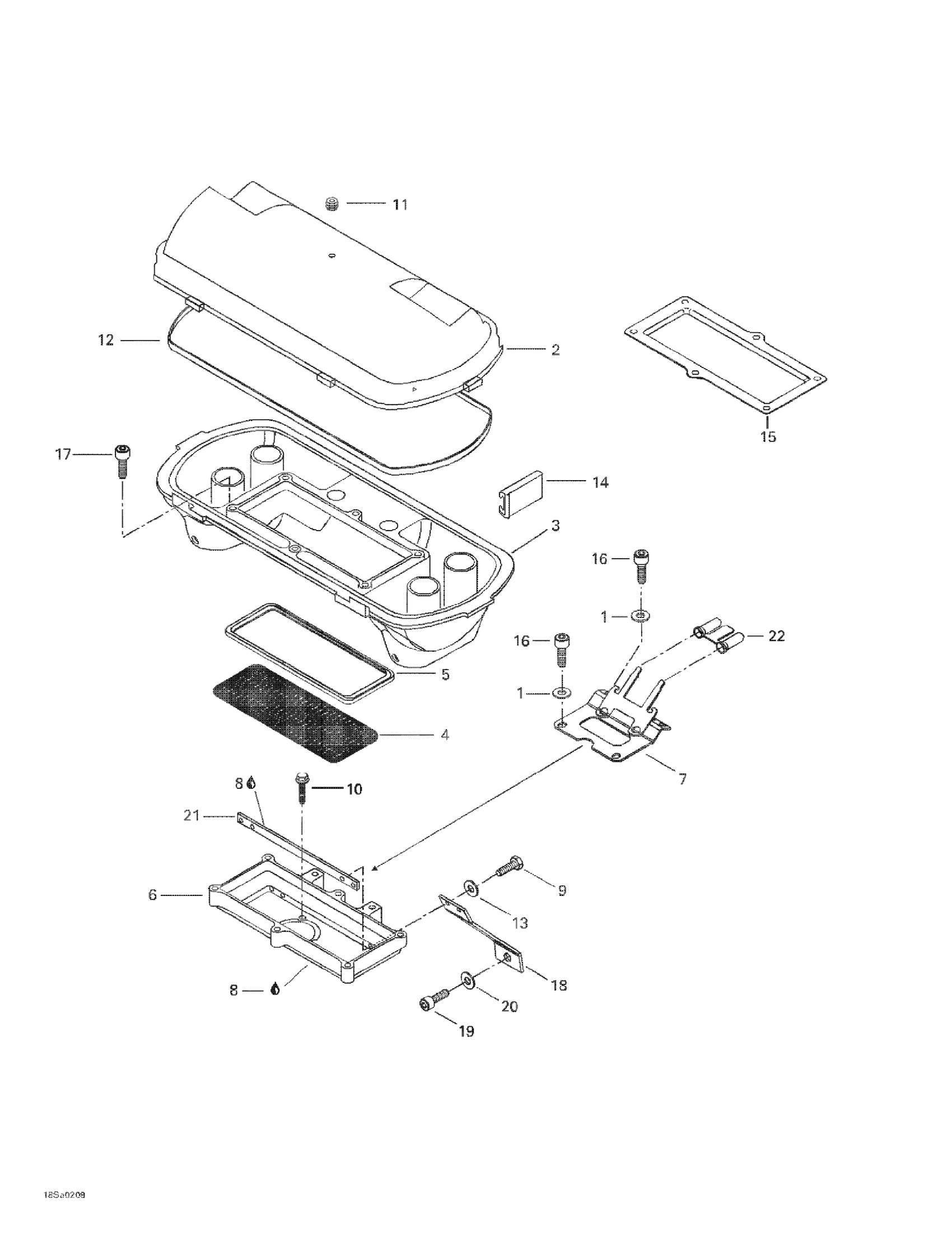

Sea-doo GTI, 5558/5559/6116, 2002 Air Intake System Diagram

#

Description
Price

1

Stainless Flat Washer M6

234061600

$0.33

2

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

3

AIR SILENCER BASE - Call your local BRP dealership

273000103

Unavailable

4

FLAME ARRESTER - Call your local BRP dealership

273000117

Unavailable

5

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

6

Housing Arrester

273000131

Unavailable

7

Support

270000505

Unavailable

8

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

9

Hex. Screw M5 X 16, Scotch Grip

207351660

$0.83

10

Flanged Hex. Screw M6 X 25, Scotch

207562560

$0.78

11

Rubber Bumper

293830005

$8.09

12

GASKET - Call your local BRP dealership

293250023

Unavailable

13

Flat Washer M5, Stainless

234051600

$0.77

14

Retainer Clip

273000006

Unavailable

15

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

16

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

17

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

18

Flame Arrester Support MAG

270000507

Unavailable

FLAME ARRESTER SUPPORT PTO - Call your local BRP dealership

270000508

Unavailable

19

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

20

Flat Washer M8.5 x 18

293050001

$3.07

21

THREADED PLATE - Call your local BRP dealership

270000393

Unavailable

22

INSULATOR - Call your local BRP dealership

278000213

Unavailable
