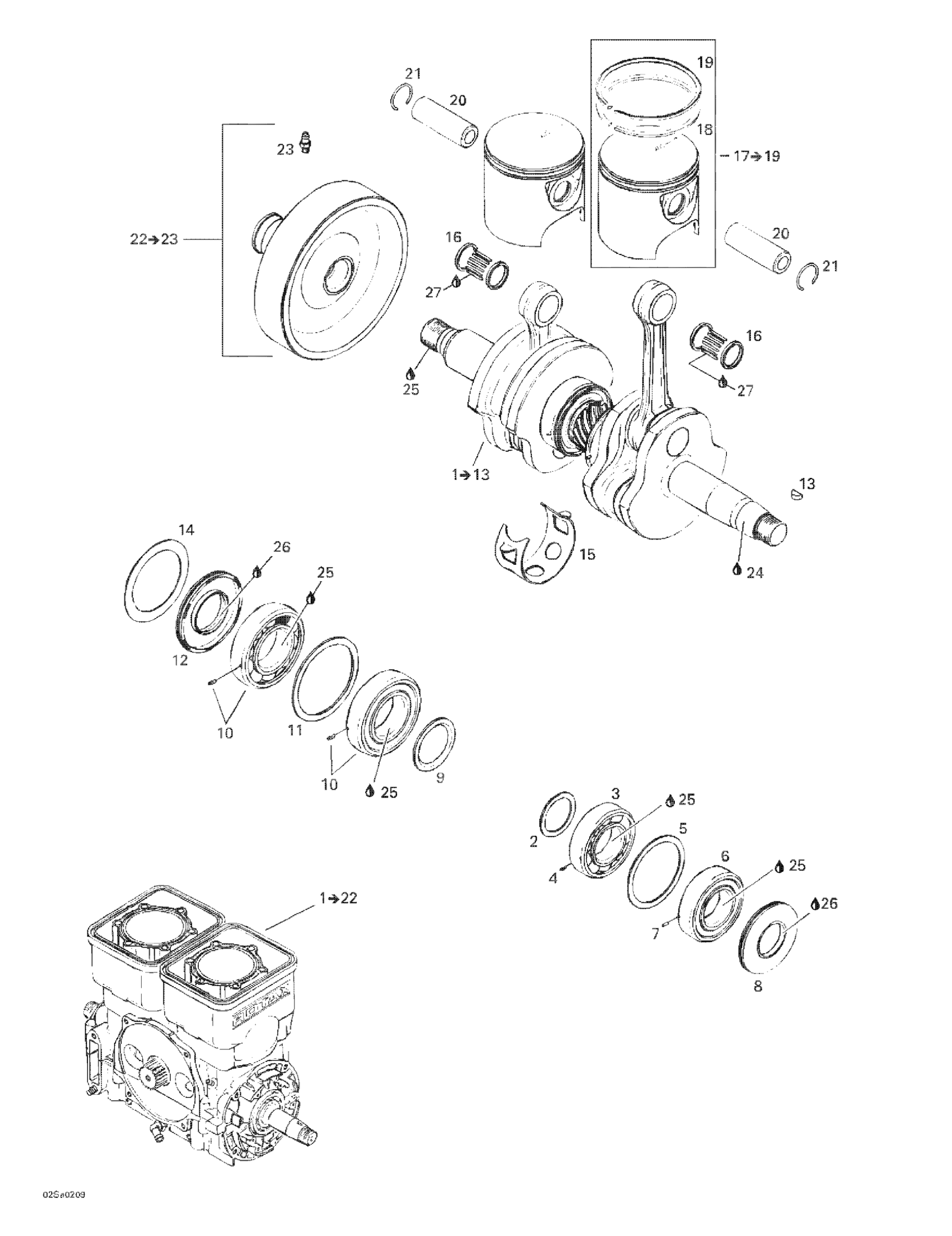

Sea-doo GTI, 5558/5559/6116, 2002 Crankshaft And Pistons Diagram

#

Description
Price

1

SHORT BLOCK ASS'Y (SILVER) - Call your local BRP dealership | Includes 1 - 20.

290071703

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership

421000097

Unavailable

1

Crankshaft Ass'y | Includes 1 - 11.

290887867

Unavailable

1

REBUILD-CRANKSHAFT 717 95-96 - Call your local BRP dealership

421000074

Unavailable

2

RING-DISTANCE RING - Call your local BRP dealership This part replaces 290827447.

420827448

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

6

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

7

Dowel Pin

420929972

Unavailable

8

Oil Seal This part replaces 290830749.

420830749

$18.54

9

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

10

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

11

Retaining Disk

420927710

$7.41

12

Oil Seal This part replaces 290831952.

420831952

$18.01

13

Woodruff Key

420246055

$2.43

14

RETAINING SHIM - Call your local BRP dealership

290926060

Unavailable

15

Retaining Ring

290926070

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.

420832421

Unavailable

17

PISTON WITH 2 RINGS, 81.90 MM - Call your local BRP dealership | Includes 18 - 20.

290887670

Unavailable

Piston with 2 Rings, 82.15 mm

290887671

Unavailable

Piston with 2 Rings, 82.40 mm

290887672

Unavailable

18

Rectangular Ring 82.00 mm

290815080

Unavailable

Rectangular Ring 82.25 mm

290815081

Unavailable

Rectangular Ring 82.50 mm

290815082

Unavailable

19

Semi-Trapez Ring 82.00 mm

290815070

Unavailable

Semi-Trapez Ring 82.25 mm

290815071

Unavailable

Semi-Trapez Ring 82.50 mm

290815072

Unavailable

20

Piston Pin This part replaces 290916402.

420916404

$28.49

21

CIRCLIP - Call your local BRP dealership

420845100

Unavailable

22

Flywheel Clutch Ass'y | Includes 23 - 24.

290958012

Unavailable

23

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Dow Corning 111, 150 g

413707000

$59.99

27

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

28

ENGINE GASKET SET - Call your local BRP dealership This part replaces 290886319.

420886319

Unavailable

29

Cylinder Gasket Set (Not Shown)

290886318

Unavailable
