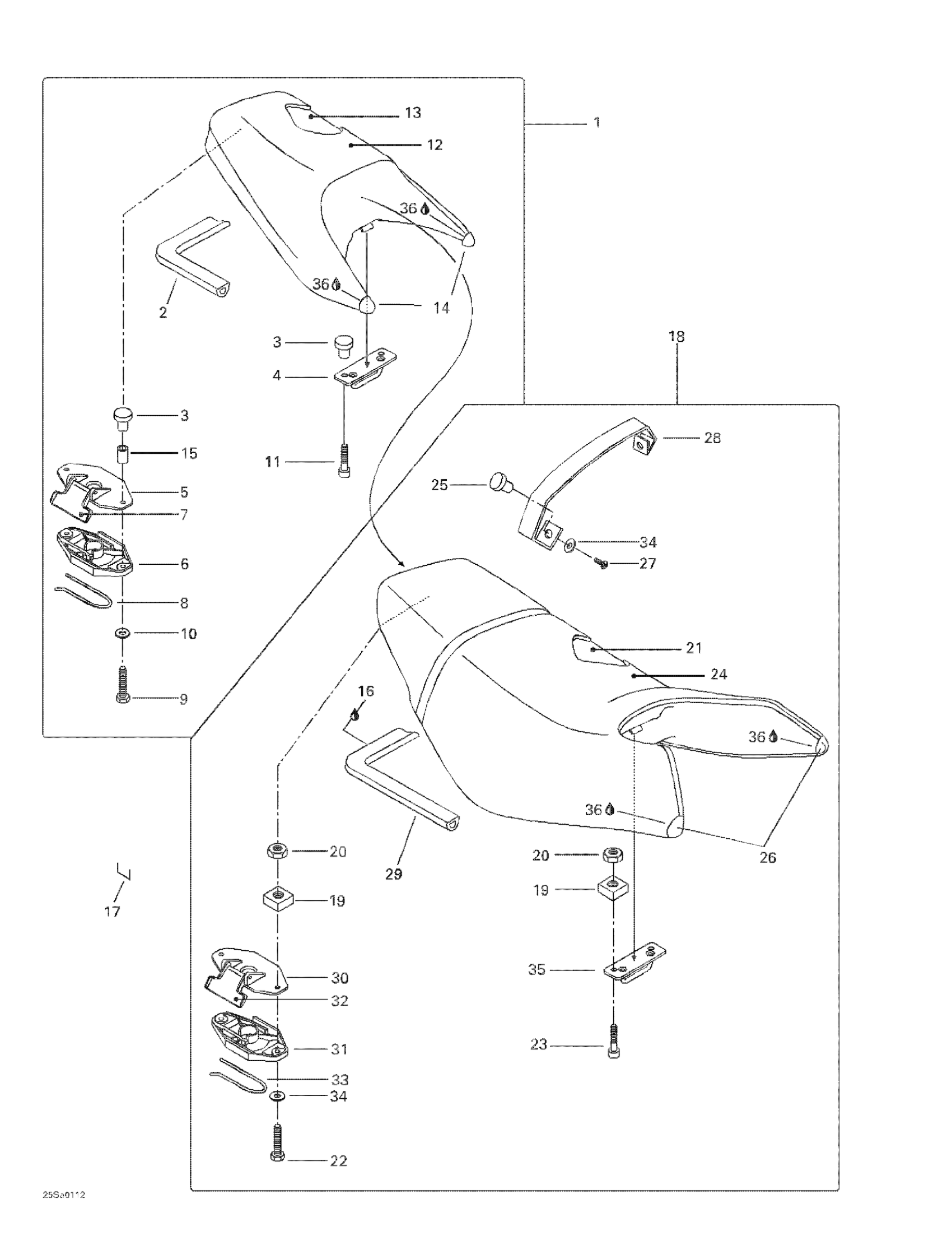

Sea-doo GTI, 5552, 2001 Seat And Engine Cover Diagram

#

Description
Price

1

Rear Seat Ass'y | Includes 1 - 15.

269000638

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$135.79

3

Nut Welded, M6

293100003

$7.25

4

Hook (Seat Base)

291001357

Unavailable

5

Latch Ass'y

269700109

$23.10

6

Latch Ass'y

269700109

$23.10

7

Latch Ass'y

269700109

$23.10

8

Latch Spring

269700017

$8.34

9

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.73

10

Stainless Flat Washer M6

234061600

$0.28

11

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.57

12

REAR SEAT COVER - Call your local BRP dealership

269000639

Unavailable

13

Rear Seat Foam

269000353

Unavailable

14

RH Rear Seat Corner

269000640

Unavailable

LH Rear Seat Corner

269000641

Unavailable

15

SPACER - Call your local BRP dealership

291000532

Unavailable

16

Loctite 401, 1 Oz

293800048

Unavailable

17

Staple

293730005

Unavailable

18

Front Seat Ass'y | Includes 18 - 35.

269000642

Unavailable

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

20

Hex. Nut M6

232061600

$1.04

21

Front Foam

269000358

Unavailable

22

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

23

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

24

Front Seat Cover

269000643

Unavailable

25

Nut Welded, M6

293100003

$7.25

26

Seat Corner

269000645

Unavailable

27

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

28

Seat Strap

269000644

Unavailable

29

Was 293200017 Neoprene Seal

219704365

$135.79

30

Latch Ass'y

269700109

$23.10

31

Latch Ass'y

269700109

$23.10

32

Latch Ass'y

269700109

$23.10

33

Latch Spring

269700017

$8.34

34

Stainless Flat Washer M6

234061600

$0.28

35

Hook (Seat Base)

291001357

Unavailable

36

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable
