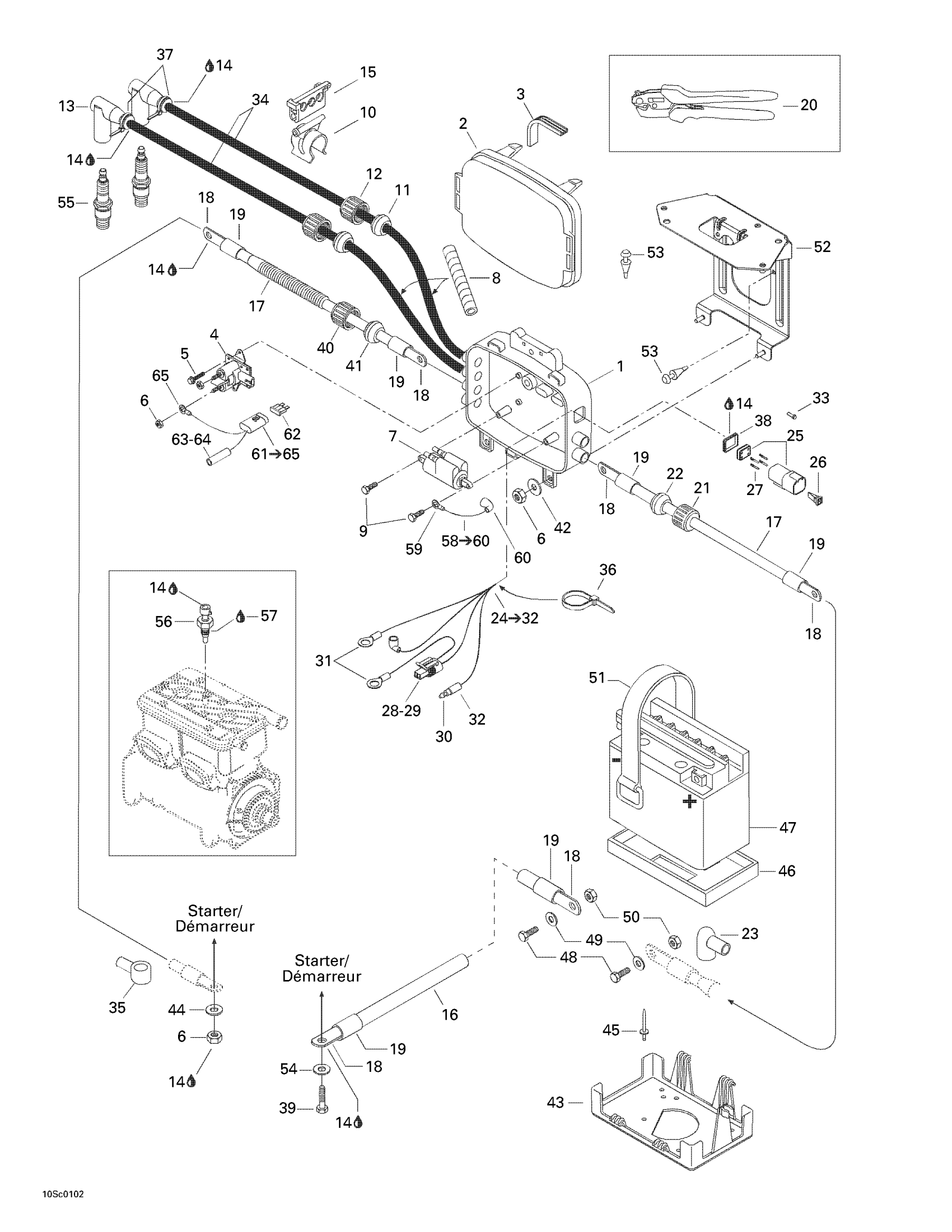

Sea-doo GTI, 5522/5523, 2001 Rear Electrical Box Diagram

#

Description
Price

1

Electrical Box Base

278001712

Unavailable

2

ELECTRIC BOX COVER - Call your local BRP dealership

278001433

Unavailable

3

GASKET - Call your local BRP dealership

278001173

Unavailable

4

Starter Relay

278003012

$42.49

5

Hex. Flange Screw M6 X 10

210261040

$1.48

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

Ignition Coil

278000383

$99.49

8

Housing 9 mm, Meter

293100012

Unavailable

9

SCREW-TAPP.HEX.ISO.1479C - Call your local BRP dealership

209462540

Unavailable

10

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

11

Grommet

278000682

Unavailable

12

Electric Wire Cap

278000100

Unavailable

13

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

14

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

15

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

16

Ground Cable Battery, No. 6, Meter

278001667

Unavailable

17

Battery Red Cable | Includes 26 to 29

278001646

Unavailable

17

Red Starter Cable | Includes 49 to 52

278001679

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Electric Wire Cap

278000100

Unavailable

22

GROMMET - Call your local BRP dealership

278000098

Unavailable

23

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

24

Electric Box Harness | Includes 24 - 32.

278001184

Unavailable

25

Male Terminal Housing, 6 Circuits

710001539

$19.99

26

Female Lock, 6 Circuits

278000735

$3.19

27

Male Terminal

278000631

$4.39

28

Male Connector, 2 Circuits

278001113

$16.86

29

Female Terminal

278001114

$3.19

30

Male Terminal

278000230

$4.39

31

Open Barrel

278000992

$2.21

32

Insulated Sheath

278001008

$3.28

33

Sealing Cap

293000052

$3.19

34

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

35

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

36

Tie Wrap 94 mm | 4X4

293750001

$1.03

37

Tie Wrap 142 mm

293750002

$1.25

38

Gasket

293200030

Unavailable

39

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

40

Electric Wire Cap

278000100

Unavailable

41

GROMMET - Call your local BRP dealership

278000098

Unavailable

42

Flat Washer M6, Stainless

234062600

$0.77

43

Battery Support

278001430

Unavailable

44

Stainless Flat Washer M6

234061600

$0.33

45

Avdel Rivet 3/16"

293150037

$0.56

46

Battery Lower Pad

278001234

Unavailable

47

Battery 19A | Includes 5 to 8

278001756

$153.36

48

Hex. Screw M6 X 16

207161644

$0.74

49

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

50

Hex. Nut M6

232061414

$0.53

51

Retainer Strap

293850097

$11.64

52

BOX SUPPORT - Call your local BRP dealership

278001615

Unavailable

53

Rubber Bumper

293830005

$8.09

54

Stainless, Flat Washer 8 mm

234081600

$0.55

55

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

56

Temperature Sensor

278000965

$73.99

57

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

58

Ground Harness | Includes 82 - 84.

278000664

Unavailable

59

Ring Terminal

278000300

Unavailable

60

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

61

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

62

Fuse, 15 Amperes

278000343

$3.28

63

Female Terminal | DS 650 X

278001009

$3.19

64

Insulated Sheath

278001007

$3.58

65

Ring Terminal

278000300

Unavailable
