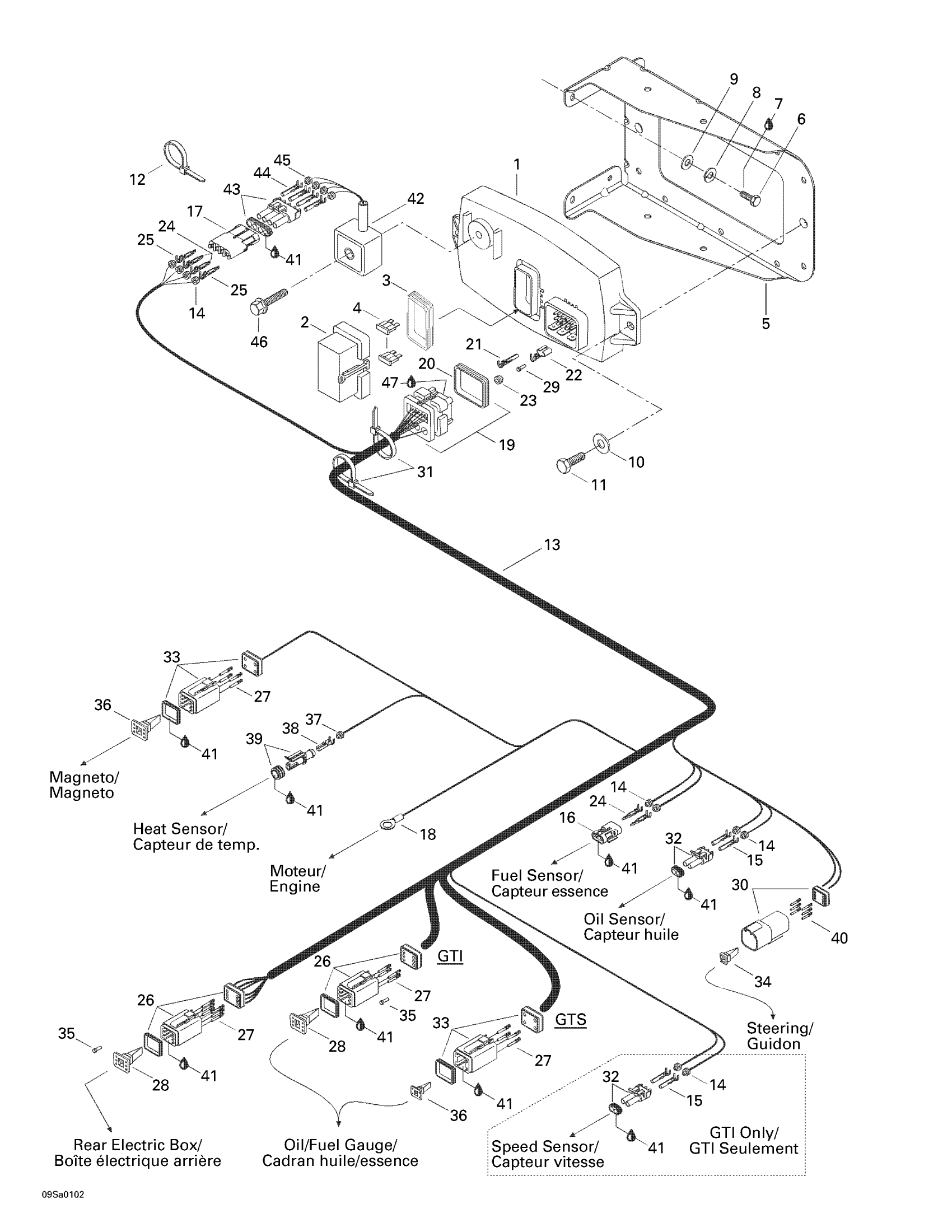

Sea-doo GTI, 5522/5523, 2001 Electrical System Diagram

#

Description
Price

1

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 1 - 4.

278001496

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.28

Fuse, 5 Amperes | CE

278000344

$3.28

5

BOX SUPPORT ASS?Y - Call your local BRP dealership

278001644

Unavailable

6

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

7

Loctite 271, 10 ml

293800005

$26.99

8

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

9

Flat Washer 5 mm, Stainless

234052600

$0.77

10

Flat Washer M6, Stainless

234062600

$0.77

11

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

12

Tie-Rap 180 mm

414115200

$0.11

13

Main Harness Ass'y | Includes 13 - 40.

278001645

Unavailable

Main Harness Ass'y | Includes 13 - 40.

278001660

Unavailable

14

Wire Seal

278000218

$4.39

15

Female Terminal

278000223

$3.19

16

Female Housing, 2 Circuits

278000217

$9.59

17

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

18

Open Barrel

278001165

Unavailable

19

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

20

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

21

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

22

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

23

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

24

Male Terminal | XT Models

278000222

$3.19

25

Male Terminal

409004300

$5.61

26

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

27

Female Terminal

278000632

$2.09

28

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

29

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

30

Male Terminal Housing, 6 Circuits

710001539

$19.99

31

Tie Wrap 142 mm

293750002

$1.25

32

Male Connector, 2 Circuits

278000220

$15.49

33

Male Connector, 4 Circuits | CE

278000739

$19.49

34

Female Lock, 6 Circuits

278000735

$3.19

35

Sealing Cap

293000052

$3.19

36

Male Lock, 4 Circuits | CE

278000738

$3.09

37

Wire Seal

278001013

$3.28

38

Female Terminal

278001014

$3.28

39

Male Housing, 1 Circuit

278001012

$16.86

40

Male Terminal

278000631

$4.39

41

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

42

RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.

278001239

Unavailable

43

Male Housing, 4 Circuits

278000395

$15.99

44

Female Terminal

409007300

$0.45

45

Wire Seal

278000218

$4.39

46

Hex. Tapping Screw

211000139

Unavailable

47

*(Ormd) *Deoxit Aerosol *

293550034

$38.99
