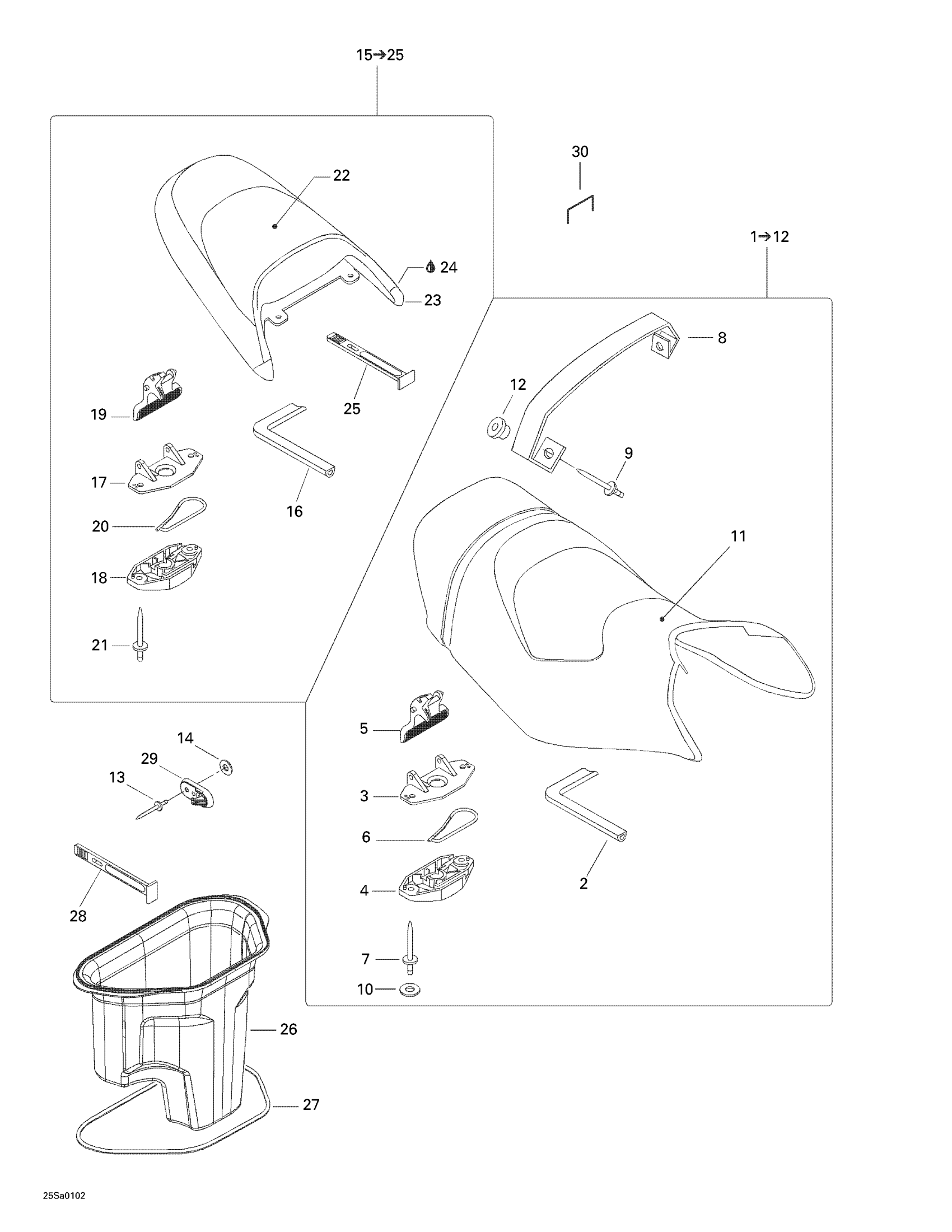

Sea-doo GTI, 5522/5523, 2001 09- Seat Diagram
#
Description
Price
1
Seat Ass'y (Marine Green) | Includes 1 - 12. GTS 5520/5521.
269000687
Unavailable
Seat Ass'y (Cozumel Green) | GTI 5522/5523.
269000710
Unavailable
2
Was 293200062 Seal
219704366
$76.49
3
Latch Ass'y
269700109
$24.99
4
Latch Ass'y
269700109
$24.99
5
Latch Ass'y
269700109
$24.99
6
Latch Spring
269700017
$9.19
7
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
8
Seat Strap (Marine Green) | GTS 5520/5521.
269000690
Unavailable
Seat Strap (Cozumel Green) | GTI 5522/5523.
269000720
Unavailable
9
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
10
Stainless Flat Washer M6
234061600
$0.33
11
Cover and Foam (Marine Green) | GTS 5520/5521.
269000689
Unavailable
Cover and Foam (Cozumel Green) | GTI 5522/5523.
269000711
Unavailable
12
Grommet
293720067
$12.99
13
Pop Rivet 3/16"
293150039
$1.49
14
Flat Washer 5 mm, Stainless
234052600
$0.77
15
Rear Seat (Marine Green) | Includes 15 - 25. GTS 5520/5521.
269000691
Unavailable
Rear Seat (Cozumel Green) | GTI 5522/5523.
269000706
Unavailable
16
Was 293200062 Seal
219704366
$76.49
17
Latch Ass'y
269700109
$24.99
18
Latch Ass'y
269700109
$24.99
19
Latch Ass'y
269700109
$24.99
20
Latch Spring
269700017
$9.19
21
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
22
Rear Seat Cover (Marine Green) | GTS 5520/5521.
269000683
Unavailable
Rear Seat Cover (Cozumel Green) | GTI 5522/5523.
269000707
Unavailable
23
RH Seat Corner (Marine Green) | GTS 5520/5521.
269000684
Unavailable
RH Seat Corner (Cozumel Green) | GTI 5522/5523.
269000708
Unavailable
LH Seat Corner (Marine Green) | GTS 5520/5521.
269000685
Unavailable
LH Seat Corner (Cozumel Green) | GTI 5522/5523.
269000709
Unavailable
24
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
25
Strap
269502417
$17.69
26
Rear Tray
269500990
Unavailable
27
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
28
Strap
269502417
$17.69
29
Hook
269500521
$9.09
30
Staple
293730005
Unavailable
