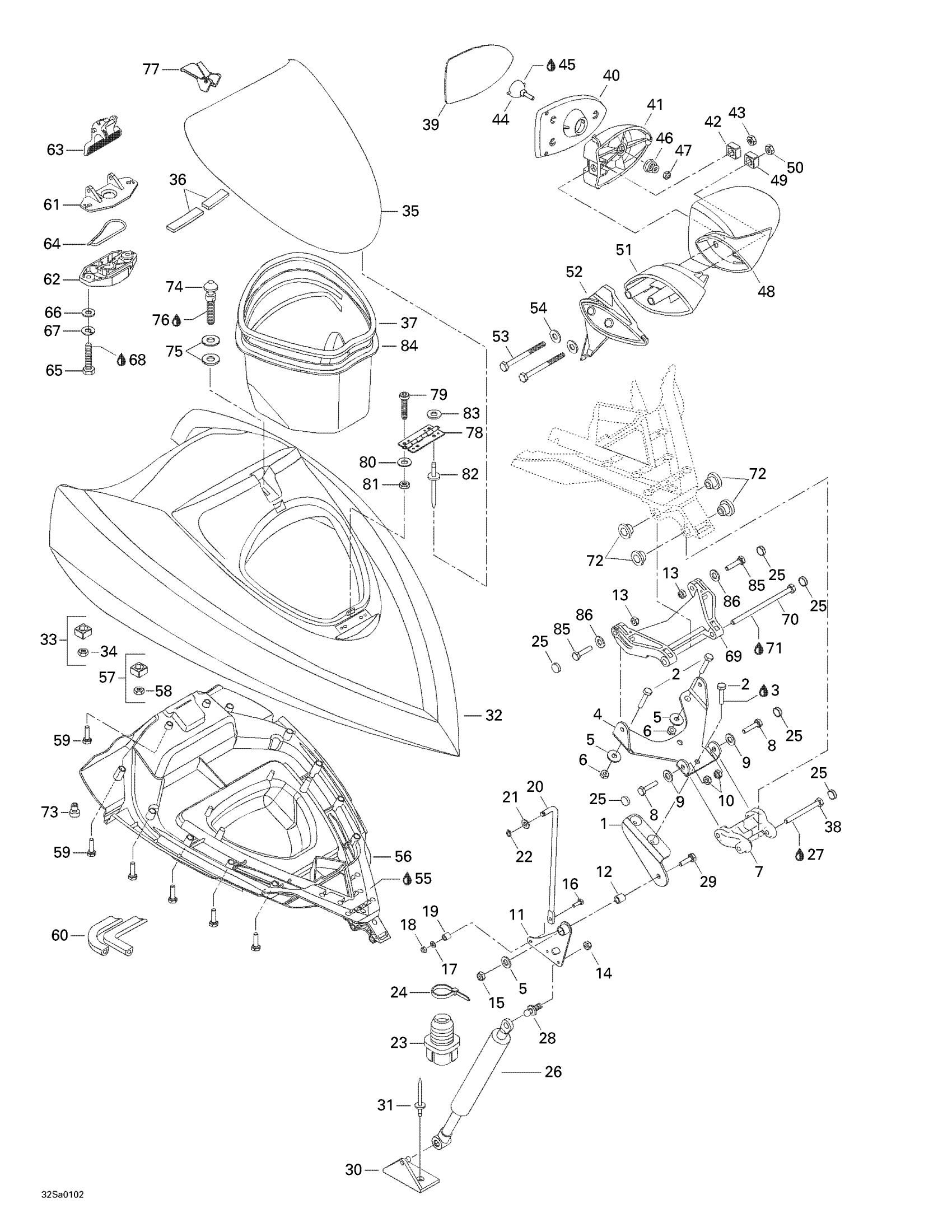

Sea-doo GTI, 5522/5523, 2001 Front Storage Compartment Diagram

#

Description
Price

1

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

2

Hex. Forming Screw M6 X 20

207162060

$1.18

3

Loctite 243, 10 ml

293800060

$21.49

4

PIVOT SUPPORT - Call your local BRP dealership

269500703

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.73

6

Hex. Elastic Stop Nut M6

232561600

$1.06

7

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

8

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

9

Stainless Flat Washer M6

234061600

$0.28

10

Hex. Elastic Stop Nut M6

232561600

$1.06

11

LEVER - Call your local BRP dealership

269501020

Unavailable

12

SPACER - Call your local BRP dealership

269501022

Unavailable

13

Hex. Elastic Stop Nut M6

232561600

$1.06

14

Hex. Elastic Nut M8

232581600

$1.43

15

Hex. Elastic Stop Nut M6

232561600

$1.06

16

Hex. Screw M4 X 16 | Europe

207141660

$1.40

17

Flat Washer 4 mm, Stainless

234041600

$1.04

18

Elastic Stop Nut M4

232541600

$1.06

19

Spacer

269500841

Unavailable

20

ROD - Call your local BRP dealership

269500842

Unavailable

21

Stainless Flat Washer M6

234061600

$0.28

22

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

23

Cable Grommet

293720063

Unavailable

24

Tie-Rap 180 mm

414115200

$0.10

25

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

26

GAS SHOCK - Call your local BRP dealership

269500988

Unavailable

27

Loctite 243, 10 ml

293800060

$21.49

28

Ball Head Stud

250300016

$13.42

29

Hex. Screw M6 X 30

207163060

$1.43

30

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.54

32

Cover (Marine Green) | Includes 32-34, GTS 5520/5521

269500873

Unavailable

Cover (Cozumel Green) | GTI 5522/5523.

269500918

Unavailable

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

34

Hex. Nut M6

232061600

$1.04

35

Access Cover (Marine Green) | Includes 35 - 37. GTS 5520/5521.

269500875

Unavailable

Access Cover (Cozumel Green) | GTI 5522/5523.

269500967

Unavailable

36

Neoprene Seal (1PAC=3M)

219704364

$26.09

37

Was 293200017 Neoprene Seal

219704365

$135.79

38

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

39

RH Mirror

269500687

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

40

Frame Mirror

269500697

Unavailable

41

Housing Support | WAKE

269500807

Unavailable

42

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

43

Hex. Elastic Nut M8

232581600

$1.43

44

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

45

Synthetic Grease, 400 G

293550010

Unavailable

46

Mirror Spring

269500453

$9.15

47

Hex. Elastic Stop Nut M6

232561600

$1.06

48

RH Mirror Shell (Cozumel Green) | Includes 48 - 50. GTI 5522/5523.

269500920

Unavailable

LH Mirror Shell (Cozumel Green) | GTI 5522/5523.

269500923

Unavailable

49

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

50

Hex. Elastic Nut M8

232581600

$1.43

51

RH Mirror Support (Cozumel Green) | GTI 5522/5523.

269500925

Unavailable

LH Mirror Support (Cozumel Green) | GTI 5522/5523.

269500926

Unavailable

52

RH Spacer | LE

269500792

Unavailable

LH Spacer | LE

269500793

Unavailable

53

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

54

Flat Washer 8 mm, Stainless

234082600

$2.27

55

Glue Tube, Loctite 454, 20 G

413708300

$58.18

56

Lower Strorage Cover

269500702

Unavailable

57

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

58

Hex. Nut M6

232061600

$1.04

59

Hex. Flange Screw K40 X 13

241141360

$0.64

60

Was 293200017 Neoprene Seal

219704365

$135.79

61

Latch Ass'y

269700109

$23.10

62

Latch Ass'y

269700109

$23.10

63

Latch Ass'y

269700109

$23.10

64

Latch Spring

269700017

$8.34

65

Hex. Screw M6 X 30

207063060

$1.73

66

Stainless Flat Washer M6

234061600

$0.28

67

Lock Washer Helical M6

234161601

$1.06

68

Loctite 243, 10 ml

293800060

$21.49

69

REAR ARM - Call your local BRP dealership

269500705

Unavailable

70

Hex. Screw M6 X 100

230060060

$6.99

71

Loctite 243, 10 ml

293800060

$21.49

72

Sleeve

269500706

$4.30

73

Rubber Bumper

293830005

$6.12

74

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

75

Flat Washer M6, Stainless

234062600

$0.73

76

Loctite 243, 10 ml

293800060

$21.49

77

Latch

269501487

$14.90

78

HINGE - Call your local BRP dealership

269500338

Unavailable

79

Socket Head Screw M5 X 16

205451660

$1.04

80

Flat Washer 5 mm, Stainless

234052600

$0.73

81

Hex. Elastic Nut M5 | X

232551600

$1.04

82

Pop Rivet 3/16"

204000081

$1.31

83

Flat Washer 5 mm, Stainless

234052600

$0.73

84

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

85

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

86

Stainless Flat Washer M6

234061600

$0.28
