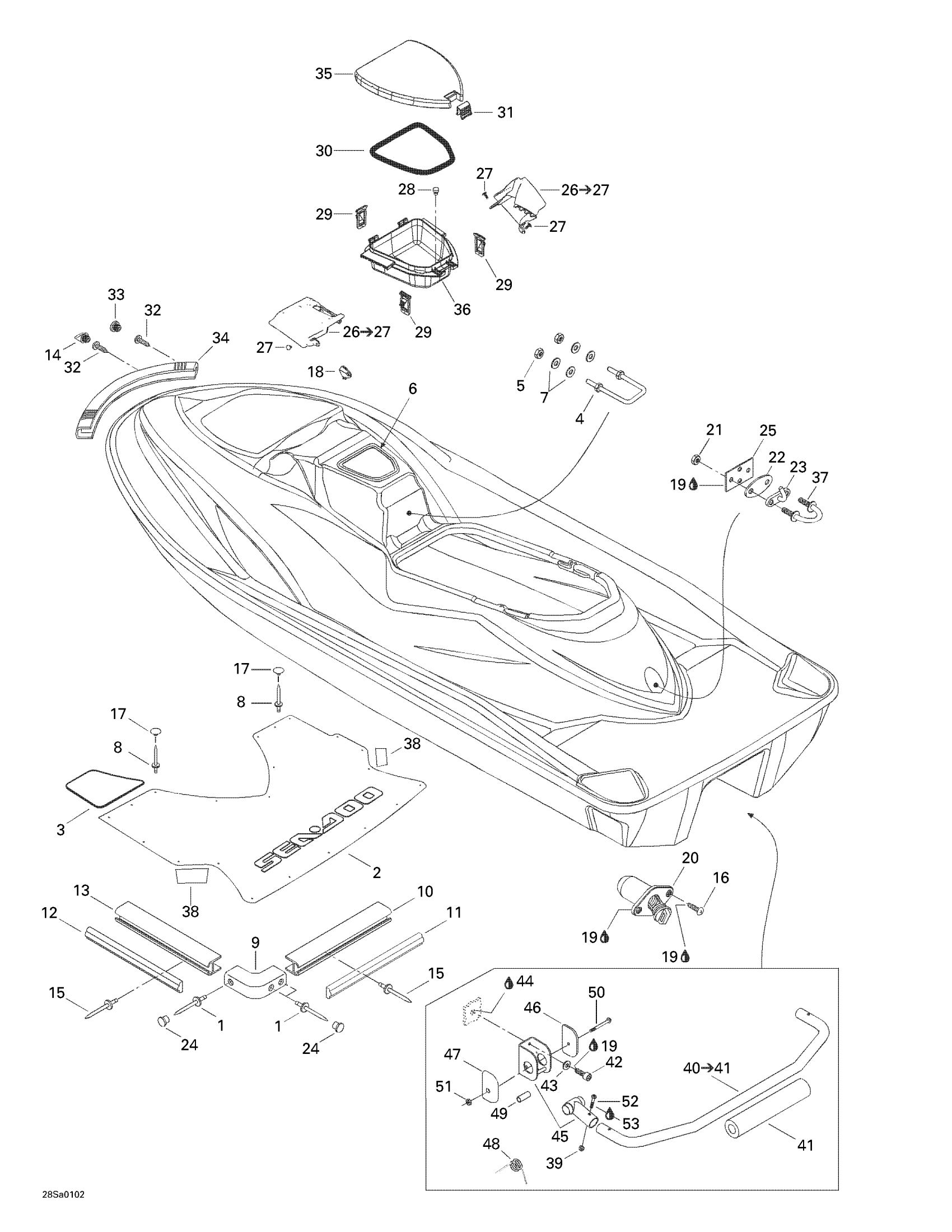

Sea-doo GTI, 5522/5523, 2001 Body, Rear View Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.27

2

Rear Carpet, Black

291001584

Unavailable

3

RH Anti-Skid | STD

291001665

Unavailable

LH Anti-Skid | STD

291001666

Unavailable

4

Seat Bow-Eye

291001527

Unavailable

5

Hex. Elastic Stop Nut M6

232561600

$1.06

6

Was 293250099 Gasket

219704377

$6.69

7

Flat Washer M6, Stainless

234062600

$0.73

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner

291002244

$44.00

10

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

11

REAR BUMPER TRIM, BLACK - Call your local BRP dealership | GTI STD RFI

291001521

Unavailable

12

SIDE BUMPER TRIM, BLACK - Call your local BRP dealership | GTI STD RFI

291001520

Unavailable

13

Black, Side Bumper

204050270

$167.13

14

Bumper Plug, Black

291001040

Unavailable

15

Pop Rivet 3/16"

293150005

$0.46

16

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

17

Black, Snap Cap

293000014

$0.97

18

Spacer | STD

291001730

Unavailable

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

DRAIN ASSY - Call your local BRP dealership

292000685

Unavailable

21

Hex. Elastic Nut M8

232581600

$1.43

22

Black, Finition Plate

291001386

$9.84

23

Hook | Package LTD

291002351

$67.13

24

Bumper Plug, Black

291000339

$2.69

25

RETAINER PLATE - Call your local BRP dealership

291001387

Unavailable

26

RH Grill Ass’Y | Includes 25 to 26

291001649

Unavailable

LH GRILL ASSY - Call your local BRP dealership | Includes 25 to 26

291001650

Unavailable

27

Black Dart

293730010

$0.93

28

Rubber Bumper

293830005

$6.12

29

RETAINER LATCH - Call your local BRP dealership

269500820

Unavailable

30

GASKET - Call your local BRP dealership

293250100

Unavailable

31

LATCH - Call your local BRP dealership

269500719

Unavailable

32

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

33

Bumper Plug, Black

291001519

$4.91

34

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

35

GLOVE BOX DOOR - Call your local BRP dealership

269500928

Unavailable

36

GLOVE BOX - Call your local BRP dealership

269500717

Unavailable

37

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

38

Anti-Skid (White)

291001588

Unavailable

39

Nut M6 | Model-Australie, Brezil, Europe

232361600

$4.13

40

Stair Tube | Includes 28 to 29 / GTI LE RFI

291001691

Unavailable

41

PROTECTOR TUBE - Call your local BRP dealership | GTI LE RFI

292000593

Unavailable

42

Socket Head Screw M6 X 25, Scotch Grip

250000076

$1.60

43

Stainless Flat Washer M6

234061600

$0.28

44

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

45

Support Ass’Y

292000539

Unavailable

46

RH Support Cap

292000540

Unavailable

47

LH Support Cap

292000548

Unavailable

48

RECALL SPRING - Call your local BRP dealership

292000541

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Phillips Screw

211000186

Unavailable

51

NUT-LOCKING 1/4-20 - Call your local BRP dealership

211100061

Unavailable

52

Socket Head Screw M6 X 35

205063560

$2.12

53

Loctite 243, 10 ml

293800060

$21.49
