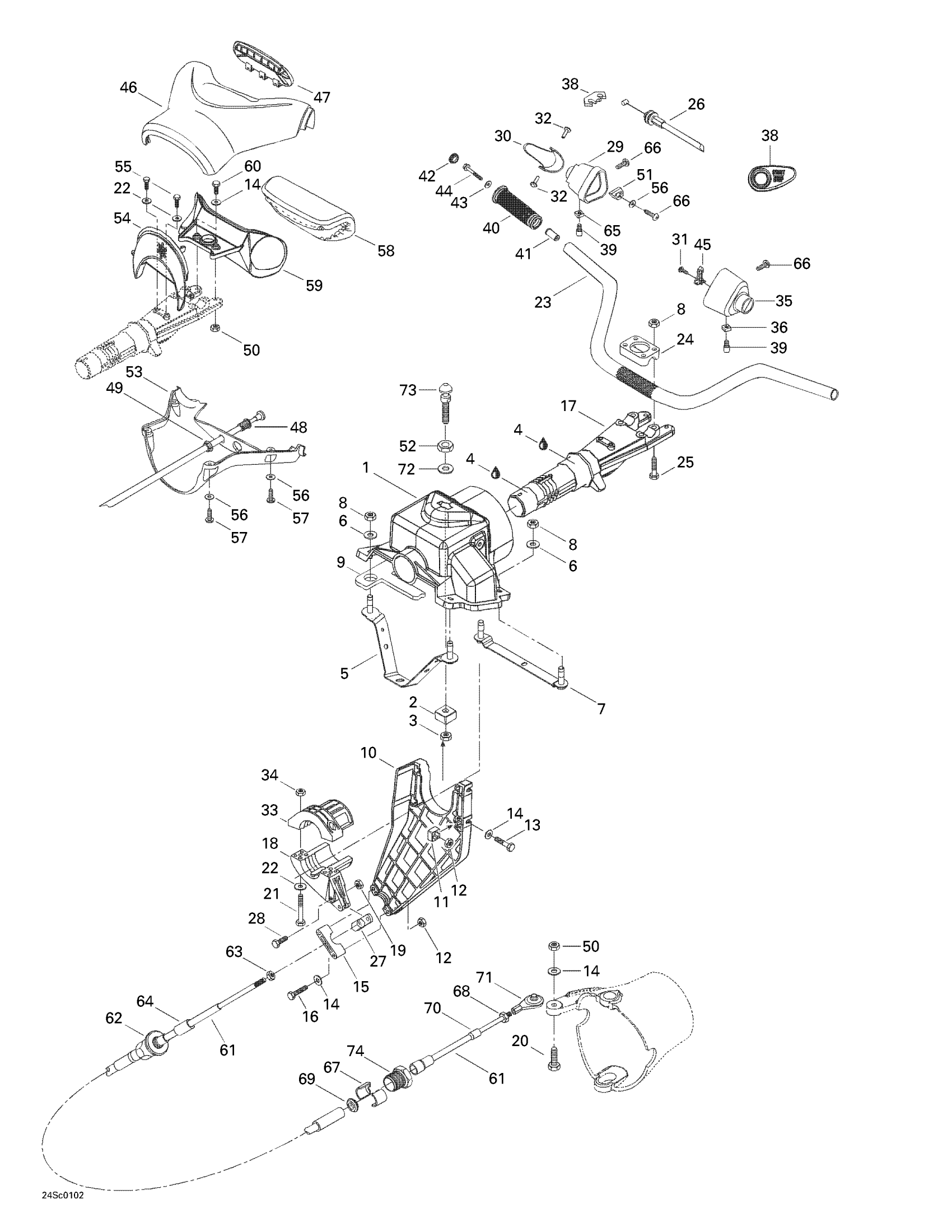

Sea-doo GTI, 5522/5523, 2001 07- Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

2

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

3

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Collector Support

291001614

Unavailable

6

Stainless, Flat Washer 8 mm

234081600

$0.55

7

Steering Support

277001000

Unavailable

8

Hex. Elastic Nut M8

232581600

$1.48

9

GASKET - Call your local BRP dealership

293250171

Unavailable

10

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

11

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

Hex. Forming Screw M6 X 20

207162060

$1.29

14

Stainless Flat Washer M6

234061600

$0.33

15

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

16

Hex. Screw M6 X 50

207065060

$2.22

17

Steering Stem

277000562400

Unavailable

18

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

Hex. Screw M6 X 35

207063560

$2.22

21

Hex. Screw M6 X 25

207162560

$1.47

22

Flat Washer M6, Stainless

234062600

$0.77

23

Handlebar

277000824

Unavailable

24

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

25

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

26

THROTTLE CABLE - Call your local BRP dealership

277000727

Unavailable

27

Ball Joint

277001180

$35.99

28

Hex. Screw M6 X 30

211000081

$3.59

29

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

30

Throttle Handle

277000214

Unavailable

31

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

32

PIN - Call your local BRP dealership

277000381

Unavailable

33

Arm Thrust | Includes 43 to 44

277000519

Unavailable

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

36

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

37

Switch Knob

277000306

Unavailable

38

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

39

Socket Head Screw M6 X 16

250000036

$9.00

40

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Black, Cap

277000203

$9.39

43

Flat Washer M6, Stainless

234062600

$0.77

44

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

45

Retainer Plate

277000845

Unavailable

46

Upper Steering Cover | Includes 32 to 33

277000833

Unavailable

47

Steering Plate | STD

277000823

Unavailable

48

CHOKE CABLE - Call your local BRP dealership | Includes 12 - 16.

270000728

Unavailable

49

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

50

Hex. Elastic Stop Nut M6

232561600

$1.15

51

INSERT - Call your local BRP dealership

293450153

Unavailable

52

Hex. Jam Nut M10

232100600

$2.22

53

LOWER STEERING COVER - Call your local BRP dealership

277000625

Unavailable

54

PLATE - Call your local BRP dealership

277000549

Unavailable

55

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

56

Flat Washer M5, Stainless

234051600

$0.77

57

Hex. Flange Screw K40 X 16

241141660

$1.48

58

Handle Pad (Marine Green) | Includes 58 - 59. GTS 5520/5521.

277000745

Unavailable

Handle Pad (Cozumel Green) | GTI 5522/5523.

277000875

Unavailable

59

Handle Bar Pad Support

277000687

Unavailable

60

Hex. Screw M6 X 30

207063060

$1.89

61

Steering Cable | Includes 38 to 42

277001580

$201.49

62

Ajustment Knob

277000782

$22.99

63

Hex. Nut 1/4"-28

211100056

$0.69

64

Terminal Wiper

277000441

$11.99

65

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

66

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

67

Half Ring

277001527

$10.37

68

Hex. Nut 1/4"-28

211100056

$0.69

69

Rubber Washer

293830063

$1.90

70

Terminal Wiper

277000441

$11.99

71

Ball Joint

277000775

$51.99

72

Flat Washer 10 mm, Stainless

234002600

$2.22

73

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

74

Steering Cable Lock This part replaces 277000784.

277001729

$13.22
