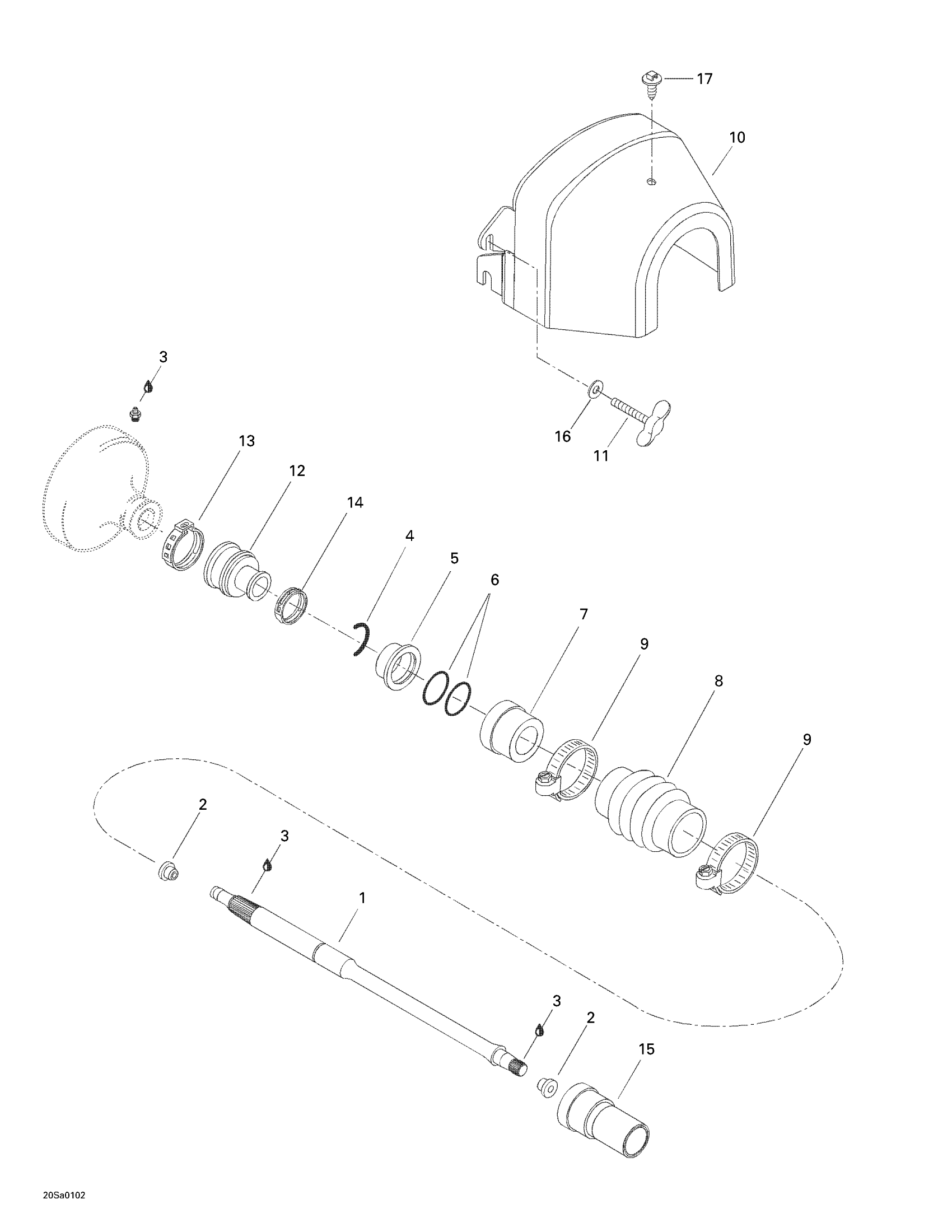

Sea-doo GTI, 5522/5523, 2001 Drive System Diagram

#

Description
Price

1

Drive Shaft

272000096

Unavailable

2

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

3

Synthetic Grease, 400 G

293550010

Unavailable

4

C-CLIP - Call your local BRP dealership

272000135

Unavailable

5

Support Ring

272000064

$66.49

6

O-Ring

293300032

$6.03

7

Carbon Ring

272000770

$45.99

8

BELLOWS - Call your local BRP dealership

272000184

$27.99

9

Norma Clamp

293650075

$11.06

10

Flywheel Guard

272000132

Unavailable

11

Wing Screw M6 X 16

207961630

Unavailable

12

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

13

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

14

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

15

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

16

Flat Washer M6, Stainless

234062600

$0.77

17

Mount Dart

293730040

$1.04
