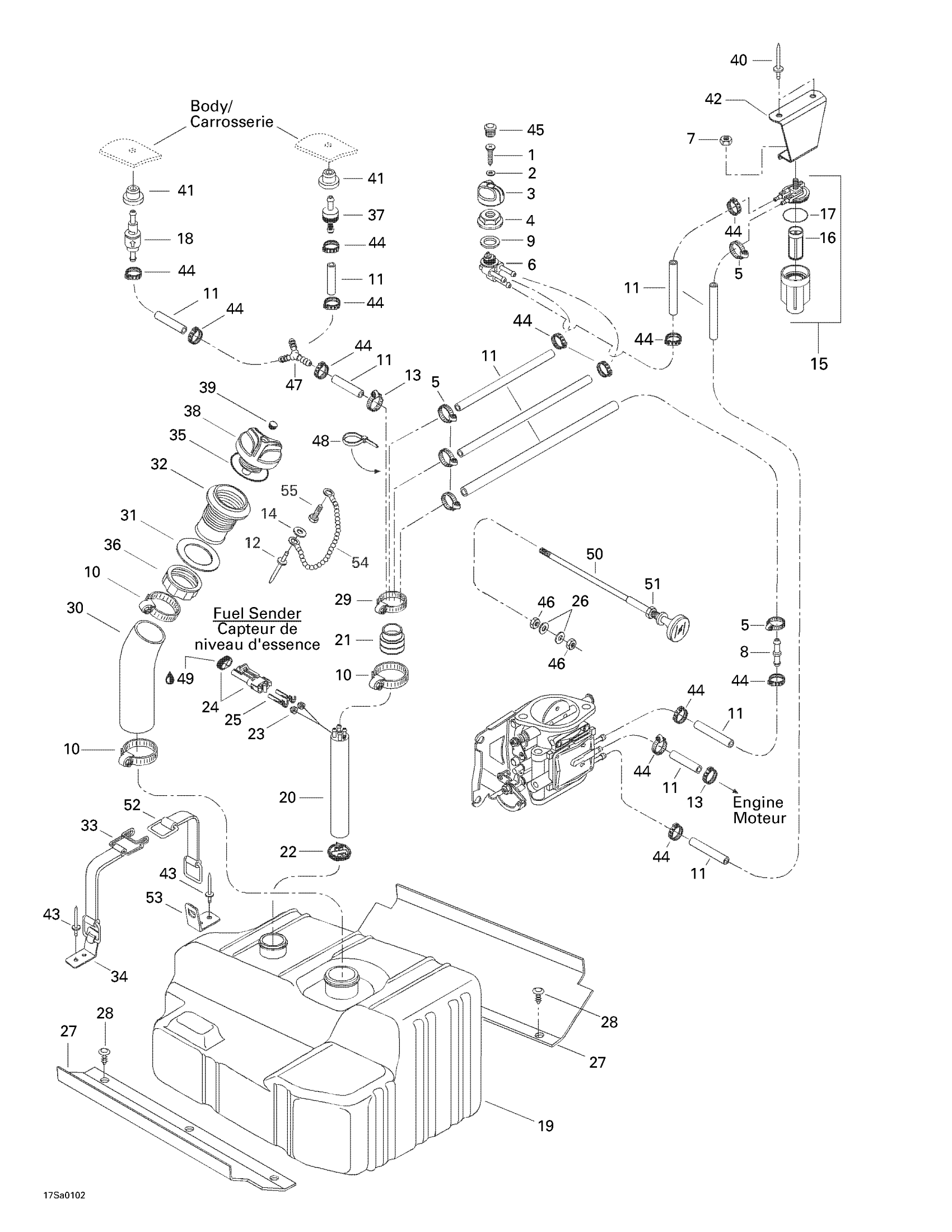

Sea-doo GTI, 5522/5523, 2001 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.52

3

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Tridon Gear Clamp

293650170

$2.00

6

Fuel Valve

275500098

$39.52

7

Hex. Elastic Stop Nut M6

232561600

$1.06

8

Straight Fitting

293710039

$6.75

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$11.37

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Pop Rivet 1/8"

390407900

$1.34

13

Tridon Gear Clamp

293650170

$2.00

14

Flat Washer M3, Stainless

234032600

$0.52

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$39.52

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$7.85

18

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

19

Fuel Tank

275500291

Unavailable

20

Baffle Pick Up | Includes 20 - 22.

275500534

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

$4.00

24

Male Connector, 2 Circuits

278000220

$12.66

25

Female Terminal

278000223

$2.93

26

Stainless Flat Washer M6

234061600

$0.28

27

Rubber Pad

293830077

Unavailable

28

Black, Dart

293730006

$0.93

29

Tridon Clamp

293650035

$6.66

30

Filler Hose Neck

275500520

Unavailable

31

Gasket

293250029

$13.85

32

Filler Neck, Fuel

275500231

$12.40

33

Strap | Includes 33 - 34.

293850064

Unavailable

34

STRAP CLIP - Call your local BRP dealership

293850069

Unavailable

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$11.51

37

Check Valve

275500398

$9.84

38

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$26.09

39

Black, Snap Cap

293000034

$8.58

40

Pop Rivet 3/16"

293150043

$1.85

41

Grommet

293720029

$1.30

42

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.54

44

Oetiker Clamp

293650042

$1.61

45

Black, Cap

275500241

$3.16

46

Hex. Nut M6

232160600

$1.04

47

Y-Fitting

293710059

$9.40

48

Tie-Rap 180 mm

414115200

$0.10

49

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

50

CHOKE CABLE - Call your local BRP dealership | Includes 12 - 16.

270000728

Unavailable

51

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

52

Fuel Tank Strap

293850036

$15.64

53

STRAP CLIP - Call your local BRP dealership

293850069

Unavailable

54

Fuel Cap Chain

275500974

$16.39

55

Screw K40 X 10

241140060

$1.43
