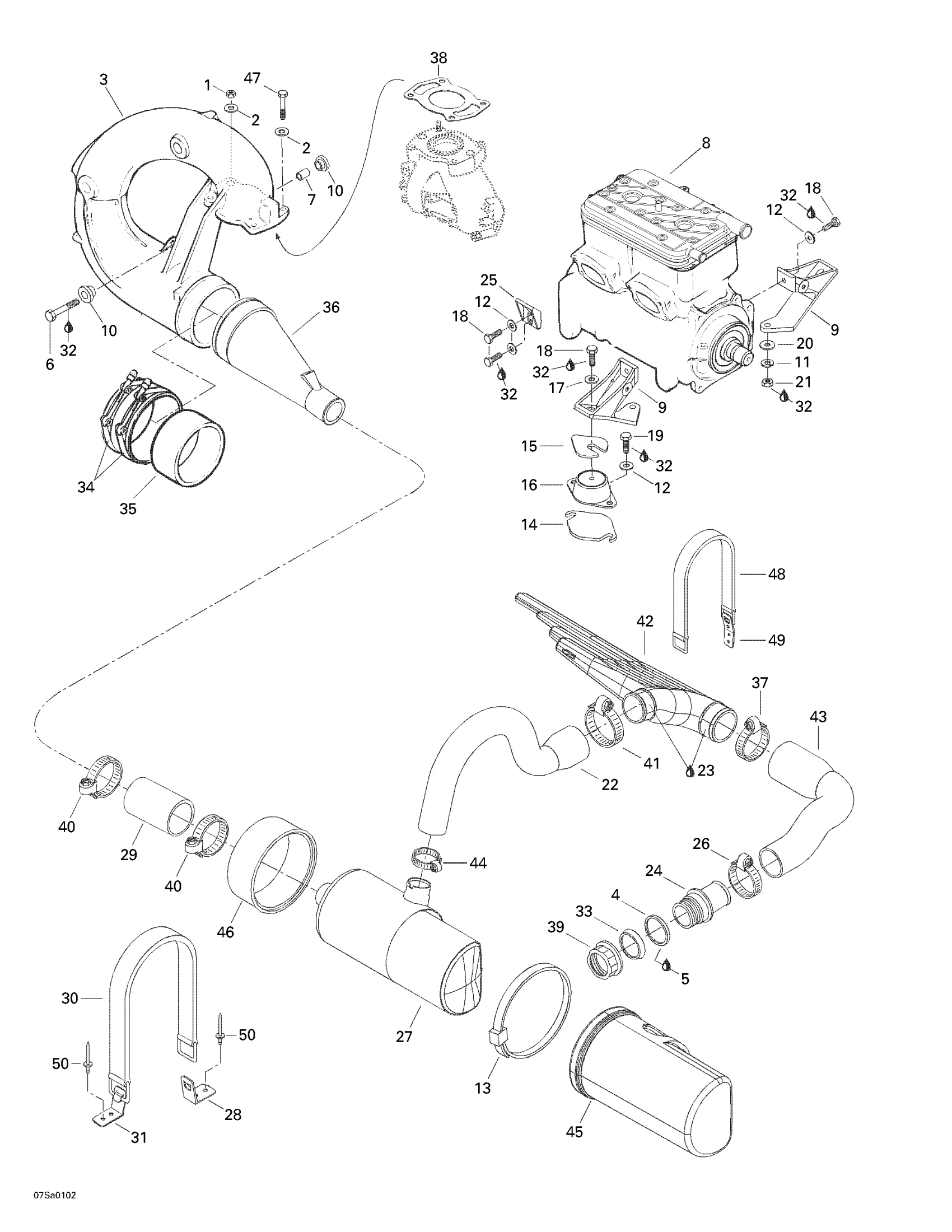

Sea-doo GTI, 5522/5523, 2001 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Tuned Pipe Ass'y | Includes 1 - 4.

274000925

Unavailable

4

GASKET - Call your local BRP dealership

293250041

Unavailable

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

Hex. Screw M8 X 40

207084060

$2.22

7

Bushing

274000114

$8.85

8

Not Available As Spare Part - Friction Washer

Unavailable

9

RH Engine Support

270000180

Unavailable

LH Engine Support

270000181

Unavailable

10

Rubber Bushing

293830031

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

14

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Exhaust Hose

274000873

Unavailable

23

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

24

Exhaust Hose, Outlet

274001391

$29.49

25

Front Engine Support

270000179

Unavailable

26

Tridon Clamp

293650064

$8.29

27

Muffler

274000533

Unavailable

28

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

29

EXHAUST HOSE - Call your local BRP dealership

274000032

Unavailable

30

Fuel Tank Strap

293850036

$18.99

31

STRAP CLIP - Call your local BRP dealership

293850069

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

34

NORMA CLAMP - Call your local BRP dealership

293650068

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Cone Ass’Y

274000488

Unavailable

37

Tridon Clamp

204000079

$9.99

38

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

39

Nut 72 mm

274000224

$16.34

40

Tridon Clamp

293650023

$13.49

41

Tridon Clamp

293650179

$11.49

42

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

43

Hose Exhaust

274000874

Unavailable

44

Tridon Clamp

293650023

$13.49

45

Rear Cover Muffler

274000806

Unavailable

46

Front Cover Muffler

274000803

Unavailable

47

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

48

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

49

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

50

Avdel Rivet 3/16"

293150037

$0.56
