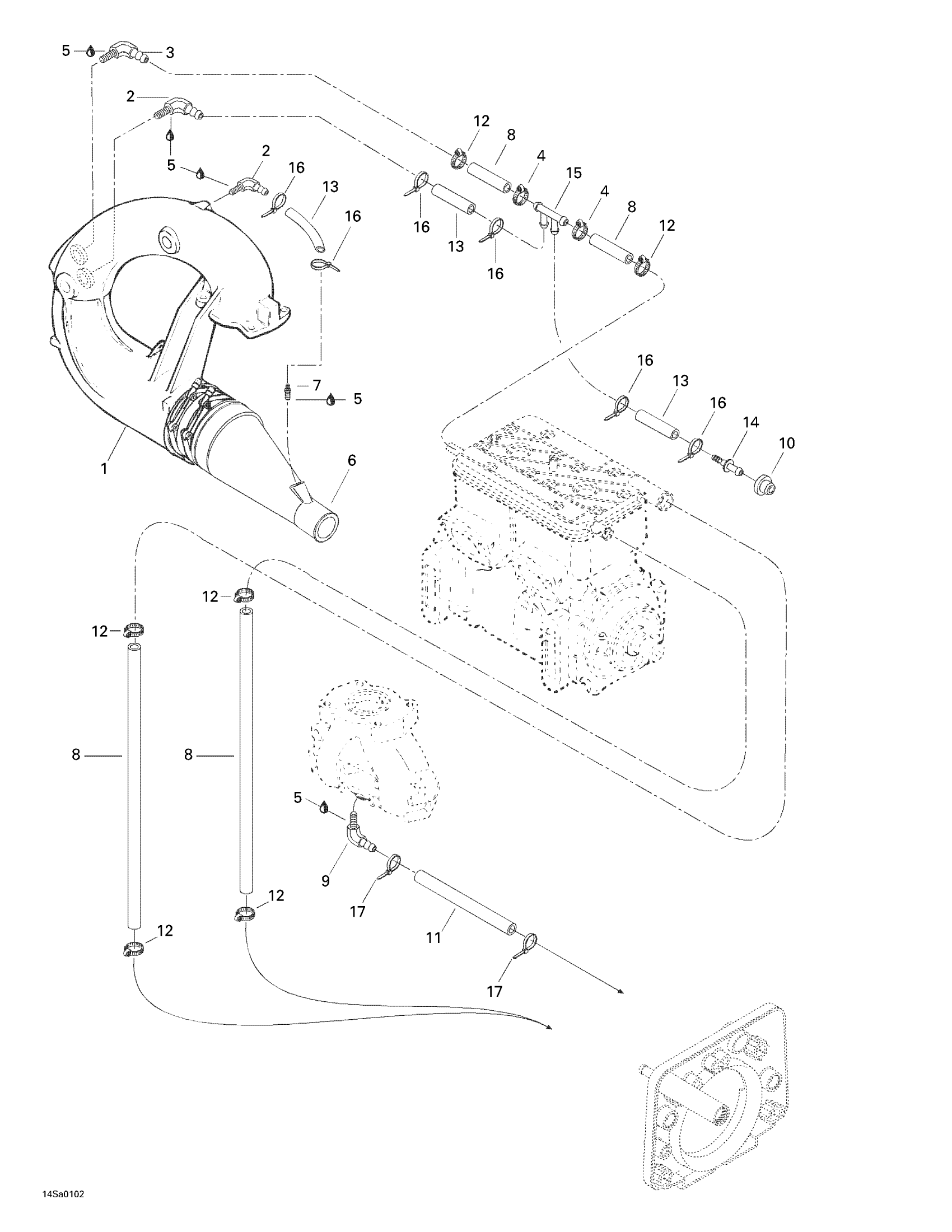

Sea-doo GTI, 5522/5523, 2001 Cooling System Diagram

#

Description
Price

1

Tuned Pipe Ass'y | Includes 1 - 4.

274000925

Unavailable

2

Elbow Fitting 90°

293710018

Unavailable

3

Elbow Fitting 90° | Without Catalyst

293700023

$17.13

4

Oetiker Clamp

293650012

$5.67

5

Was 293800013 Loctite 56765

219704454

$63.40

6

Exhaust Cone Ass’Y

274000488

Unavailable

7

Male Connector

293710037

$8.30

8

Was 276000001 Hose 12.5 mm

219704394

$49.22

9

Elbow Fitting

293700016

Unavailable

10

Grommet

293720029

$1.30

11

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

12

Tridon Gear Clamp

293650172

$3.07

13

Hose 6 Mm 15000Mm Long

219704360

$120.12

14

Straight Fitting

293710039

$6.75

15

DOUBLE ?T? FITTING - Call your local BRP dealership

293710100

Unavailable

16

Tie Wrap 94 mm | 4X4

293750001

$0.96

17

Tie Wrap 142 mm

293750002

$1.01
