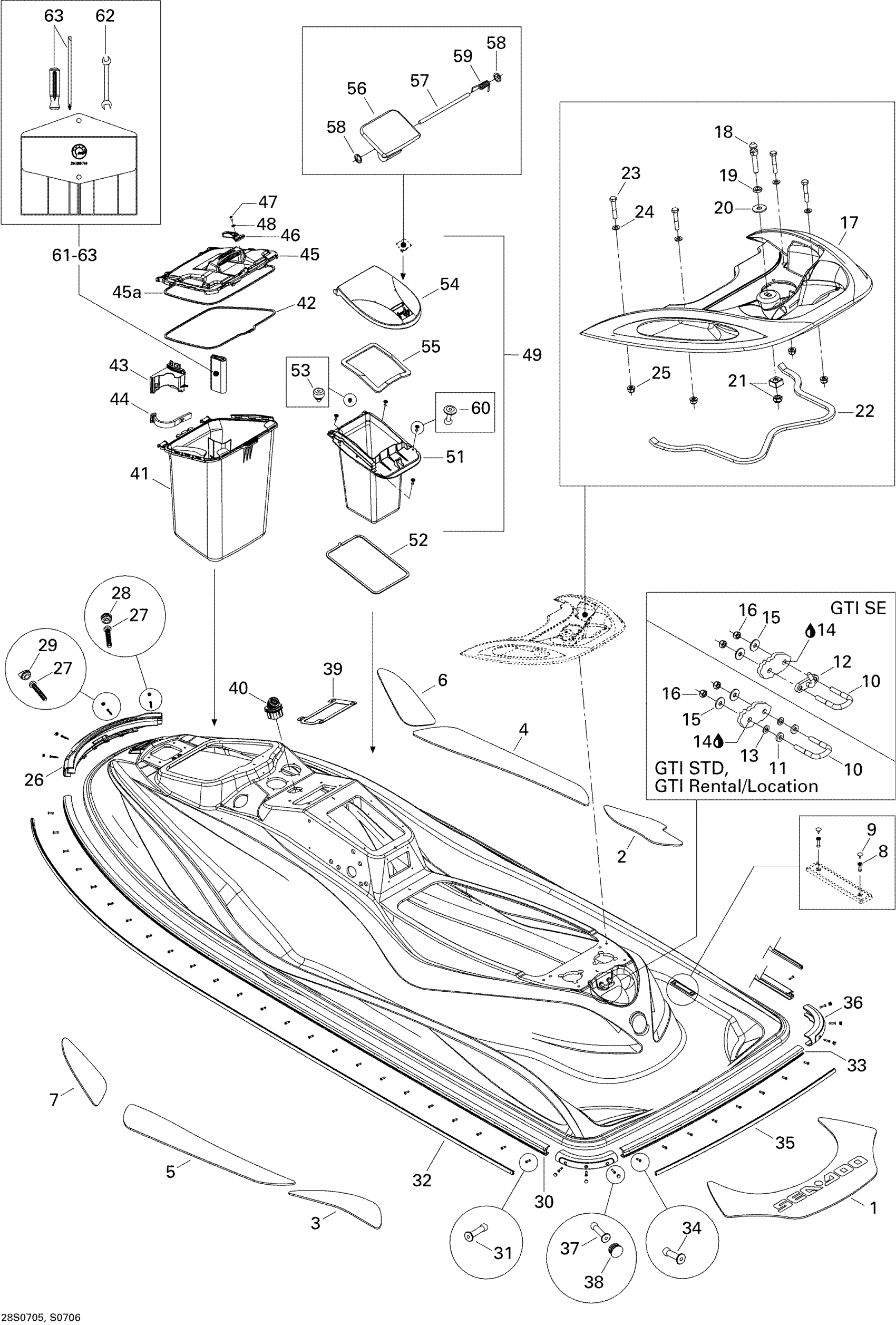

Sea-doo GTI 4-TEC SE, 2007 Body, Rear View SE Diagram

#

Description
Price

1

REAR CARPET - Call your local BRP dealership

291002047

Unavailable

2

RH Center Rear Carpet | GTI SE

291002379

Unavailable

3

LH CENTER REAR CARPET - Call your local BRP dealership | GTI SE

291002378

Unavailable

4

RH Center Front Carpet | GTI SE

291002228

Unavailable

5

LH Center Front Carpet | GTI SE

291002229

Unavailable

6

RH FRONT CARPET - Call your local BRP dealership | GTI SE

291002230

Unavailable

7

LH Front Carpet | GTI SE

291002231

Unavailable

8

Rivet 1/8"

293150016

$0.40

9

Black, Snap Cap

293000014

$1.09

10

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Hook | Package LTD

291002351

$69.99

13

Not Available As Spare Parts

XXX

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$36.99

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

Hex. Elastic Nut M8 Brass

232581200

$2.22

17

REAR HANDLE GRAB - Call your local BRP dealership

291002792

Unavailable

18

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

19

Hex. Jam Nut M10

232100600

$2.22

20

Flat Washer 10 mm, Stainless

234002600

$2.22

21

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

22

Neoprene Seal (1PAC=3M)

219704364

$27.49

23

HEX. SCREW M8 X 45 - Call your local BRP dealership

207184560

Unavailable

24

Stainless, Flat Washer 8 mm

234081600

$0.55

25

Hex. Elastic Nut M8 Brass

232581200

$2.22

26

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

27

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

28

Bumper Plug, Black

291001519

$5.49

29

Bumper Plug, Black

291001040

$7.39

30

Black, Side Bumper

204050270

$179.99

31

Pop Rivet 3/16"

293150005

$0.52

32

SIDE BUMPER TRIM - Call your local BRP dealership

204050271

Unavailable

33

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

34

Pop Rivet 3/16"

293150005

$0.52

35

Black, Rear Bumper Trim - Call your local BRP dealership

204050279

Unavailable

36

Bumper Corner

291002244

$48.99

37

Pop Rivet 3/16"

293150013

$1.37

38

Bumper Plug, Black

291000339

$2.99

39

GASKET - Call your local BRP dealership

293250171

Unavailable

40

GROMMET - Call your local BRP dealership

293720042

Unavailable

41

Storage Tray Ass'y | Includes 38 to 41

269501491

$58.99

42

Gasket 1000Mm Long

219704374

$2.01

43

EXTINGUISHER SUPPORT - Call your local BRP dealership

269501501

Unavailable

44

Strap

269502417

$17.69

45

Storage Tray Cover Ass'y | Includes 42 to 46

269501643

$99.99

45a

Neoprene Seal

293250453

$19.49

46

Storage Tray Cover Ass'y | Includes 42 to 46

269501643

$99.99

47

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

48

Flat Washer 5 mm, Stainless

234052600

$0.77

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

GLOVE BOX - Call your local BRP dealership

291002531

Unavailable

52

GASKET - Call your local BRP dealership

291002251

Unavailable

53

Rubber Bumper

293830005

$8.09

54

Glove Box Door

291002249

$104.99

55

Gasket

291002250

$16.49

56

Latch, Black

269500553

$21.99

57

Pin

211400008

$9.10

58

Push Nut | Not shown

211100002

$2.19

59

Latch Spring

291000922

$7.39

60

Pop Rivet 3/16"

293150123

$4.29

61

TOOL KIT - Call your local BRP dealership | Includes 43 to 46

294000744

Unavailable

62

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

63

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable
