- GTI 4-TEC SE, 2007
05- Propulsion

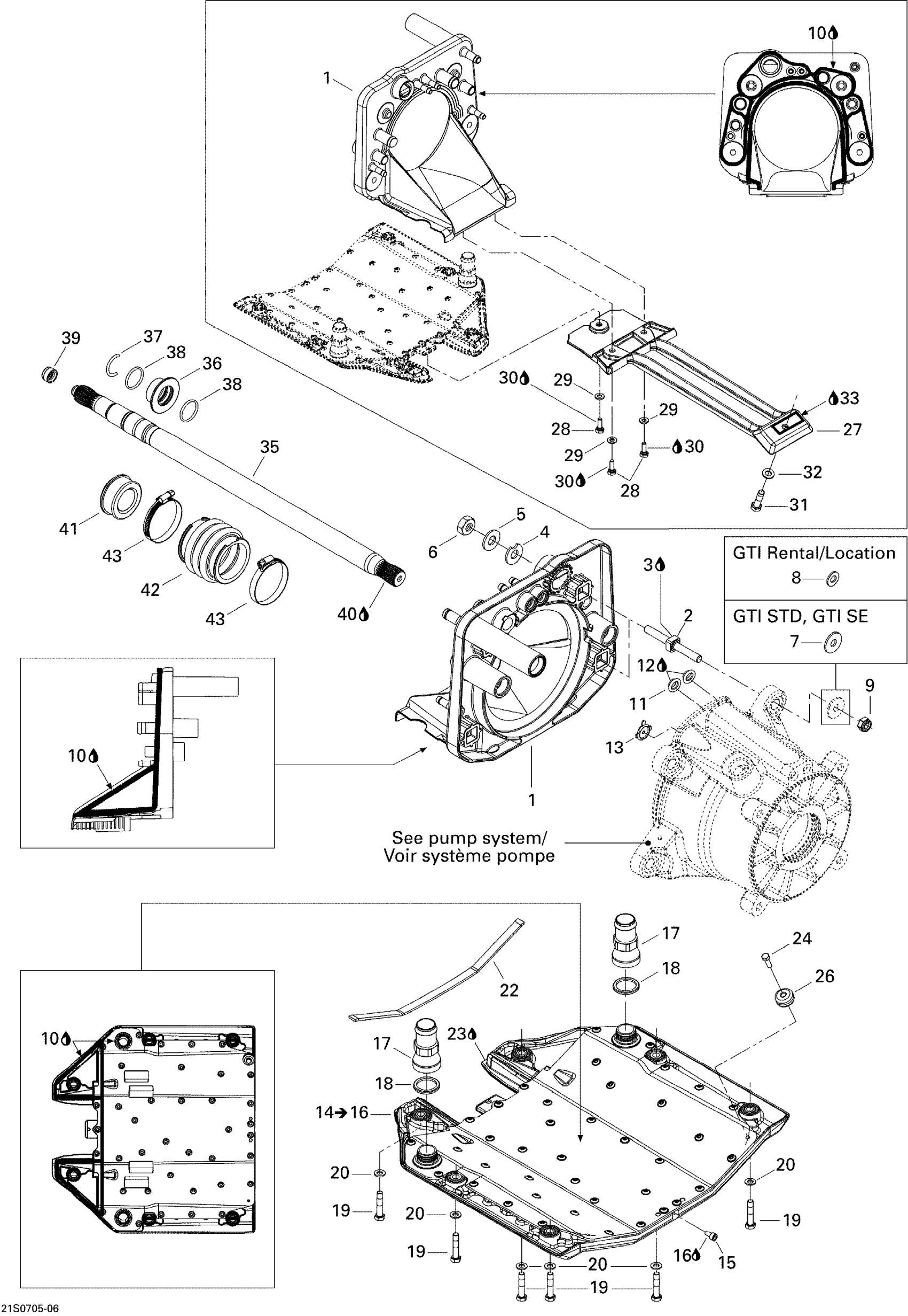

Sea-doo GTI 4-TEC SE, 2007 05- Propulsion Diagram
#
Description
Price
1
Pump Support
271001545
$132.49
2
Square Stud
250300022
$20.99
3
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
4
Shim 0.3 mm
272000053
$11.49
5
Flat Washer 10 mm, Stainless
234002600
$2.22
6
Elastic Stop Nut M10, Brass
232501200
$2.64
7
Flat Washer 10 mm, Stainless
234002600
$2.22
8
Not Available As Spare Parts
XXX
Unavailable
9
Elastic Stop Nut M10, Brass
232501200
$2.64
10
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
11
Watertight Seal
293250084
$7.49
12
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
13
Reducer This part replaces 291001887.
291004649
$17.49
14
Riding Plate Ass'y | Includes 10 to 12
271001649
$275.49
15
Socket Drain Plug M6 X 12
250500005
$16.49
16
Was 293800013 Loctite 56765
219704454
$65.99
17
Straight Plastic Fitting
293710111
$8.47
18
O-Ring
293300121
$8.32
19
Hex. Screw M8 X 40, Scotch Grip
250000230
$2.53
20
Stainless, Flat Washer 8 mm
234081600
$0.55
22
Gasket, Neoprene 2000Mm Long
219704476
$15.36
23
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
24
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
26
Anode Zinc
271001813
$18.99
27
Pump Grate, Black
271001527
$17.99
28
Hex. Screw M6 X 16
207161660
$1.59
29
Stainless Flat Washer M6
234061600
$0.33
30
Loctite 271, 10 ml
293800005
$26.99
31
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
32
Stainless, Flat Washer 8 mm
234081600
$0.55
33
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
35
Drive Shaft This part replaces 271001534.
271001724
$328.49
36
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
37
C-Clip
271001575
$6.11
38
O-Ring
293300044
$1.05
39
Drive Shaft Plug
272000173
$8.68
40
Synthetic Grease, 400 G
293550010
Unavailable
41
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
42
Bellows
272000183
$28.99
43
Norma Clamp
293650077
$7.41
