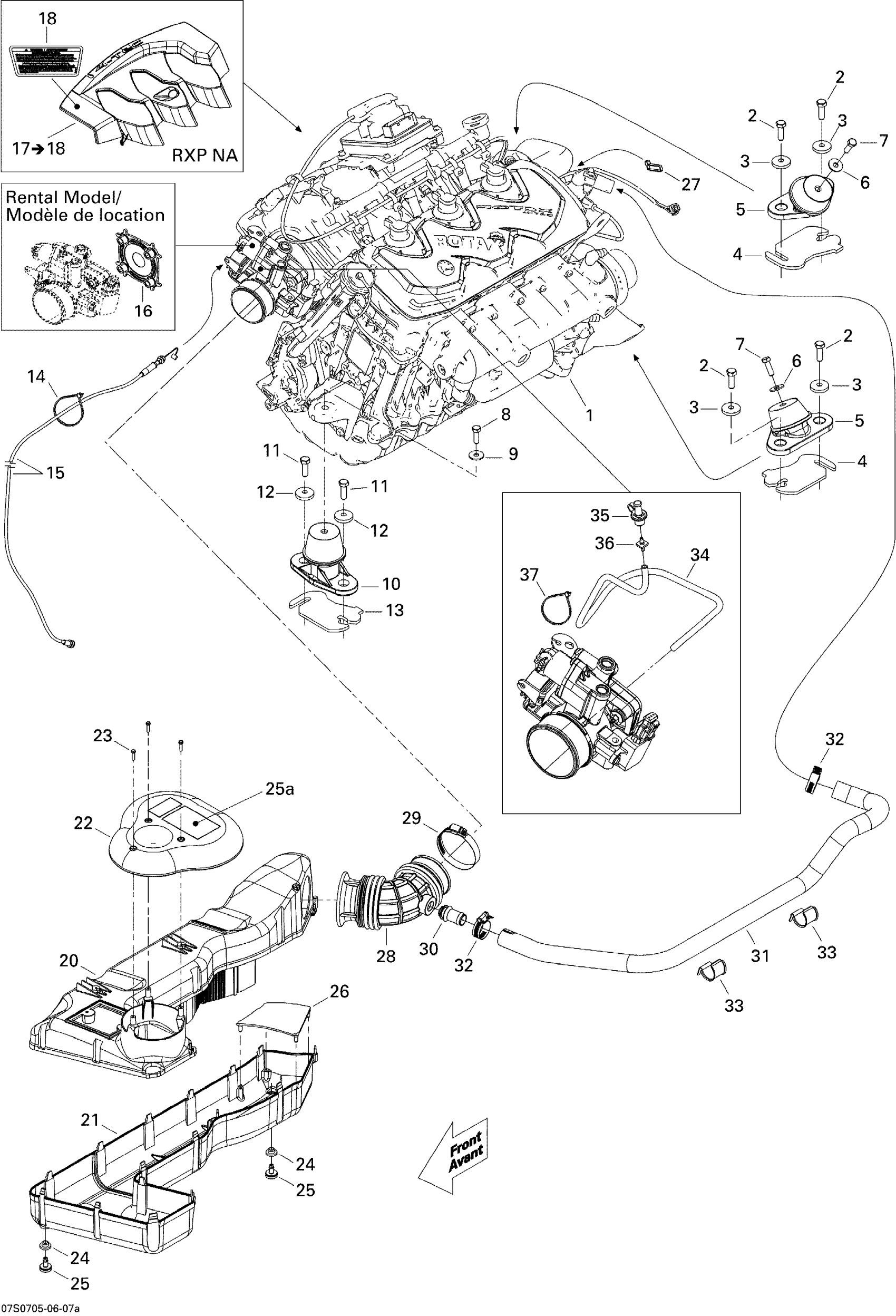

Sea-doo GTI 4-TEC SE, 2007 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 1503 DT

270000687

Unavailable

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

3

Cone Washer

250200018

$5.61

4

Shim 1.3 mm

270000762

$12.99

5

Engine Support Ass'y

270001081

$109.99

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Engine Support Ass'y

270001096

$97.99

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

12

Cone Washer

250200018

$5.61

13

Shim 1.3 mm

270000762

$12.99

14

Tie-Rap 180 mm

414115200

$0.11

15

THROTTLE CABLE - Call your local BRP dealership

277001170

Unavailable

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

20

UPPER AIR SILENCER - Call your local BRP dealership

273000224

Unavailable

21

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

22

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

23

Hex. Flange Screw K40 X 16

241141660

$1.48

24

GROMMET - Call your local BRP dealership

293720064

Unavailable

25

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

25a

Caution Decal, Air Silencer

219902673

Unavailable

26

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

27

Tie Wrap 142 mm

293750002

$1.25

28

INTAKE HOSE - Call your local BRP dealership

270000628

Unavailable

29

Tridon Clamp

293650179

$11.49

30

Breather Valve

273000234

$14.49

31

Formed Hose

270000949

$47.99

32

Tridon Gear Clamp

293650051

$4.19

33

Retainer

275500664

$14.75

34

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

35

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

36

CONNECTOR - Call your local BRP dealership

293710107

$1.09

37

Tie Wrap 142 mm

293750002

$1.25
