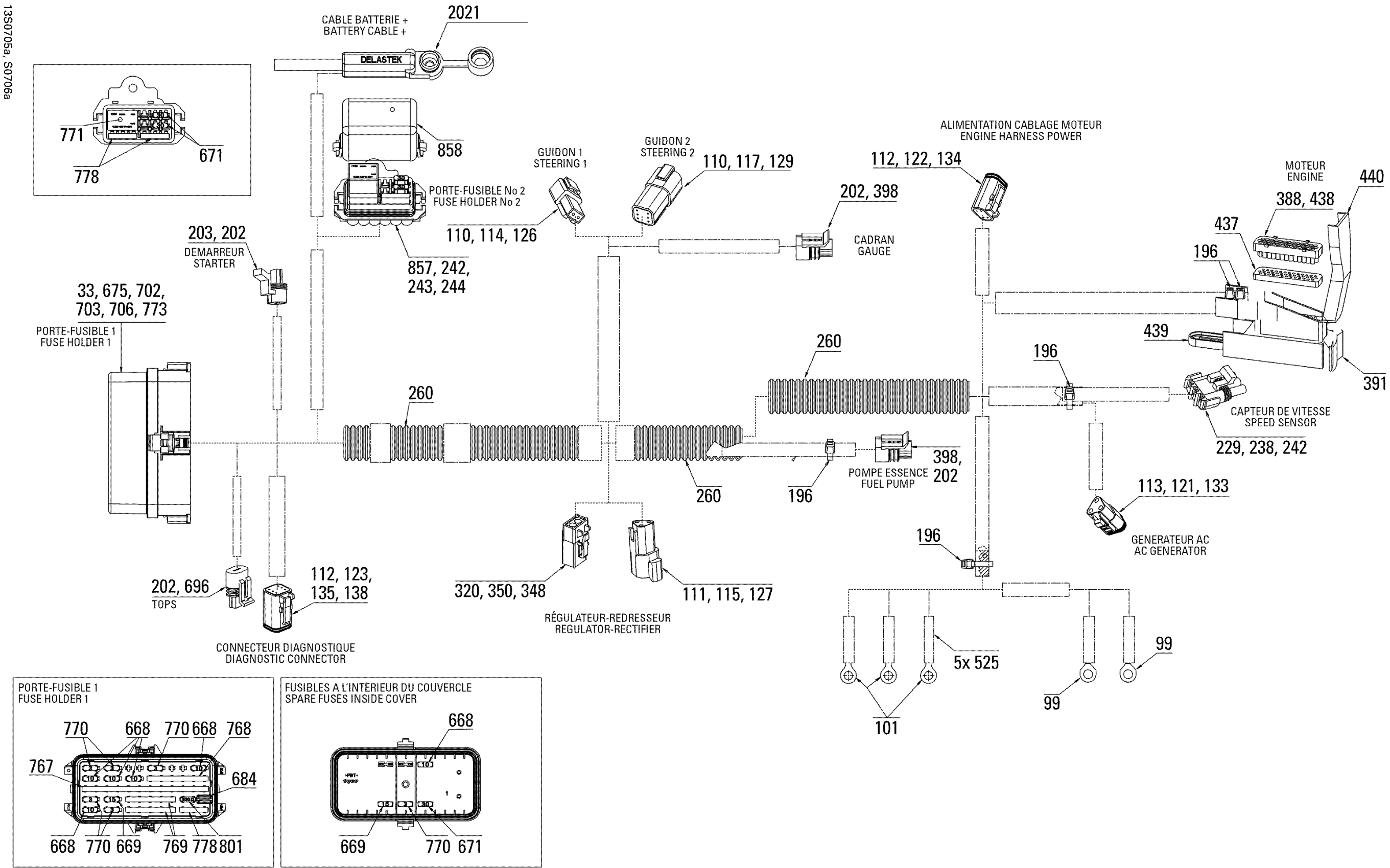

Sea-doo GTI 4-TEC RENTAL, 2007 Electrical Harness 1 Diagram

#

Description
Price

1

WIRING HARNESS REAR - Call your local BRP dealership | Includes 1 to 2021

278002183

$719.99

33

Wire Seal

278000999

$3.19

99

Open Barrel

278000992

$2.21

101

Open Barrel Terminal

278001392

$4.79

110

Male Terminal

278000631

$4.39

111

Male Terminal

515175823

$4.55

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

114

Male Housing, 2 Circuits

409206900

$9.59

115

Male Housing

278002378

$13.99

117

Male Terminal Housing, 6 Circuits

710001539

$19.99

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

122

Male Connector, 4 Circuits | CE

278000739

$19.49

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

126

Male Lock, 2 Circuits

409207500

$3.19

127

Male Lock, 3 Circuits

409207600

$3.19

129

Female Lock, 6 Circuits

278000735

$3.19

133

Female Lock

409207200

$4.39

134

Male Lock, 4 Circuits | CE

278000738

$3.09

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$3.19

196

Tie Wrap 142 mm

293750002

$1.25

202

Female Terminal

278001114

$3.19

203

Male Connector, 2 Circuits

278001113

$16.86

229

Female Terminal

278000223

$3.19

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

244

Wire Seal

278000216

$3.19

260

Was 515175319 Tubing 22 mm

219704423

$14.99

320

Female Terminal

515175567

$7.69

348

Female Terminal Housing, 2 Circuits

278001673

$23.49

350

Female Lock, 2 Circuits

278001671

$3.58

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

668

Little Fuse, 10 Amperes

710000744

$8.79

669

Little Fuse, 15 Ampere

710000745

$8.49

671

Little Fuse, 30 Amperes

710000747

$8.49

675

Fuse Box Base Ass´y

415129856

$50.99

684

Fuse Puller

710000781

$8.09

696

Connector, 3 Circuits

278002064

$25.99

702

Female Terminal

710000836

$5.61

703

Female Terminal

710000837

$5.39

706

Cap

710000840

$5.89

767

Bus Bar

278002165

$8.79

768

Bus Bar

278002165

$8.79

769

Bus Bar

278002165

$8.79

770

Little Fuse, 3 AMP

710001008

$3.79

771

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

773

Fuse Cover

710001026

$21.99

778

Bus Bar

278002165

$8.79

801

RESISTANCE 500 OHMS - Call your local BRP dealership

278002188

Unavailable

857

Fuse Box Ass'y

278002285

$28.49

858

Fuse Box Cover

278002286

$27.49

2021

Battery Cable

278002163

$63.49
