Description

Price

1

Oil Pump Housing

420812723

$116.49

2

Plug Screw M10 X 1

420641323

$14.28

3

Oil Pump Shaft

420837543

$61.49

4

Oil Pump Rotor 16 mm

420956675

$36.99

5

Oil Pump Cover

420811851

$33.99

6

Torx Flange Screw M6 X 16

420641048

$2.96

7

Oil Sieve

420856520

$26.49

8

Oil Suction Pump Gasket | Included in gasket kit

420631486

$10.33

9

Torx Flange Screw M6 X 25

420641238

$3.27

10

OIL FILLER TUBE ASS'Y - Call your local BRP dealership | Includes 9 to 10

420856511

$38.99

11

Gasket

420430240

$4.44

12

Torx Flange Screw M6 X 45

420641198

$4.12

13

Plug Cover, Yellow

420956923

$23.49

14

Retaining Band

420660620

$7.41

15

Loctite 243, 10 ml

293800060

$21.49

16

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

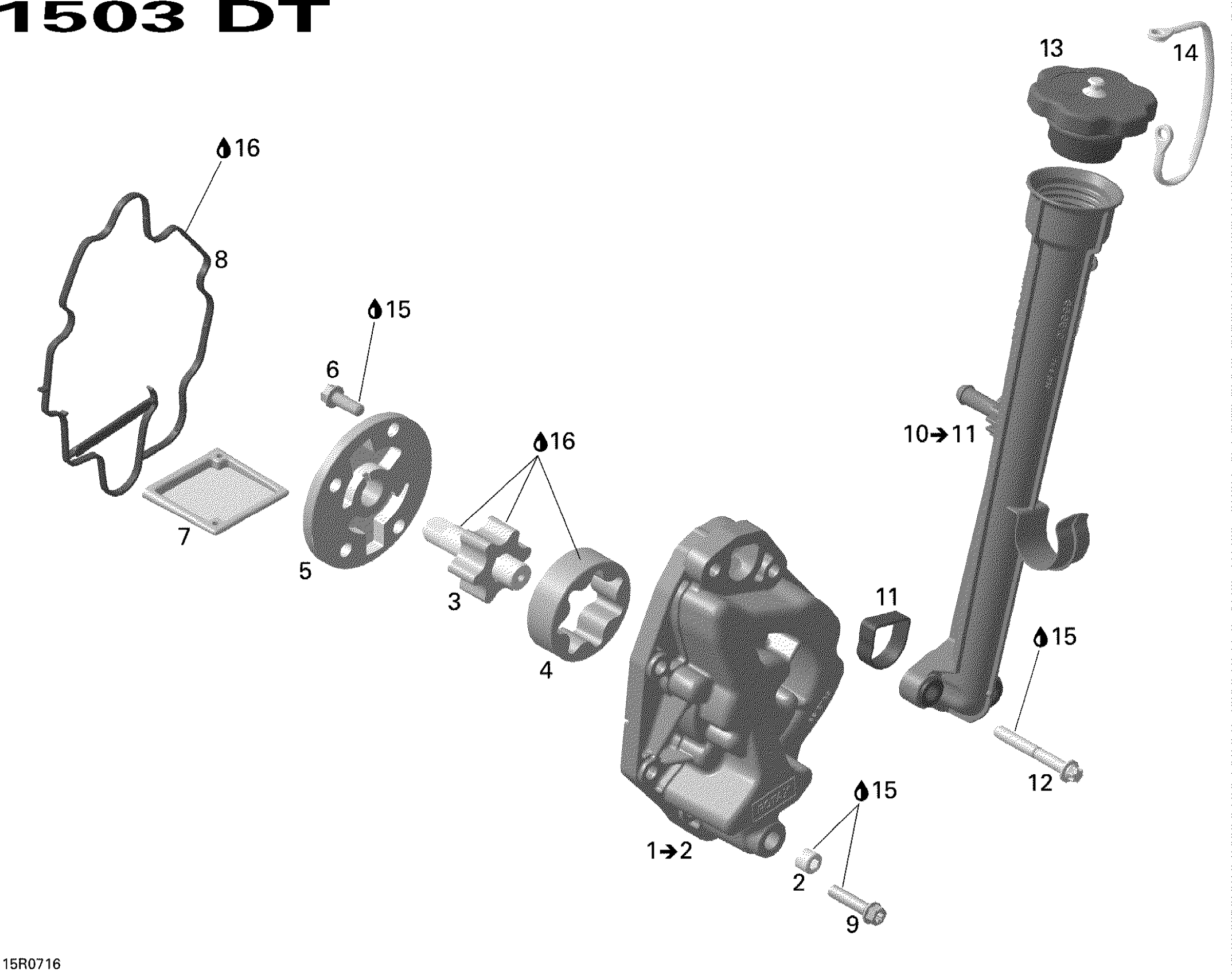

Sea-doo GTI 4-TEC RENTAL, 2007 Oil Separator Diagram
