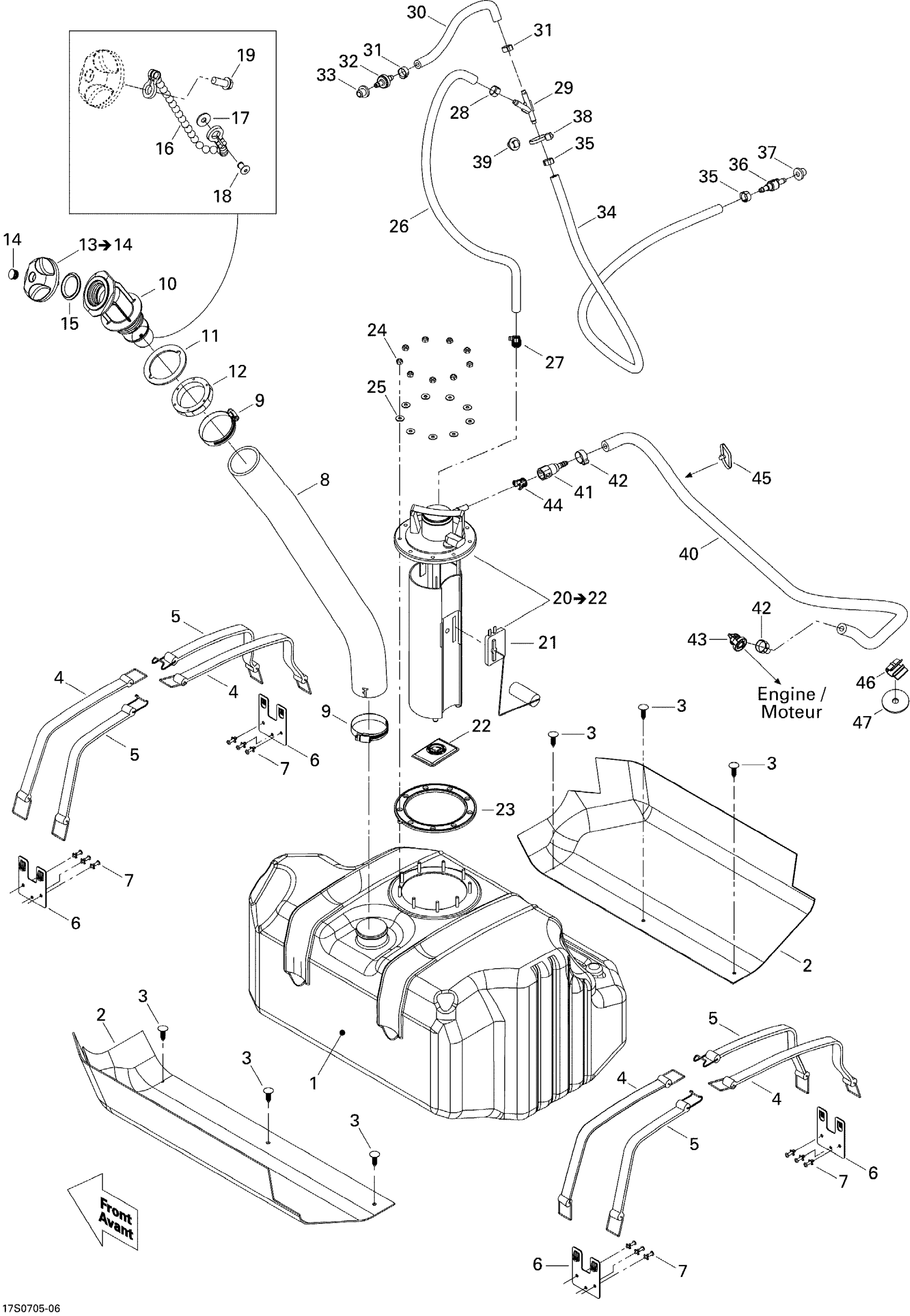

Sea-doo GTI 4-TEC RENTAL, 2007 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500675

Unavailable

2

RUBBER PAD - Call your local BRP dealership

293830094

Unavailable

3

Black, Dart

293730011

$0.99

4

Fuel Tank Strap

293850093

$21.99

5

Fuel Tank Strap

293850094

$22.49

6

STRAP CLIP - Call your local BRP dealership

293850066

Unavailable

7

Pop Rivet 3/16"

293150043

$2.09

8

FUEL FILLER NECK HOSE - Call your local BRP dealership

275500786

Unavailable

9

Tridon Clamp

293650023

$13.49

10

FILLER NECK - Call your local BRP dealership

275500803

Unavailable

11

Gasket

293250029

$14.82

12

Filler Neck Nut, Fuel

211100012

$14.22

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

14

Black, Snap Cap

293000034

$9.39

15

Gasket

293250017

Unavailable

16

Fuel Cap Chain

275500507

$17.59

17

Flat Washer M3, Stainless

234032600

$0.55

18

Pop Rivet 1/8"

390407900

$1.49

19

Screw K40 X 10

241140060

$1.48

20

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 47 to 49

270600087

Unavailable

21

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

22

Fuel Filter, Bosch

219700368

$39.99

23

Gasket

293250088

$14.99

24

Elastic Stop Nut 5 mm

232551200

$1.47

25

Flat Washer 5 mm, Stainless

234052600

$0.77

26

Was 275500549 Hose 1/4"

219704357

$194.99

27

Tridon Gear Clamp

293650170

$1.99

28

Oetiker Gear Clamp

293650025

$3.09

29

Y-Fitting

293710059

$9.69

30

Was 275500549 Hose 1/4"

219704357

$194.99

31

Oetiker Gear Clamp

293650025

$3.09

32

Check Valve

275500398

$10.99

33

Grommet

293720029

$1.59

34

Was 275500549 Hose 1/4"

219704357

$194.99

35

Oetiker Gear Clamp

293650025

$3.09

36

Check Valve

275500505

$31.99

37

Grommet

293720029

$1.59

38

Tie-Rap 180 mm

414115200

$0.11

39

Mount Dart

293730040

$1.04

40

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

41

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

42

Oetiker Clamp

293650011

$3.09

43

Elbow Fitting 90°

293710105

$14.22

44

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

45

Tie-Rap 180 mm

414115200

$0.11

46

Hose Retainer

275500528

Unavailable

47

RUBBER WASHER - Call your local BRP dealership

250200028

Unavailable
