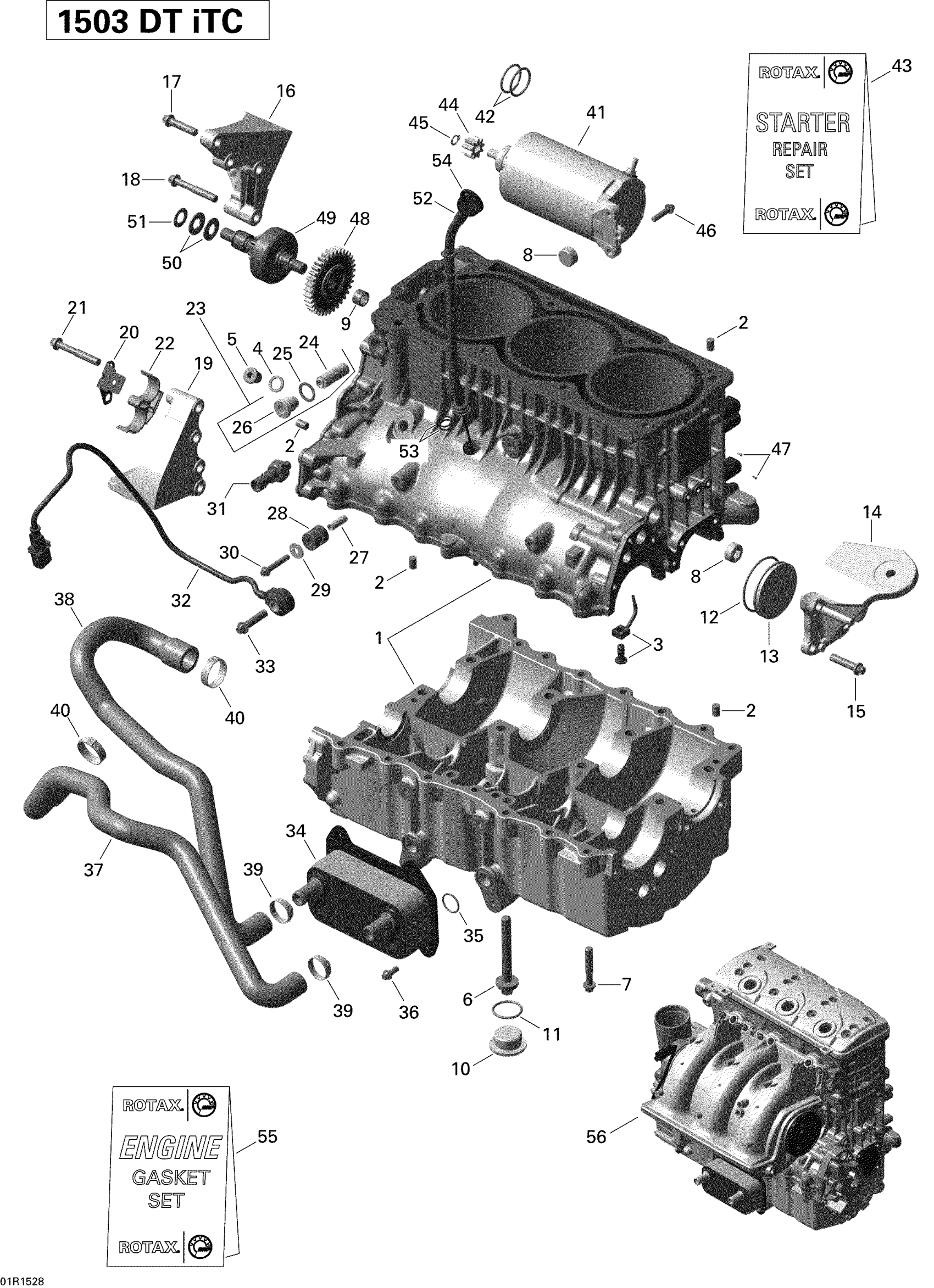

Sea-doo GTI , 2015 Engine Block _01R1528 Diagram

#

Description
Price

1

Cylinder Block With Sleeves | Includes 1 to 9 This part replaces 420892461.

420893511

$2,768.99

2

Center Pin 8 X 12

420632010

$3.52

3

Oil Spray Nozzle This part replaces 420956778.

420956827

$26.09

4

Aluminum Sealing Ring

420250016

$5.06

5

Plug Screw M12

420841923

$14.90

6

Torx Flange Screw M10 X 82

420641120

$7.01

7

Hex. Flange Screw M8 X 45

420641208

$7.09

8

Plug Screw M20 X 1.5

420641317

$12.15

9

Needle Bushing

420232482

$17.88

10

Plug Screw M30 X 1.5

420641171

$17.88

11

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$9.03

12

O-Ring

420430405

$13.18

13

Plug Cover

420660110

$7.01

14

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

Unavailable

15

Torx Flange Screw M8 X 35

420641188

$7.01

16

Engine Bracket PTO, Exhaust

420811788

$66.39

17

Torx Flange Screw M8 X 35

420641188

$7.01

18

Torx Flange Screw M8 X 55

420641213

$7.01

19

Engine Bracket PTO, Exhaust

420811784

$62.66

20

Retaining Plate

420851740

$17.88

21

Torx Flange Screw M8 X 55

420641213

$7.01

22

Hose Bracket

420660290

$14.90

23

Chain Tensioner With Screw | Includes no. 8-11

420236259

$67.13

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Gasket Ring

420430624

$1.73

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Spacer

420847971

$6.99

28

Rubber Bracket

420660090

$3.88

29

Flat Washer M6

420827968

$1.79

30

Torx Flange Screw M6 X 35

420641258

$3.19

31

Oil Pressure Switch

420256919

$46.24

32

Noise Sensor

420664031

$58.18

33

Torx Flange Screw M8 X 35

420641188

$7.01

34

Oil Radiator

420888877

$303.70

35

O-Ring

420250057

$4.00

36

Torx Flange Screw M6 X 16

420641048

$2.82

37

Formed Hose

420922834

$59.67

38

Formed Hose

420922832

$45.49

39

Oetiker Clamp

420851661

$6.55

40

Gear Clamp

420851673

$5.40

41

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

42

O-Ring

420631310

$4.15

43

Carbon Brush Set

420881340

$60.42

44

Starter Gear, 9 Teeth

420834522

$68.63

45

Retaining Ring

420845601

$4.28

46

Torx Flange Screw M6 X 25

420641238

$3.07

47

Grooved Pin

420249073

$1.79

48

Bendix Starter This part replaces 420889872.

420890637

$246.24

49

Bendix Starter This part replaces 420889872.

420890637

$246.24

50

Spring Washer

420238300

$7.01

51

Thrust Washer

420827261

$7.09

52

Oil Level Tube

420956944

$109.67

53

O-Ring

420950810

$14.10

54

Oil Level Gauge

420956932

$24.60

55

Engine Gasket Set

420889773

$520.12

56

ENGINE LONG BLOCK, 1503 DT ETC - Call your local BRP dealership

420150349

Unavailable

56

REBUILD-LONG BLOCK 1503DT - Call your local BRP dealership

421000640

Unavailable

56

REBUILD-BASIC LONG BLOCK 1503DT - Call your local BRP dealership

421000655

Unavailable
