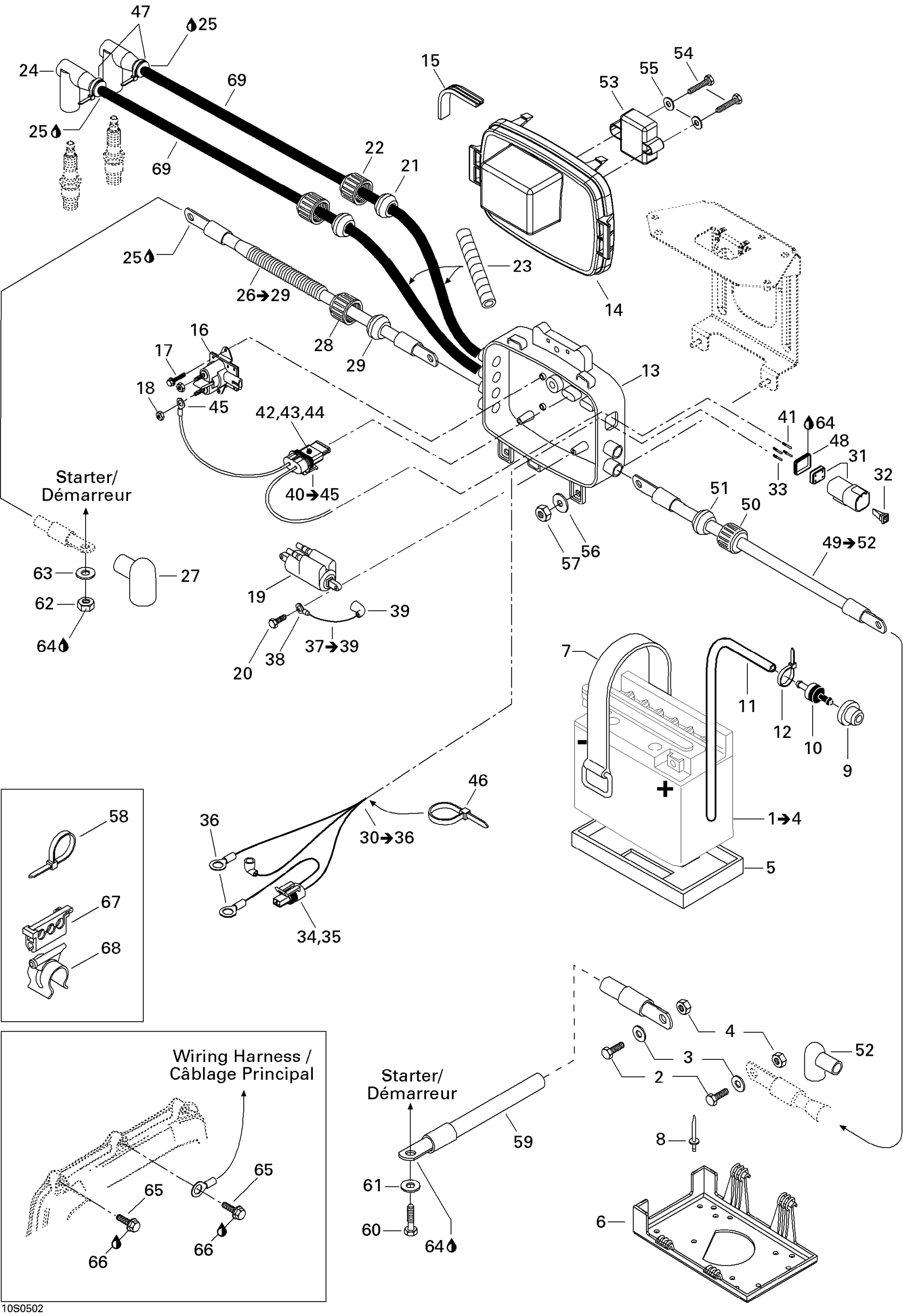

Sea-doo GTI, 2005 Rear Electrical Box Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

$153.36

2

Hex. Screw M6 X 16

207161644

$0.74

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.53

5

LOWER BATTERY PAD - Call your local BRP dealership

278001976

Unavailable

6

BATTERY SUPPORT - Call your local BRP dealership

278001972

Unavailable

7

Retainer Strap

293850097

$11.64

8

Avdel Rivet 3/16"

293150037

$0.56

9

Grommet

293720029

$1.59

10

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

11

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Electrical Box Base

278001712

Unavailable

14

Box Cover

278001785

Unavailable

15

GASKET - Call your local BRP dealership

278001173

Unavailable

16

Starter Relay

278003012

$42.49

17

Hex. Flange Screw M6 X 10

210261040

$1.48

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Ignition Coil

278000383

$99.49

20

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

21

Grommet

278000682

Unavailable

22

Electric Wire Cap

278000100

Unavailable

23

Housing 9 mm, Meter

293100012

Unavailable

24

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

25

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

26

Battery Red Cable | Includes 26 to 29

278001646

Unavailable

27

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

28

Electric Wire Cap

278000100

Unavailable

29

GROMMET - Call your local BRP dealership

278000098

Unavailable

30

Electric Box Harness | Includes 30 to 36

278002086

Unavailable

31

Male Terminal Housing, 6 Circuits

710001539

$19.99

32

Female Lock, 6 Circuits

278000735

$3.19

33

Male Terminal

278000631

$4.39

34

Male Connector, 2 Circuits

278001113

$16.86

35

Female Terminal

278001114

$3.19

36

Open Barrel

278000992

$2.21

37

Ground Harness | Includes 82 - 84.

278000664

Unavailable

38

Ring Terminal

278000300

Unavailable

39

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

40

Fuse Harness 20 Amperes | Includes 40 to 45

278002087

Unavailable

41

Male Terminal

278000631

$4.39

42

Fuse Holder

278001325

$8.79

43

Fuse, 20 Amperes

409003900

$3.28

44

Female Terminal

710000113

$6.99

45

Ring Terminal

278000300

Unavailable

46

Tie Wrap 94 mm | 4X4

293750001

$1.03

47

Tie Wrap 142 mm

293750002

$1.25

48

Gasket

293200055`

Unavailable

49

Red Starter Cable | Includes 49 to 52

278001679

Unavailable

50

Electric Wire Cap

278000100

Unavailable

51

GROMMET - Call your local BRP dealership

278000098

Unavailable

52

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

53

CUT-OFF RELAY - Call your local BRP dealership

278001795

Unavailable

54

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

55

Flat Washer M5, Stainless

234051600

$0.77

56

Flat Washer M6, Stainless

234062600

$0.77

57

Hex. Elastic Stop Nut M6

232561600

$1.15

58

Tie Wrap 142 mm

293750002

$1.25

58

Tie-Rap 180 mm

414115200

$0.11

58

Tie-Rap 173 mm

293750009

$1.04

59

Ground Cable Battery, No. 6, Meter

278001667

Unavailable

60

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

61

Stainless, Flat Washer 8 mm

234081600

$0.55

62

Hex. Elastic Stop Nut M6

232561600

$1.15

63

Stainless Flat Washer M6

234061600

$0.33

64

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

65

TAPTITE SCREW M6 X 25 - Call your local BRP dealership

420841543

Unavailable

66

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

67

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

68

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

69

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
